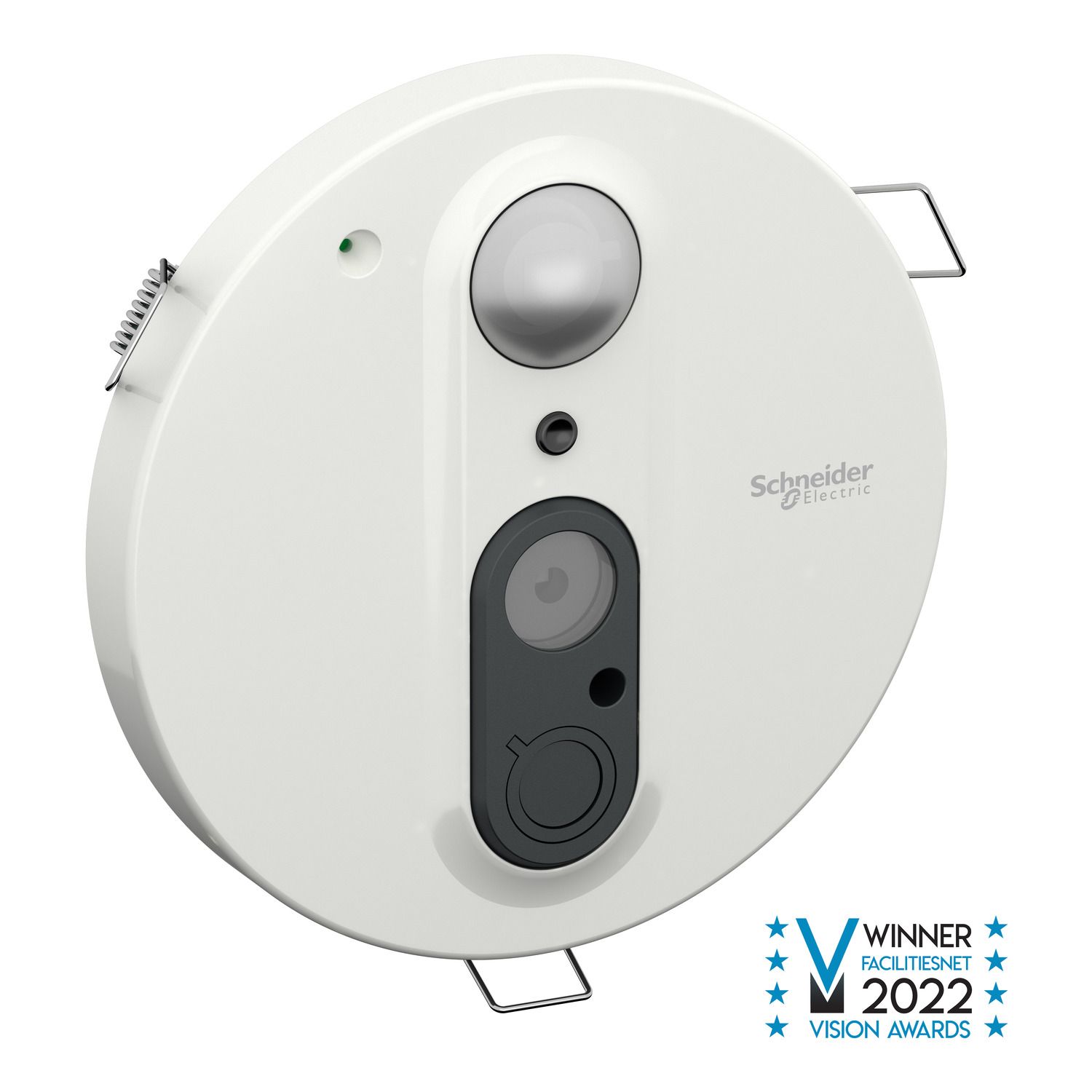

Picture of Insight-sensor, SpaceLogic RP Controller expansion modules
SKU:

SXWREISBLE10001

Insight-sensor, SpaceLogic RP Controller expansion modules

$1,602.48 INC GST
Available for Shipping : 03-Jun-2025
Insight-Sensor and SpaceLogic RP Controller Expansion Modules
  • Designed to seamlessly integrate with SpaceLogic RP Controllers.
  • Offers reliable and efficient sensor solutions for enhanced system performance.
  • Easy to install and configure for diverse applications.
  • Built with a focus on durability and long-term use.
  • Compatible with a wide range of automation and control setups.
  • Ensures accurate and responsive functionality to meet varying system needs.
Be the first to review this product
Manufacturer: Schneider Electric
CAD
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

The SpaceLogic RP-C-EXT-IS-BLE Insight-Sensor (SXWREISBLE10001) is a versatile device combining multiple sensors and Beacon functionality in a single unit. Designed to integrate seamlessly with SpaceLogic RP controllers, it facilitates people counting, motion detection, luminosity measurement, and sound level monitoring. Additionally, it supports Bluetooth Low Energy (BLE) applications, including beaconing and remote control communication. The sensor also monitors temperature and humidity to regulate the dew point.

With dimensions of 97.5 mm (3.84 in.) in diameter and 19 mm (0.75 in.) in external thickness, the device features a UL94 V-0 plastic flame rating and an IP20 ingress protection rating. Its three adaptable mounting brackets enable effortless installation on suspended ceiling tiles, while the included mounting ring allows for setup in open ceiling environments.

The SpaceLogic Insight-Sensor can also pair with RP controller expansion modules to enable connected room solutions for lighting and blind control.

Products specifications

Attribute name Attribute value
Main
Light intensity measurement range 0...10000 lux
Depth 19 mm
Colour cover: white
Humidity measurement accuracy +/- 4 % 20...80 % RH
Measurement temperature 0-50 °C
Relative humidity 20-90 % RH, non-condensing
Sensor type longwave infrared imaging sensor people count, PIR motion, microelectromechanical system (MEMS) microphone sound, ambient light sensor light
Temperature measurement accuracy +/- 1 °C
Ambient air temperature for storage -20-70 °C
Noise measurement 35…79 dBA
Product or component type sensor
Communication port protocol Bluetooth 5.1 low energy
Type of measurement humidity, temperature, sound, light, motion, people count
Humidity measurement range 0...100 % RH
Mounting support ceiling
Embedding depth 20 mm
Range of product SpaceLogic
Diameter 97.5 mm
Ambient air temperature for operation 0-50 °C
Noise measurement accuracy +/- 3dB
[Us] rated supply voltage 24 V DC
Communication network type RS485
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 12.3 cm
Package 1 Length 11.5 cm
Package 1 Weight 152.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.961 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 105.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 32.032 kg
