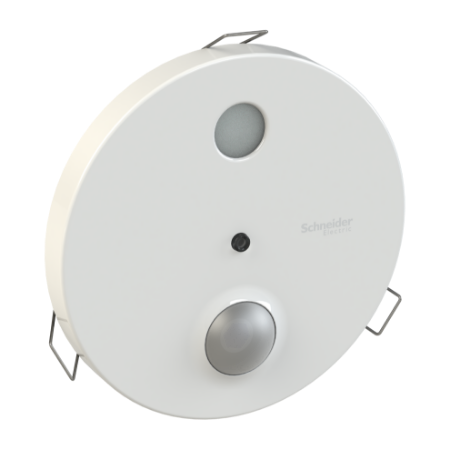

Picture of Multi-sensor, SpaceLogic RP Controller Expansion Modules
SKU:

SXWREMSBLE10001

Multi-sensor, SpaceLogic RP Controller Expansion Modules

$591.00 INC GST
Available for Shipping : 13-Feb-2025
Multi-sensor, SpaceLogic RP Controller Expansion Modules
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
CAD
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet

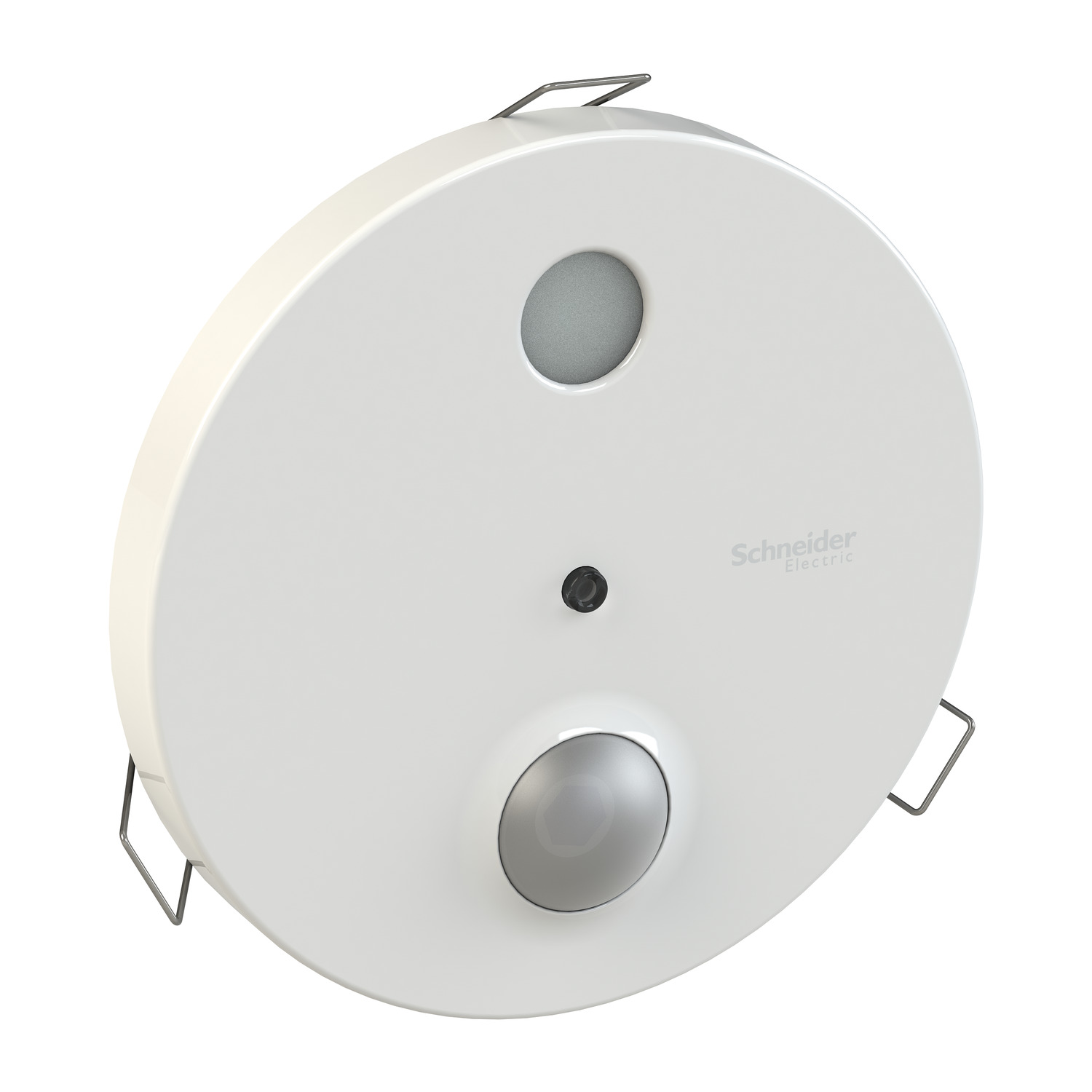

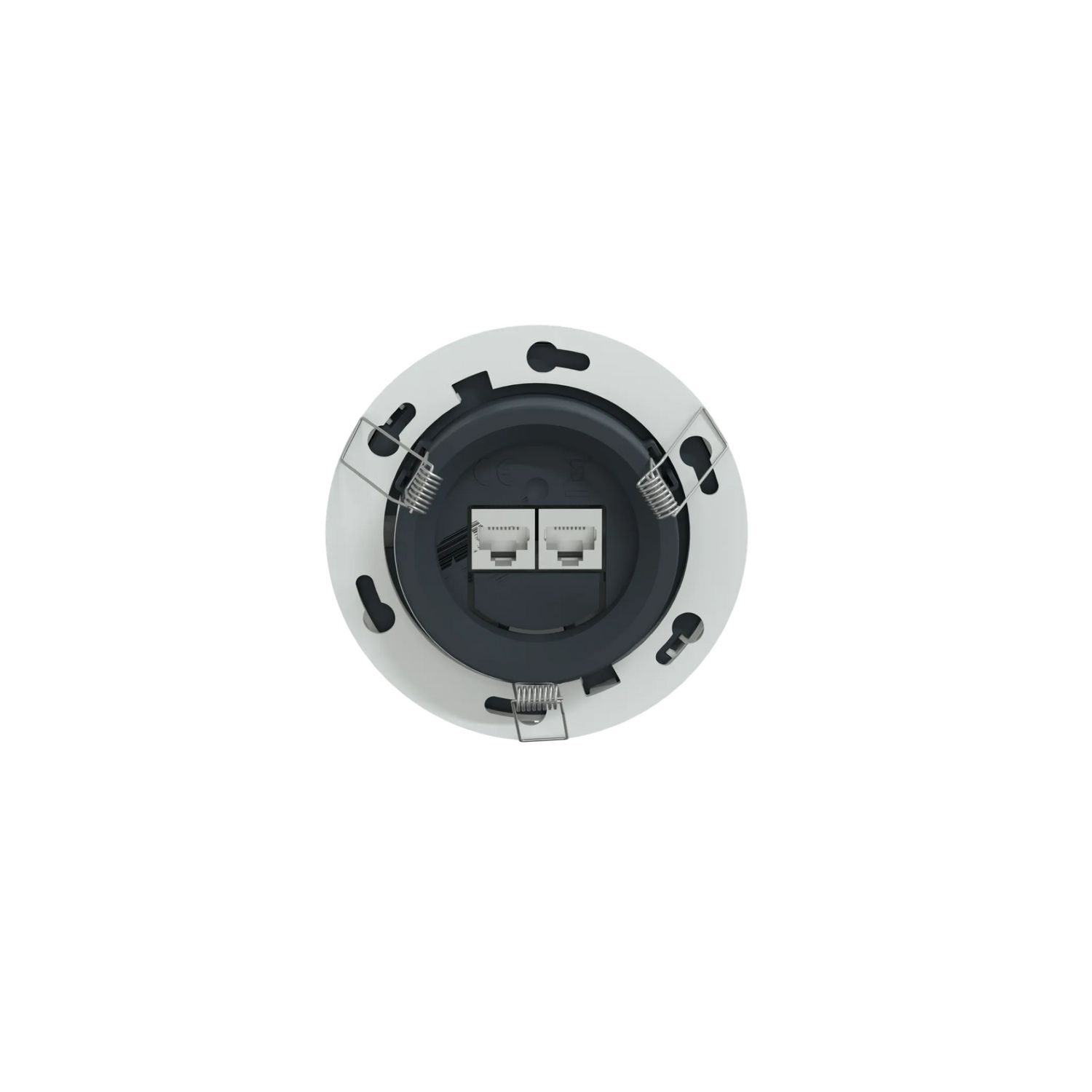

The SpaceLogic RP-C-EXT-MS-BLE is a multi-sensor that connects to the RP controller and for motion detection and luminosity measurements. It connects to the RP-C room controllers and is used for infrared motion detection and luminosity measurements. It supports Bluetooth Low Energy based applications such as beaconing and remote control communication. Its dimensions are 97.5 mm (3.84 in.) in diameter and 19 mm (0.75 in.) in external thickness. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. The multi-sensor's three flexible mounting brackets enable quick and easy installation on a suspended ceiling tile. A mounting ring allows the sensor to be installed on a ceiling with drywall anchors and a 76 mm clearance hole or to a 102 mm junction/gang box. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name RP-C-EXT-MS-BLE
Device application HVAC
Depth 47 mm
Colour white
Local signalling 1 LED status
Relative humidity 20-90 %
Sensor type PIR
Ambient air temperature for storage -20-70 °C
Movement detection area 8 m
Flame retardance UL94-V0
Range EcoStruxure Building Operation
Net weight 83 g
Product or component type occupancy and brightness sensor
Standards FCC ID DVE - wireless, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, UL 2043
Mounting support ceiling
Ambient air temperature for operation 0-50 °C
Communication port support RS485
Power consumption in W 0.3 W
Product brand Schneider Electric
Product certifications UL/cUL listed, CE, FCC, RCM, IC
Complementary
Provided equipment ring, mounting bracket
Lens type fresnel
Material plastic
Fixing mode by brackets
Diameter 97.5 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 12.3 cm
Package 1 Length 11.5 cm
Package 1 Weight 144 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.761 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 46.588 kg
