SKU:

SXWRPV4A10001

Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

$1,160.12

Qty:

Available for Shipping : 10-Dec-2024

Controller, SpaceLogic RP-V, RP-V-4A, BACnet/IP, 4 points, 4 universal inputs

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Declaration of conformity

End of life manual

CAD

Instruction sheet

Product Page Link

Product Data Sheet

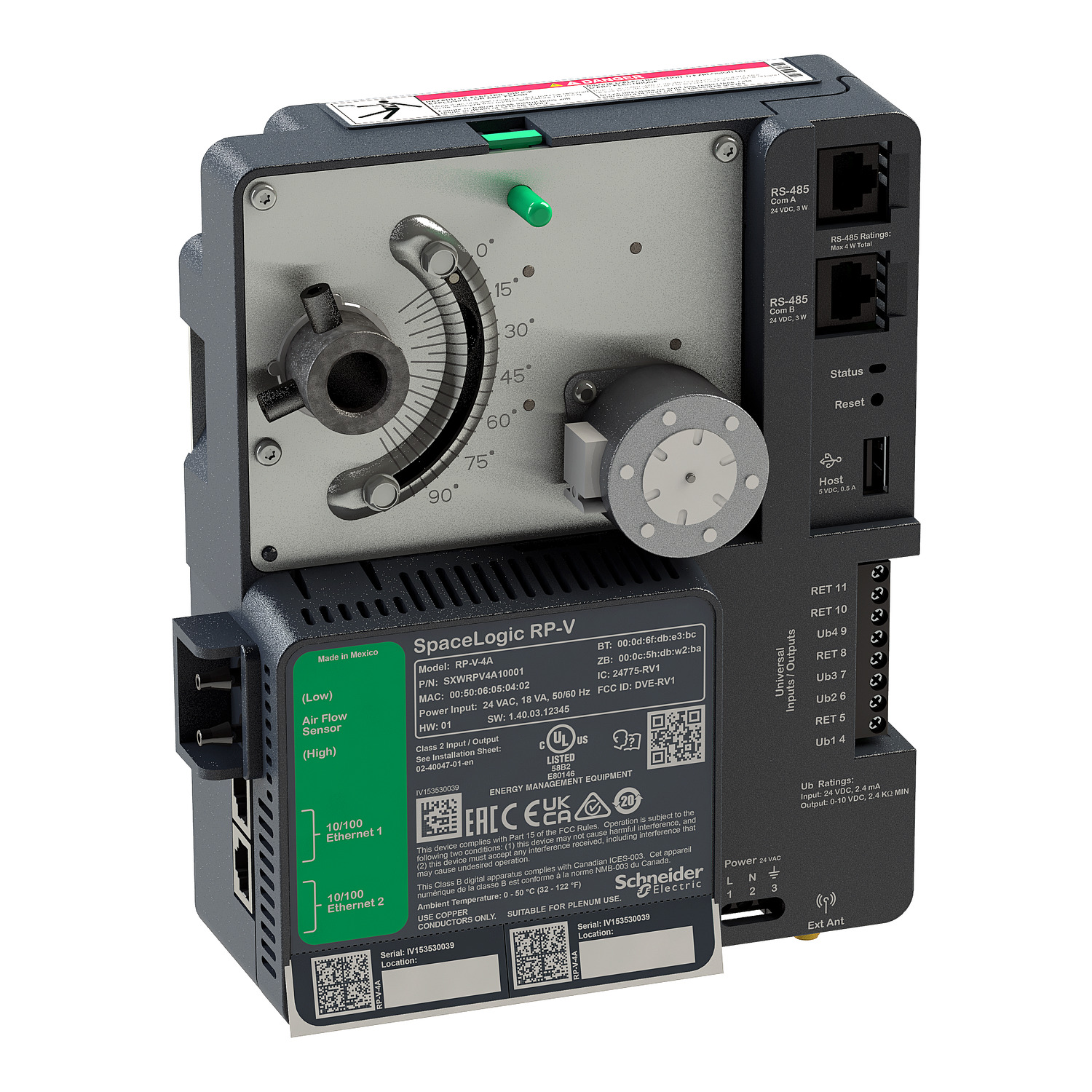

SpaceLogic RP-V controller is a fully programmable, IP based field controller dedicated for VAV applications. It has a built in actuator, air-flow sensor and on-board IO. RP-V also has on-board BLE communication for simple commissioning. It can be extended with light, blind and other CRS modules. RP-V has dual Ethernet ports that can be connected in a ring topology. The RP-V-4A has 4 universal inputs. Its dimensions are 168 mm (6.6 in.) in width, 201 mm (7.9 in.) in height and 65 mm (2.6 in.) in depth. The weight of the product is 1.132 kg (2.496 lb). It is a UL 916 (Open Class Energy Management Equipment) and is approved for plenum installation (UL 2043). The device can be installed directly over the damper shaft of the VAV box. Available spare part is Adapter for damper shaft (AM-135).

Products specifications

Attribute name	Attribute value
Main
Maximum number of I/O expansion module	4
IP degree of protection	IP20
Device short name	RP-V-4A
Device application	variable air volume
Width	168 mm
Input voltage	-0.5...24 V DC for universal input
Product weight	1.132 kg
Relative humidity	0-95 % RH, non-condensing
Power consumption in VA	18 VA
Ambient air temperature for storage	-40-70 °C
Function available	programmable, integrated air flow sensor, integrated actuator
Topology	Rapid Spanning Tree Protocol (RSTP), daisy chain, star
Height	201 mm
Depth	65 mm
Input/output type	4 universal I/O
Product or component type	field controller
Protection type	internal fuse, MOV suppression
Ambient air temperature for operation	0-50 °C
Range of product	SpaceLogic
Communication port support	RS485, USB, ETHERNET 10/100BASE-TX
[Us] rated supply voltage	24 V AC +/- 15 %
Network frequency	60 Hz, 50 Hz
Product certifications	UL listed, cUL listed, CE, RCM
Complementary
Actuator	damper10 N.m 0-90 ° 9.5-12.7 mm
Processor name	flash 48 MB, FRAM 128 kB, ARM Cortex-A7 single core 500 MHz SRAM 6 MB
Flame retardance	UL94-V0
Backup time	7 days +/- 1 min/month
Communication port protocol	Bluetooth 5.1 low energy, BACnet IP
Range compatibility	Connected Room Solution, SpaceLogic AS
Standards	FCC part 15 Subpart B class B, FCC part 15 Subpart C class B, EN 50491-5-2, EN 61000-6-3, UL 2043, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Product brand	Schneider Electric

Output voltage	0...10 V DC for analog output
Range	SpaceLogic
Model	RP-V-4A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10 cm
Package 1 Width	23 cm
Package 1 Length	20 cm
Package 1 Weight	1.225 kg
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	6.44 kg
