Controller, EasyLogic, RP-V, BACnet MS/TP, 2 universal input/output, 3 solid state relay outputs

$982.77 INC GST
Available for Shipping : 14-Jan-2025
Controller, EasyLogic, RP-V, BACnet MS/TP, 2 universal input/output, 3 solid state relay outputs
  • Easy interface with Engage mobile application for user room control
  • Integrated controller with VAV damper actuator and factory calibrated air flow sensor
Manufacturer: Schneider Electric

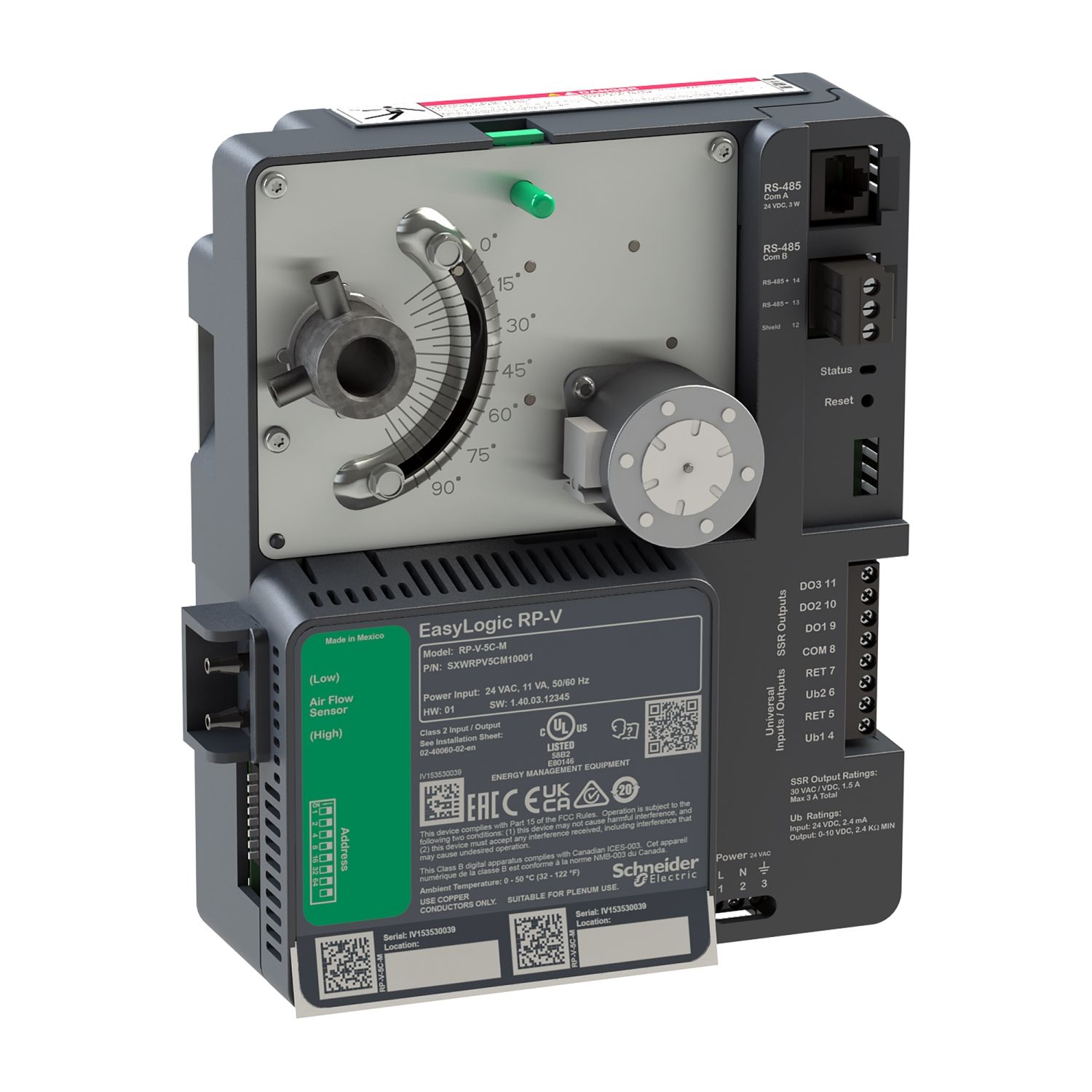

EasyLogic RP-V is a room-purpose, fully programmable, BACnet MS/TP based field controller dedicated for VAV cooling and Heating applications. The RP-V can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The RP-V is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The RP-V is an integrated controller with VAV damper actuator and factory calibrated air flow sensor. The on-board damper actuator has a torque rating of 10Nm, and so is capable of controlling most commercially available VAV boxes. The RP-V-5C has 2 Universal IO Type Ub and 3 Solid-state Relay outputs. Its dimensions are 201 mm (7.9 in.) in height, 168mm (6.6in.) in width and 65 mm (2.6 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be installed directly onto the VAV box damper shaft. Available eCommission Bluetooth Adapter (SXWBTAECXX10001), In-line air filter (01-2100-272) and Adapter for 9.5mm damper shaft (AM-135).

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name RP-V-5C-M
Device application variable air volume
Display type without display
Width 168 mm
Input voltage 0...10 V DC for universal input
Product weight 0.972 kg
Relative humidity 0-95 % RH, non-condensing
Power consumption in VA 11 VA
Ambient air temperature for storage -40-70 °C
Colour black
Mounting mode damper shaft mount
Memory type 32 MB flash, 6 MB internal
Function available smart sensor input, programmable, integrated air flow sensor, integrated actuator
Topology daisy chain
Height 201 mm
Depth 65 mm
Range EasyLogic
Input/output type 2 universal I/O
Product or component type field controller
Protection type internal fuse, MOV suppression
Ambient air temperature for operation 0-50 °C at normal operation
Number of outputs 3 solid-state relay output
Range of product EasyLogic
Communication port support RS485
[Us] rated supply voltage 24 V AC +/- 15 %
Network frequency 60 Hz, 50 Hz
Product certifications UL listed, cUL listed, CE, RCM
Complementary
Actuator damper10 N.m 0-90 ° 9.5-12.7 mm
Product compatibility BACnet field controller
Processor name flash 32 MB,  FRAM 8 kB, ARM Cortex-A7 single core 500 MHz SRAM 6 MB
Flame retardance UL94-V0
Backup time 7 days
Power consumption in VA 11 VA
Communication port protocol BACnet MS/TP
Range compatibility EasyLogic controller
Standards EN 50491-5-2, EN 61000-6-3, UL 2043, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Switching frequency 25 Hz
Product brand Schneider Electric
Output voltage 0...10 V DC for analog output
Range EasyLogic
Model RP-V-5C-M
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 23 cm
Package 1 Length 20 cm
Package 1 Weight 1.202 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.325 kg
