SKU:

SXWSATXXXSLW

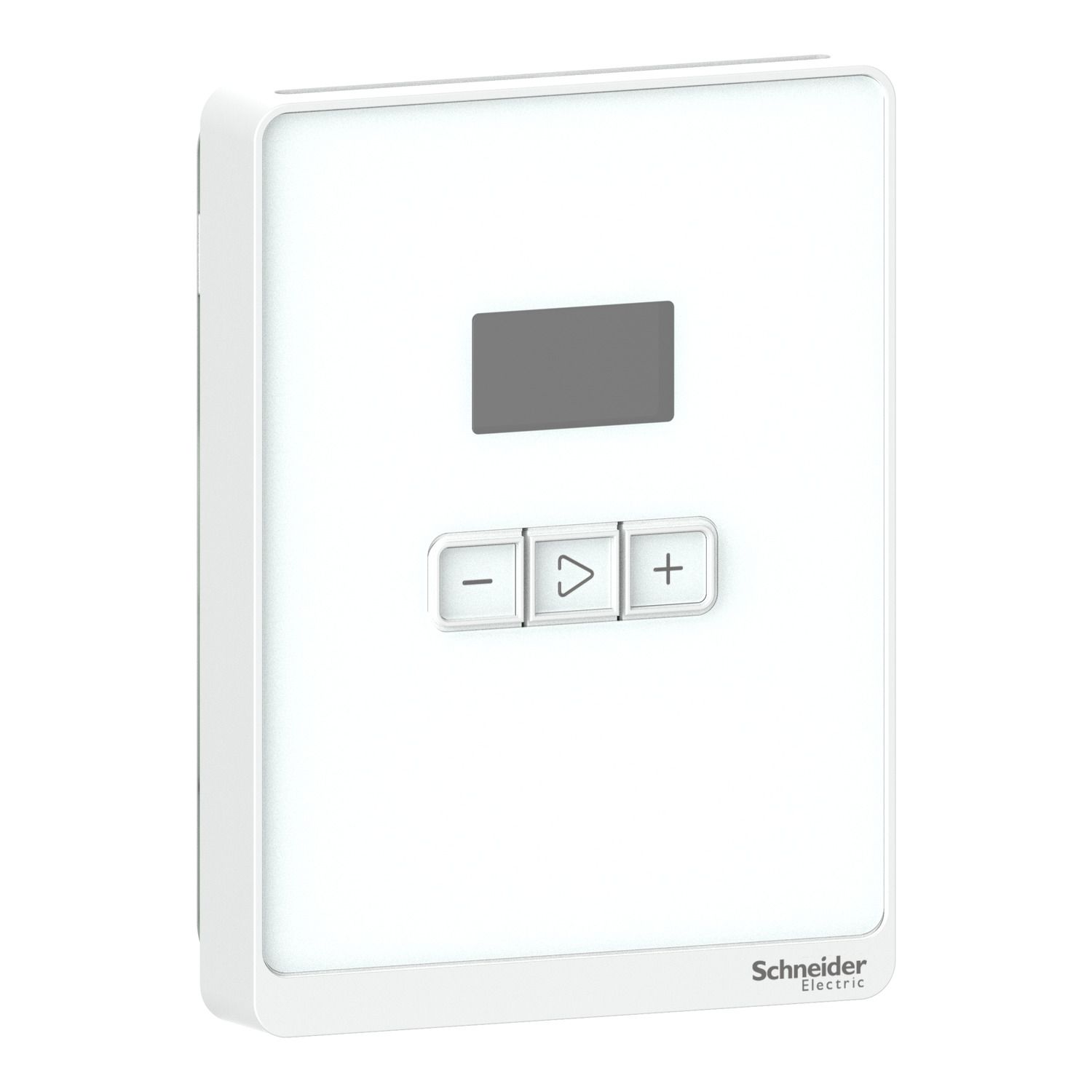

SmartX Temperature Sensor, 3 Buttons/LCD, Setpoint, with Optimum White Cover

$372.60
Available for Shipping : 10-Dec-2024
SmartX Temperature Sensor, 3 Buttons/LCD, Setpoint, with Optimum White Cover
Manufacturer: Schneider Electric
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device application fan speed controller, temperature control, HVAC
Depth 24 mm
Colour white
Width 85 mm
Sensor type transmitter
Relative humidity 0-95 %
Product specific application heating, cooling
Display size 30 x 17 mm
Function available setpoint adjustment, override switches
Flame retardance UL94-V0
Range SpaceLogic
Location living space
Product name SmartX Living Space Sensor
Ambient air temperature for operation 0-50 °C
Product or component type sensor
Type of measurement temperature
Surface finish glossy
Standards FCC part 15 class B, UL 916
Height 115 mm
Complementary
Material ABS (acrylonitrile butadiene-styrene)
Max power consumption in W 2 W
Control type present/absent symbol button, - button, + button
[Us] rated supply voltage 24 V DC
Device presentation complete product
Local signalling 1 red, green and blue LED modulating , function: heating or air-conditioning application
Display type LCD display
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Communication port support RJ45
Information displayed heating/cooling symbol, operating mode, temperature
Environment
Temperature setting range 0-50 °C
Product certifications ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Measurement range 0...50 °C temperature
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.7 cm
Package 1 Length 14.0 cm
Package 1 Weight 80.0 g
