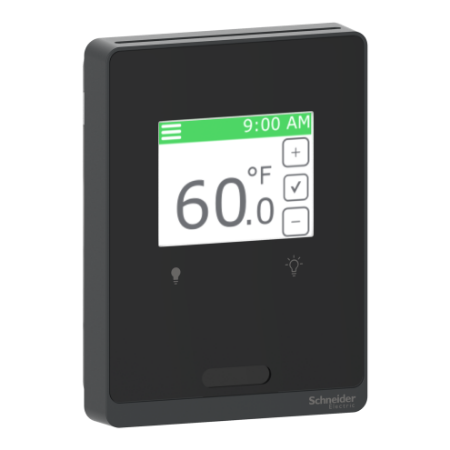

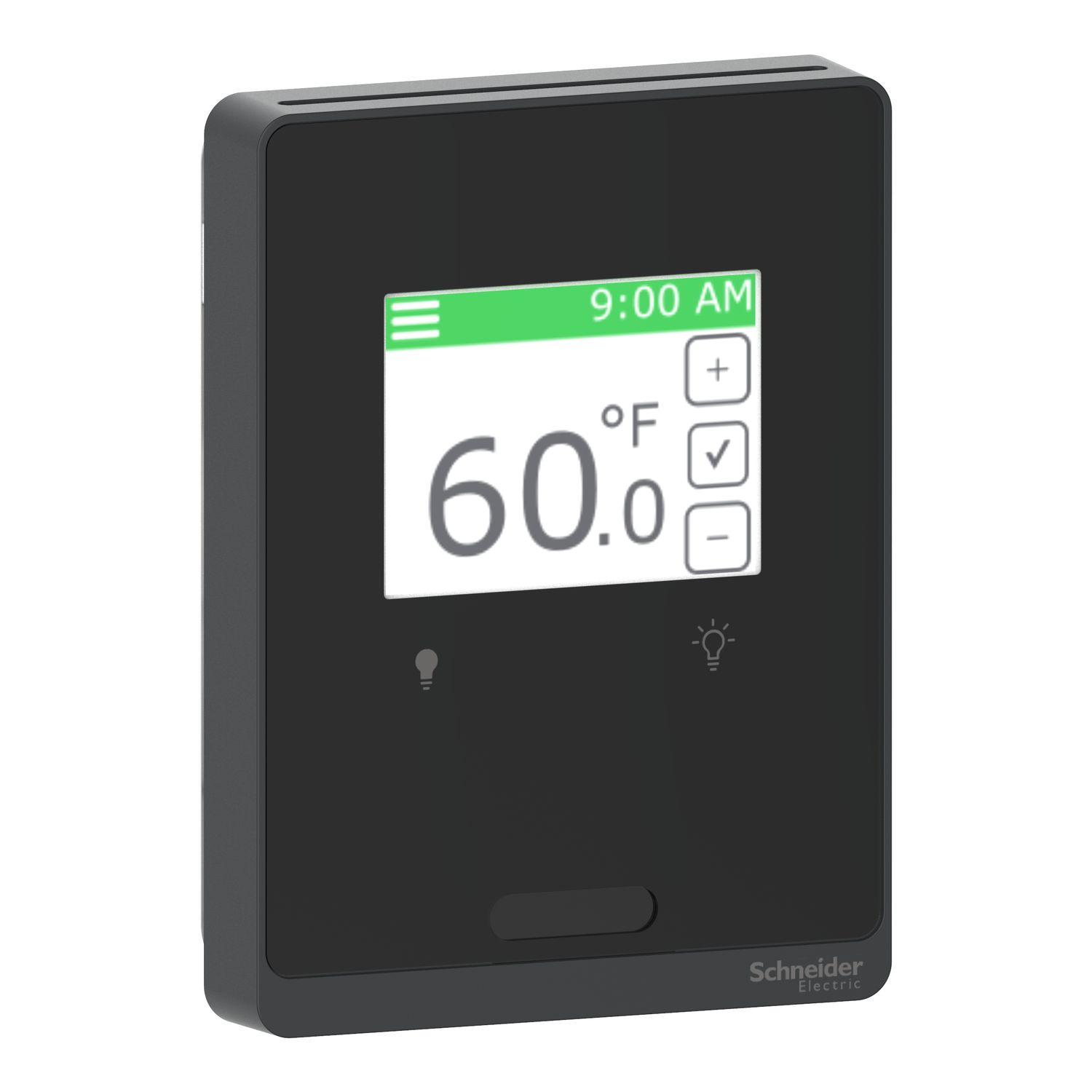

Picture of SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, PIR, Optimum Black Cover
SKU:

SXWSC2PSELXB

SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, PIR, Optimum Black Cover

Please Contact Sales to buy this Product. click here
SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, PIR, Optimum Black Cover
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 15-Nov-2024
Declaration of conformity
Product environmental
Catalogue
Instruction sheet
End of life manual
User guide
Product Page Link
Product Data Sheet
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller. SmartX living space sensors are modular and are ordered in two parts: the sensor base and the cover. Four SmartX communicating sensor base models are available that can be paired with any one of the SmartX modular covers. The SXWSC2PSELXB touchscreen cover displays current time, temperature, humidity percentage (if equipped), CO2 ppm (if equipped), as well as heating, cooling and Eco mode status. Several parameters are adjustable using the touchscreen, from temperature: setpoint, override, temperature scale, fan speed, heating mode, cooling mode. To building environment: blinds open/closed/adjust and blind angle. Setpoint, override, display timeout and display lockout parameters are configured using EcoStruxure Building Operation software. The Optimum Black housing has a glass front panel with two off screen buttons for light control and an upgraded look and feel and is a great option for new construction and retrofit projects.

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Device applicationcontrol, HVAC
Depth20 mm
Colourblack
Display typecolour touchscreen
Width85 mm
Sensor typePIR
Display size2.4 inch
Flame retardanceUL94-V0
Device presentationcover plate
RangeSpaceLogic
Locationliving space
Product nameSmartX Living Space Sensor
Product or component typecover
Display resolution320 x 240 pixels
Surface finishglossy
Product certificationsICES-003, EAC, RCM, CE conforming to EN 61000-6-3
StandardsFCC part 15 class B, UL 916
Ambient air temperature for operation0-50 °C
Height115 mm
[Us] rated supply voltage24 V DC
Information displayedtime, menu-driven user interface, operating mode, temperature set point, temperature
Complementary
MaterialABS (acrylonitrile butadiene-styrene) GF10 FR
Control typeON-OFF 2 function keys, for lamp,  tactile
Function availablelight control, blind control, setpoint adjustment, override switches
Movement detection area6 m at 60° (1.35 m mounting), 5 m of radius (wall) at 110° (1.35 m mounting), 4 m at 140° (1.35 m mounting)
Connections - terminalsbus terminal (back)
Supplybase
Range compatibilityEcoStruxure Building Operation SmartX Living Space Sensor base unit, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.8 cm
Package 1 Width9.7 cm
Package 1 Length14.0 cm
Package 1 Weight121.0 g
