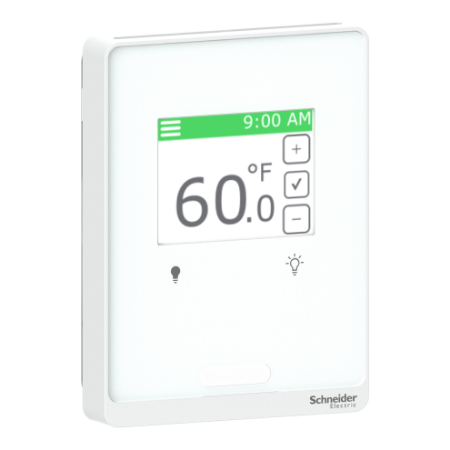

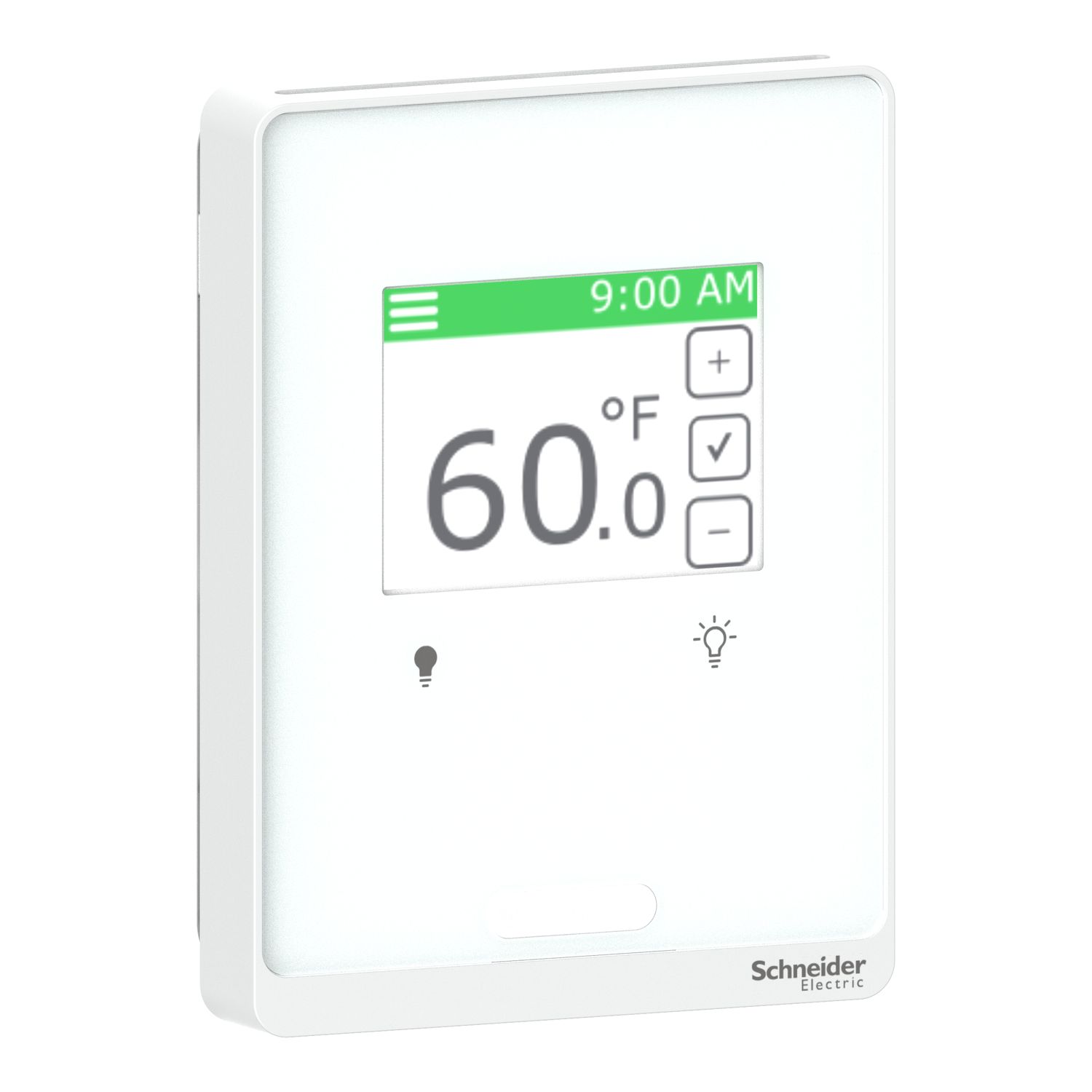

Picture of SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, Optimum White Cover
SKU:

SXWSC2XSELXW

SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, Optimum White Cover

$478.80
Available for Shipping : 12-Dec-2024
SmartX Cover Plate, for Sensor Base, Touchscreen, with 2 Buttons Lighting, Optimum White Cover
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Catalogue
Instruction sheet
End of life manual
User guide
Product Page Link
Product Data Sheet
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller. SmartX living space sensors are modular and are ordered in two parts: the sensor base and the cover. Four SmartX communicating sensor base models are available that can be paired with any one of the SmartX modular covers. The SXWSC2PSELXW touchscreen cover displays current time, temperature, humidity percentage (if equipped), CO2 ppm (if equipped), as well as heating, cooling and Eco mode status. Several parameters are adjustable using the touchscreen, from temperature: setpoint, override, temperature scale, fan speed, heating mode, cooling mode. To building environment: blinds open/closed/adjust and blind angle. Setpoint, override, display timeout and display lockout parameters are configured using EcoStruxure Building Operation software. The Optimum White housing has a glass front panel with two off screen buttons for light control and an upgraded look and feel and is a great option for new construction and retrofit projects.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device application control, HVAC
Depth 20 mm
Colour white
Display type colour touchscreen
Width 85 mm
Display size 2.4 inch
Flame retardance UL94-V0
Device presentation cover plate
Range SpaceLogic
Location living space
Product name SmartX Living Space Sensor
Product or component type cover
Display resolution 320 x 240 pixels
Surface finish glossy
Product certifications ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Standards FCC part 15 class B, UL 916
Ambient air temperature for operation 0-50 °C
Height 115 mm
[Us] rated supply voltage 24 V DC
Information displayed time, menu-driven user interface, operating mode, temperature set point, temperature
Complementary
Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Control type ON-OFF 2 function keys, for lamp,  tactile
Function available light control, blind control, setpoint adjustment, override switches
Connections - terminals bus terminal (back)
Supply base
Range compatibility EcoStruxure Building Operation SmartX Living Space Sensor base unit, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 9.7 cm
Package 1 Length 14.0 cm
Package 1 Weight 121.0 g
