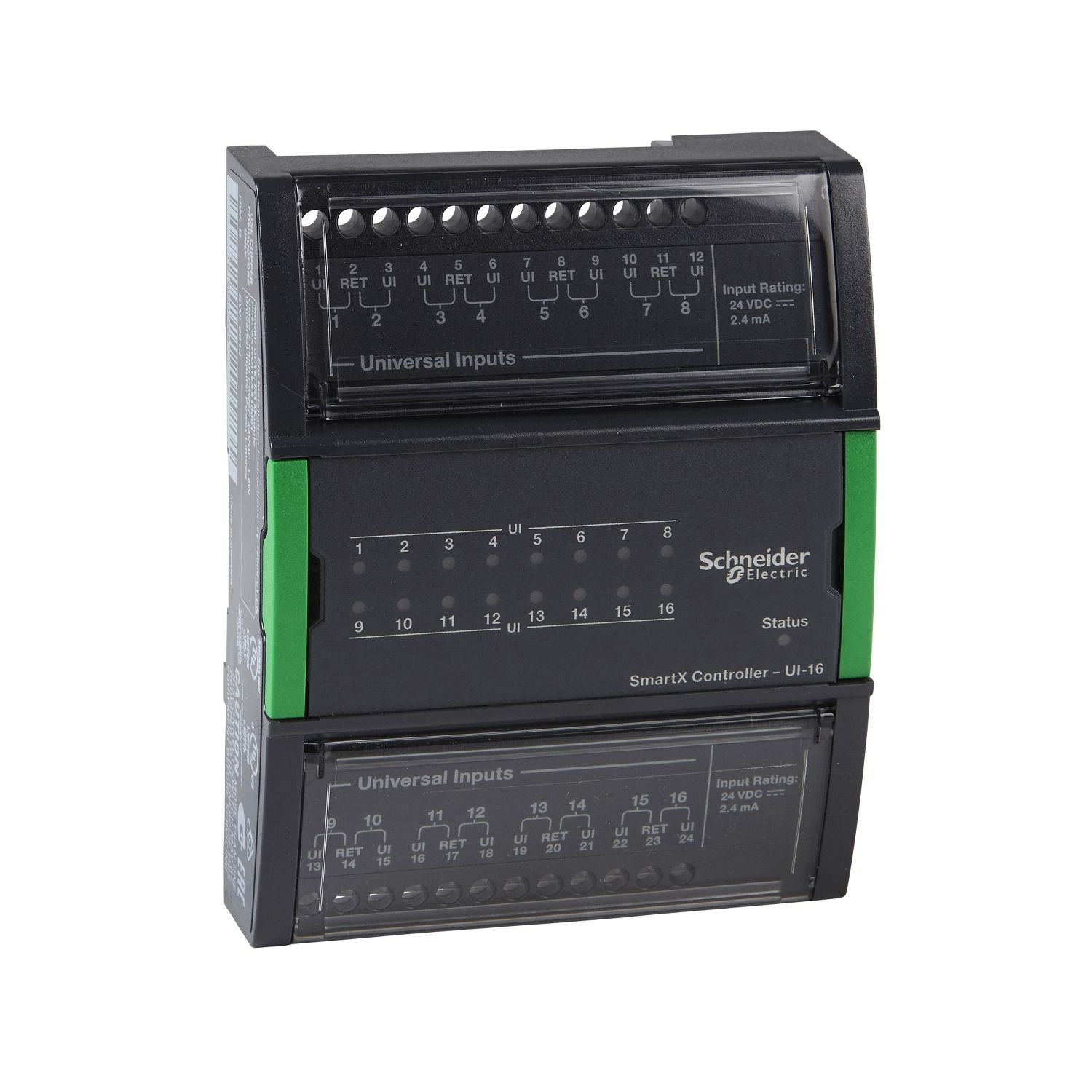

Picture of Central I/O module, SpaceLogic, 16 universal inputs
SKU:

SXWUI16XX10001

Central I/O module, SpaceLogic, 16 universal inputs

$2,827.44 INC GST
Available for Shipping : 05-May-2025
SpaceLogic UI-16 Central I/O Module
  • 16 universal input channels for different sensor types.
  • Compatible with SpaceLogic AS-P Server.
  • Supports analog and digital inputs.
  • Small and space-saving design.
  • Easy installation with labeled connectors.
  • 68 kg CO2 lifecycle footprint.
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Instruction sheet
CAD
Product Page Link
Product Data Sheet

The SpaceLogic UI-16 is a flexible 16-channel input module designed to expand the I/O capacity of the SpaceLogic AS-P Server. It easily processes various inputs like temperature, pressure, flow, and status signals. It is a great choice for building automation and control systems. It efficiently adapts to different system needs with 16 universal inputs.

Compact and designed to save space, the UI-16 measures 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width, and 64 mm (2.5 in.) in depth. Installation is straightforward, requiring the SpaceLogic Central I/O Terminal Base (SXWTBIOW110001). Whether for monitoring, control, or system expansion, the UI-16 is reliable, versatile, and easy to use.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name UI-16
Depth 64 mm
Width 30 mm
Relative humidity 0-95 % non-condensing
Power consumption in VA 1.8 W
Ambient air temperature for storage -20-70 °C
Flame retardance UL94V0-5VB
Range EcoStruxure Building Operation
Net weight 146 g
Product name I/O Modules
Input/output type universal input
Product or component type I/O module
Ambient air temperature for operation 0-50 °C
Height 114 mm
Product brand Schneider Electric
Product certifications RCM, CE, FCC part 15 class B, ICES-003
Complementary
Analogue input type configurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA
Product compatibility Satchwell, Johnson Control, Honeywell, Continuum, Xenta, Balco, I/NET
Electrical connection plug-in sub-base
Material ABS + PC
Discrete input number 16
Control type without
Local signalling LED (green/red) for low signal level,  LED (green/red) for high signal level
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards FCC CFR 47 part 15, UL 916, UL 864
Mounting support wall, DIN rail
Discrete input voltage 24 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 5.7 cm
Package 1 Length 11.7 cm
Package 1 Weight 171.0 g
