Picture of Central I/O module, SpaceLogic, 8 universal inputs, 4 analog outputs
SKU:

SXWUI8A4X10001

Central I/O module, SpaceLogic, 8 universal inputs, 4 analog outputs

Please Contact Sales to buy this Product. click here
Central I/O module, SpaceLogic, 8 universal inputs, 4 analog outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
CAD
End of life manual
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

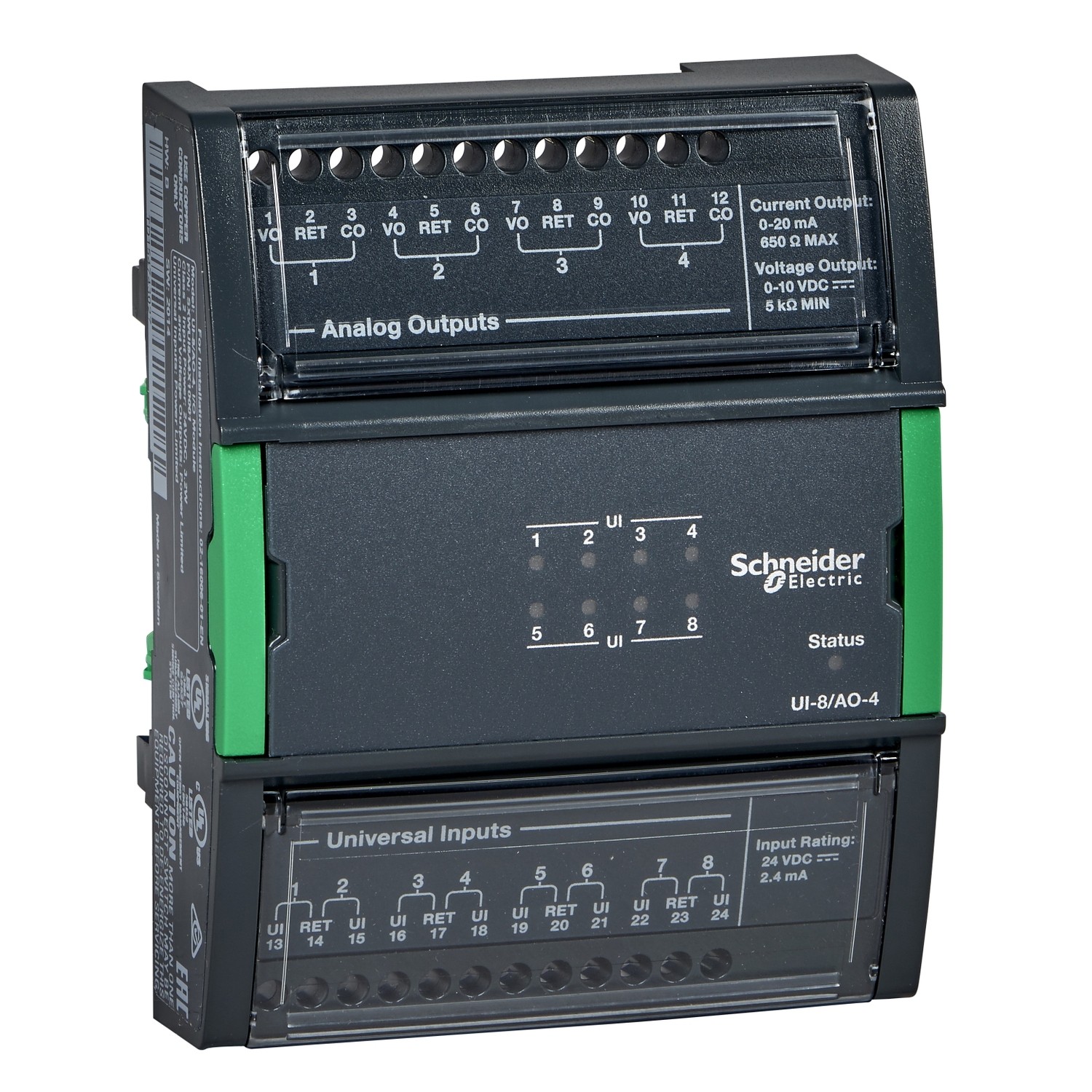

The SpaceLogic UI-8/AO-4 is a universal input, 8 channel and analog output, 4 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The analog outputs are capable of supporting analog voltage or current point types. They support a wide range of devices, such as actuators. The UI-8/AO-4 I/O expansion module features 8 universal inputs and 4 analog voltage/current outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIP20
Device short nameUI-8/AO-4
Depth64 mm
Width90 mm
Relative humidity0-95 % non-condensing
Ambient air temperature for storage-20-70 °C
Flame retardanceUL94V0-5VB
RangeEcoStruxure Building Operation
Net weight152 g
Product nameI/O Modules
Input/output typeuniversal input
Product or component typeI/O module
Number of outputs4 analog output
Power consumption in W3.2 W
Ambient air temperature for operation0-50 °C
Height114 mm
[Us] rated supply voltage24 V DC
Product brandSchneider Electric
Product certificationsUL, RCM, CE, FCC part 15 class B, ICES-003
Complementary
Analogue input typeconfigurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA
Product compatibilitySatchwell, I/NET, Honeywell, Continuum, Balco, Xenta, Johnson Control
Electrical connectionplug-in sub-base
MaterialABS + PC
Discrete input number8
Control typewithout
Local signallingLED (green/red) for low signal level,  LED (green/red) for high signal level
Range compatibilityEcoStruxure Building Operation TB-IO-W1 terminal base
StandardsFCC CFR47 part 15, UL 916, UL 864
Mounting supportwall, DIN rail
Switching frequency25 Hz
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.6 cm
Package 1 Width11.7 cm
Package 1 Length9.1 cm
Package 1 Weight170.0 g
