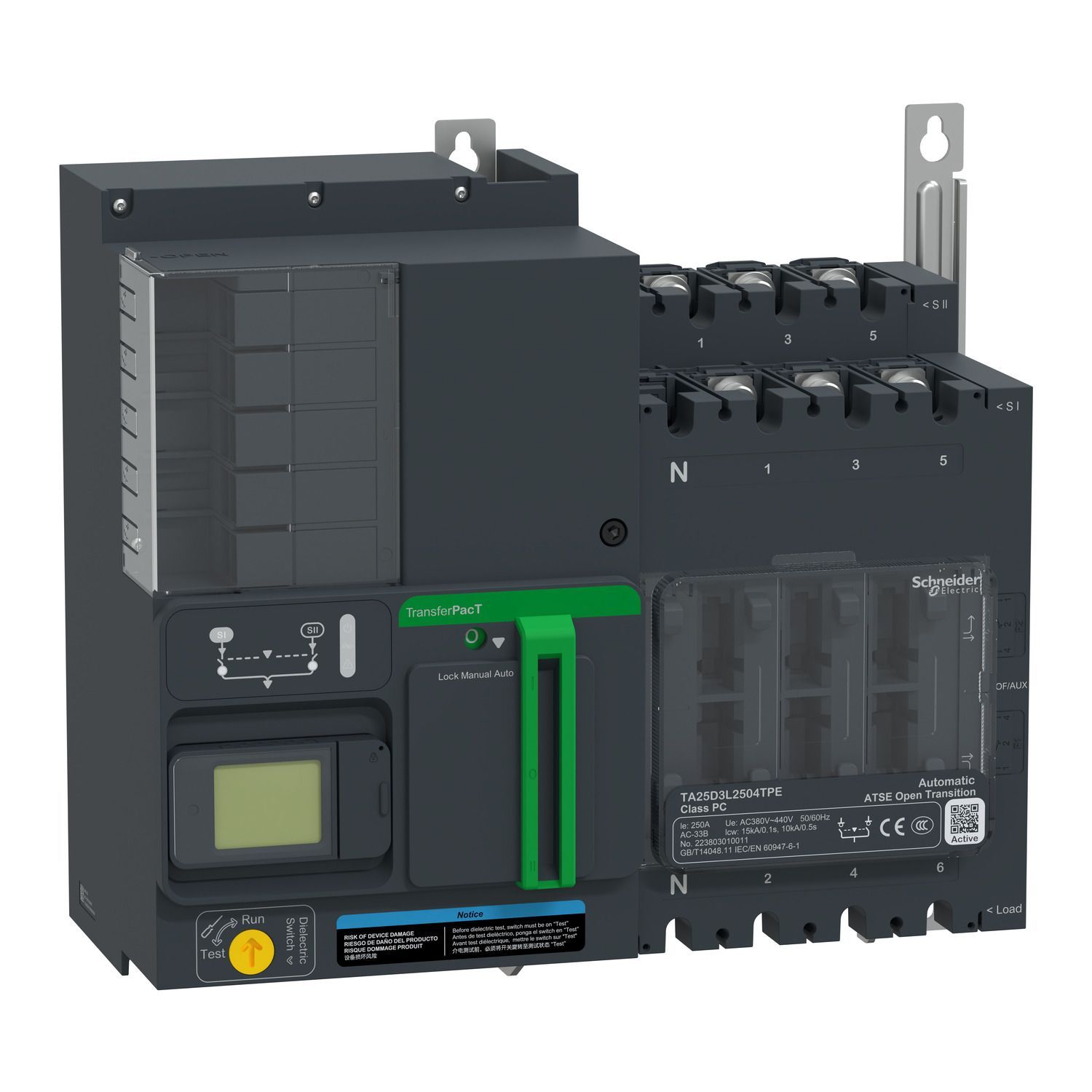

Picture of TransferPacT Active Automatic, 250A, 400V, 3P, LCD, frame 250A
SKU:

TA25D3L2504TPE

TransferPacT Active Automatic, 250A, 400V, 3P, LCD, frame 250A

$6,603.83 INC GST
Available for Shipping : 20-May-2025
Product Selector
TransferPacT Active Automatic, 250A, 400V, 3P, LCD, frame 250A
  • Speedy transfer in less than 500ms,reduced black out time.
  • Add-on or replacement of function modules, flexibility installation without power interruption.
  • Cybersecurity level SL1 as per IEC62443-4-2,secured monitoring.
  • Natively connected offer can integrate in EcoStruxure for24/7 precise power monitoring.
  • Multiple function modules,easy upgrade with digital features.
  • Space saving as compact design.
  • Wide range to do threshold settings.
  • High utilization category AC-33B full range without derating.
  • High rated short time withstand current Icw=15kA/0.1s,10kA/0.5s.
  • Built-in DPS and sensing wire, 30% commissioning time saving.
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
User guide
Instruction sheet
Technical illustration
CAD
Product Page Link
Product Data Sheet
This TA25D3L2504TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 250A(Ie) at 60℃, with 250A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 3poles version is 370mm(width)x341mm(height)x185.8mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.
