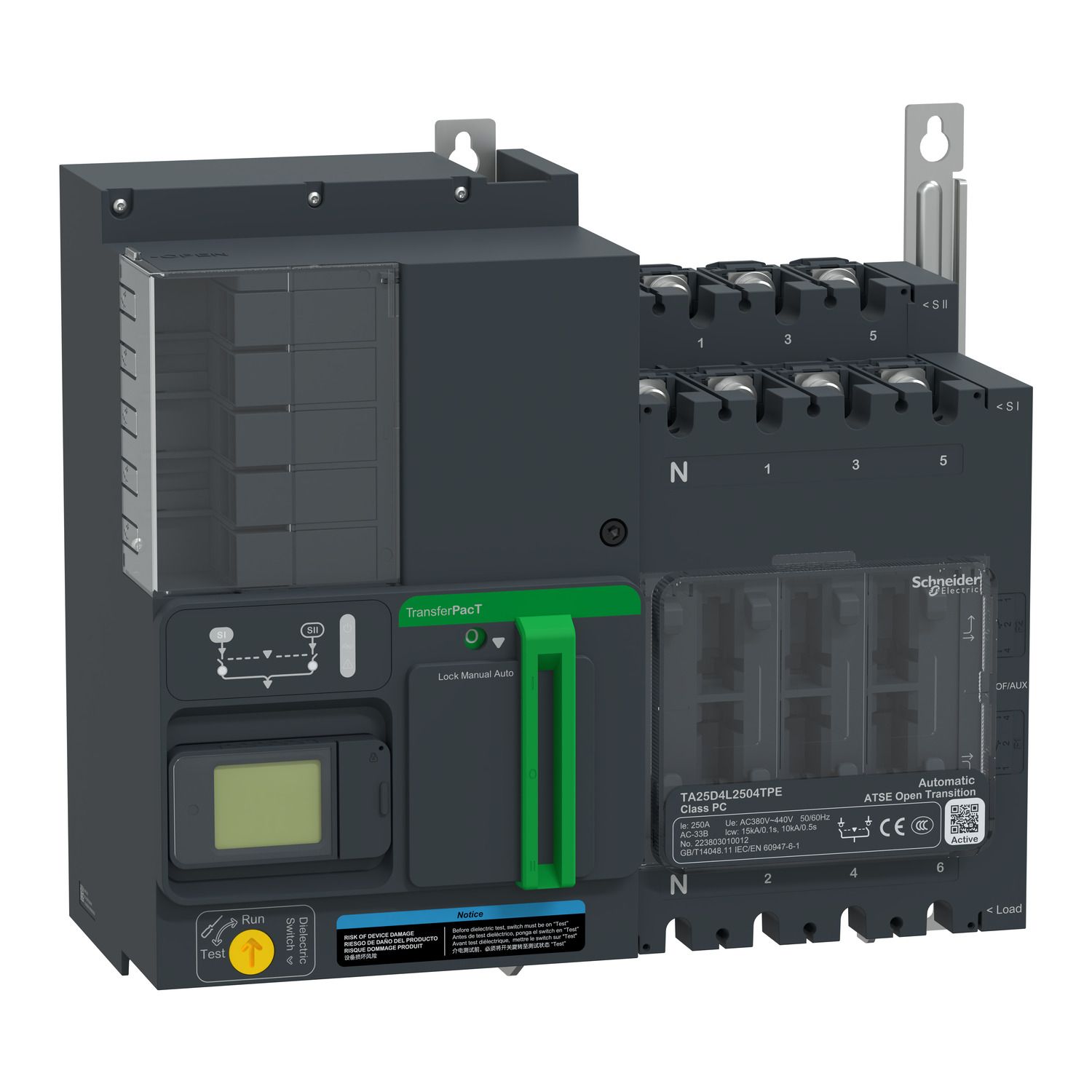

Picture of TransferPacT Active Automatic, 250A, 400V, 4P, LCD, frame 250A
SKU:

TA25D4L2504TPE

TransferPacT Active Automatic, 250A, 400V, 4P, LCD, frame 250A

$6,126.96 INC GST
Available for Shipping : 29-Jan-2025
Product Selector
TransferPacT Active Automatic, 250A, 400V, 4P, LCD, frame 250A
  • Speedy transfer in less than 500ms,reduced black out time.
  • Add-on or replacement of function modules, flexibility installation without power interruption.
  • Cybersecurity level SL1 as per IEC62443-4-2,secured monitoring.
  • Natively connected offer can integrate in EcoStruxure for24/7 precise power monitoring.
  • Multiple function modules,easy upgrade with digital features.
  • Space saving as compact design.
  • Wide range to do threshold settings.
  • High utilization category AC-33B full range without derating.
  • High rated short time withstand current Icw=15kA/0.1s,10kA/0.5s.
  • Built-in DPS and sensing wire, 30% commissioning time saving.
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
CAD
Product environmental
Instruction sheet
User guide
Technical illustration
Product Page Link
Product Data Sheet
This TA25D4L2504TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 250A(Ie) at 60℃, with 250A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 370mm(width)x341mm(height)x185.8mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.

Products specifications

Attribute name Attribute value
Main
Device application change source of supply
Poles description 4P
Suitability for isolation yes
[Icm] rated short-circuit making capacity 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz, 30 kA switch-disconnector alone 400 V AC at 50 Hz
Mounting mode fixed
Upside connection screwed
Product or component type automatic transfer switch
Downside connection screwed
Network type AC
Contact position indicator yes
Range of product TransferPacT
Network frequency 50/60 Hz
Complementary
Rated duty uninterrupted
[Icw] rated short-time withstand current 15 kA during 0.1 s, 10 kA during 0.5 s
Depth 185.8 mm
Transfer switch class PC
Display type LCD screen
Width 370 mm
[Uimp] rated impulse withstand voltage controller: 6 kV, switch: 8 kV
Local signalling LED indicator (red) for alarm, LED indicator (green) for power ON
Mechanical interlocking with mechanical interlocking
[Ie] rated operational current 250 A
Mechanical durability 10000 cycles
[Ui] rated insulation voltage controller: 500 V, switch: 800 V
Utilisation category AC-33B
Control type 4 push-buttons
Signal contacts composition 2 NO, 1 NC + 2 NO, 1 NO + 2 NC
Net weight 13.3 kg
Operating mode manual, automatic
Mounting support plate
Locking options description padlock in SI / SII position, padlock in OFF position
[Ue] rated operational voltage 400 V AC 50/60 Hz
[Ith] conventional free air thermal current 250 A at 60 °C
Connection pitch 35 mm
Height 341 mm
Number of contact position 3
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection inside the enclosure: IP20 manual mode, front face: IP40 auto mode
Standards IEC 60947-6-1
Ambient air temperature for operation -25-70 °C
Product certifications CCC, CB, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 73.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 29.999 kg
