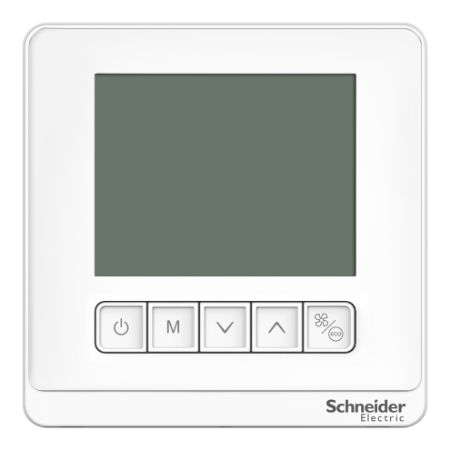

Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, external sensor, 240V, white

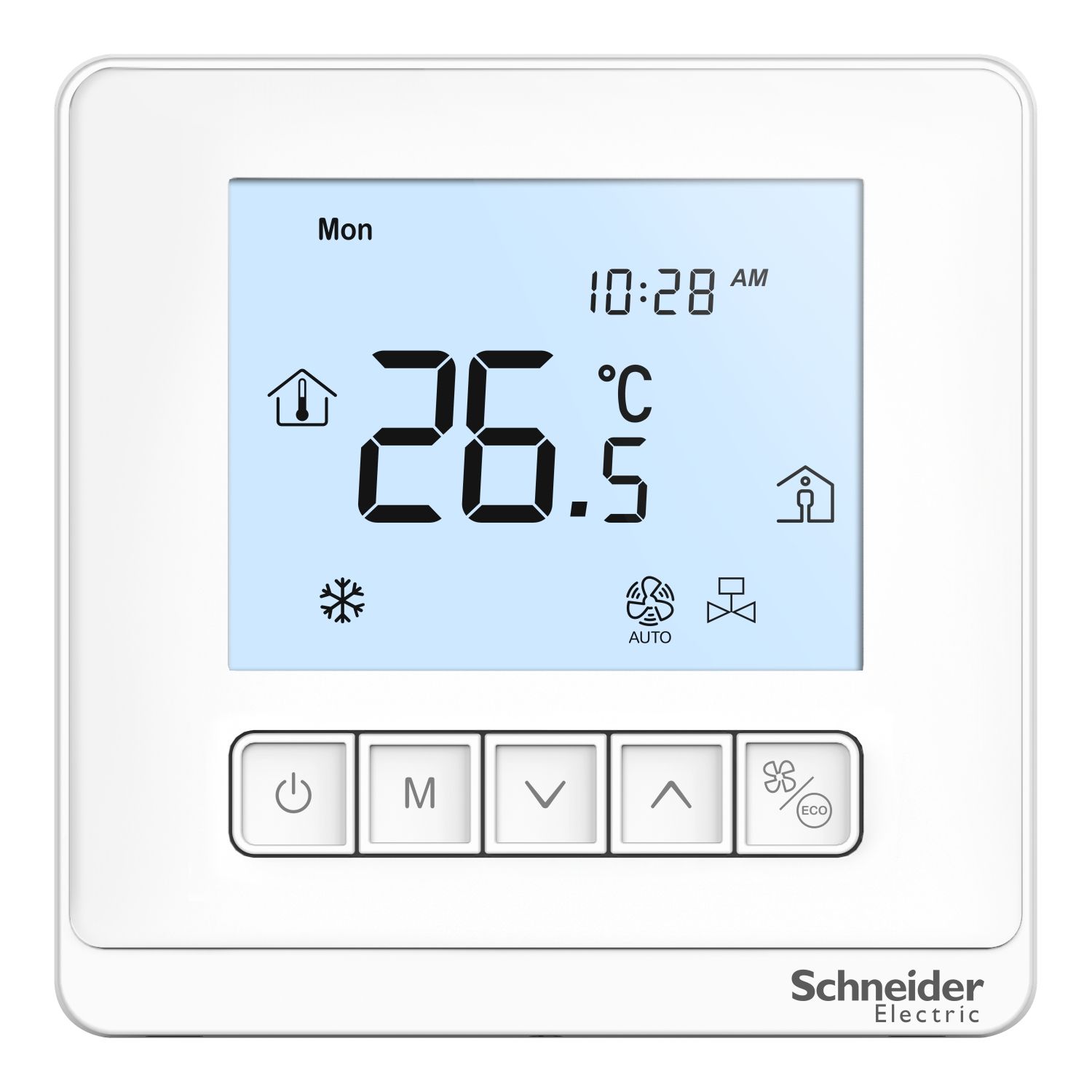

Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, external sensor, 240V, white

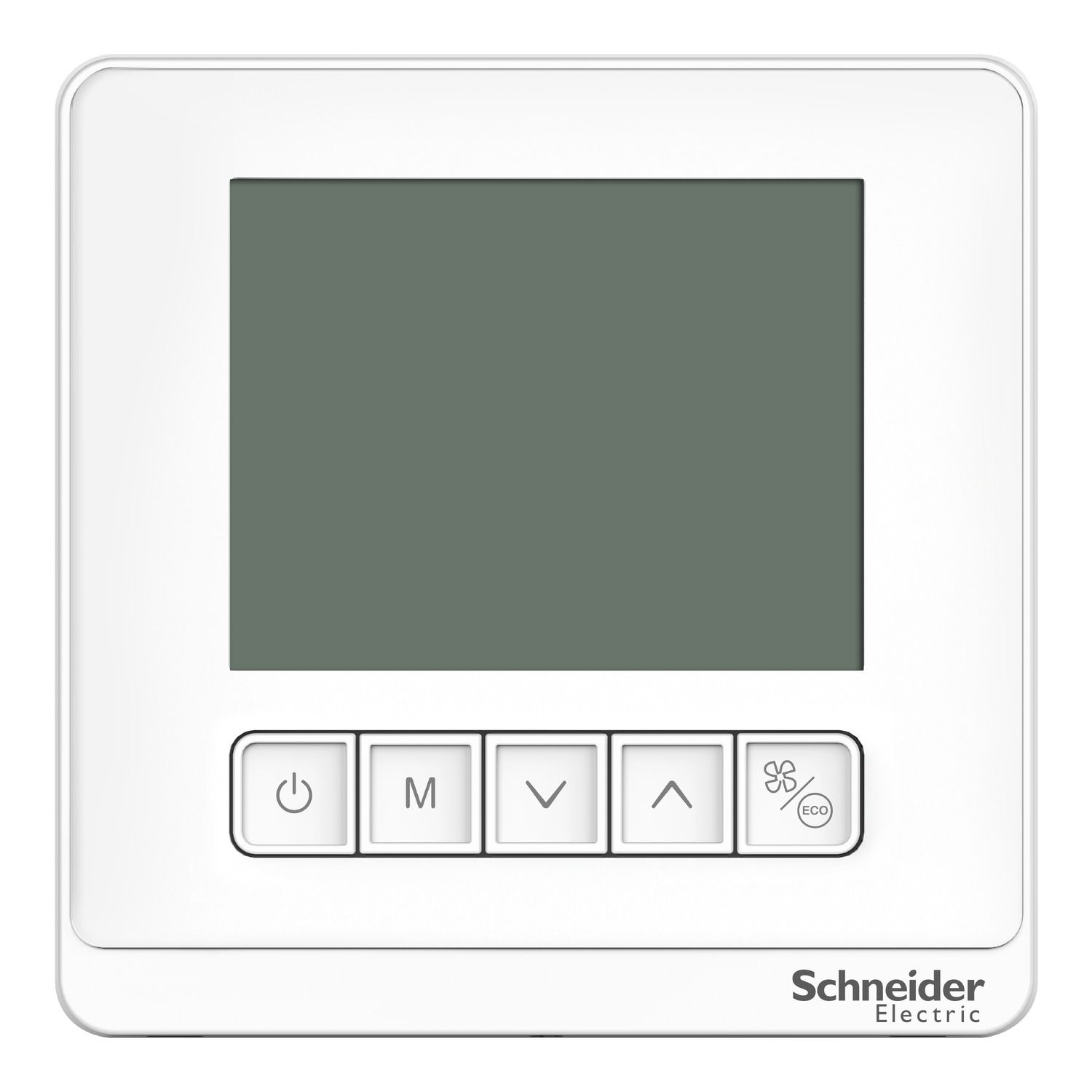

Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, external sensor, 240V, white
SKU:

TC903-3A4DLMSA

Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, external sensor, 240V, white

$247.75
Available for Shipping : 10-Dec-2024
Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, external sensor, 240V, white
  • White glass housing with mechanical buttons for easy operation
  • Button lockout function control unauthorized operation
  • Eco button for energy saving
  • Alert function facilitates temperature sensor maintenance
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features. Features such as Eco button, sleep mode etc designed to maximise energy savings. White glass housing with mechnical button and large LCD display for better visibility. Products are designed for standard BS wall box installation. TC900 series thermostats are CE, RCM, UKCA, and EAC certified. The products and designed for easy installation and operation. The products comes in sustainable brown packaging. The thermostat is equipped with optional Modbus communication.

Products specifications

Attribute name Attribute value
Main
Device short name TC903
Sensor type optional NTC external sensor, 100 kOhm NTC thermistor
Range SpaceLogic
Product name SpaceLogic TC900
Product or component type thermostat
Complementary
Device application fan
Depth 40 mm
Market segment residential, healthcare, hotel, small buildings
Display type backlit LCD screen
Width 86 mm
Product specific application 4-pipe system
Max power consumption in W 1 W
Measurement accuracy temperature: +/- 1 °C,
Control type 3 speed control relay, for fan, 2 positions ON-OFF button, for actuator,  mechanical, for thermostat
Colour white
[Us] rated supply voltage 90...240 V AC 50/60 Hz
Function available sleep mode, low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment
Connections - terminals screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm²
Number of inputs 1 card reader
Communication port protocol Modbus
Output voltage 240 V AC 2 A for load, 240 V AC 5 A for relay
Height 86 mm
Information displayed current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C
Network frequency 60 Hz, 50 Hz
Housing colour white
Environment
IP degree of protection IP20
Temperature setting range 5-35 °C
Relative humidity 5-95 %
Product certifications CE
Pollution degree 2
Standards EN/IEC 60730-2-9, EN/IEC 60730-1
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.3 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.42 kg
Unit Type of Package 3 3
Number of Units in Package 3 864
Package 3 Height 105.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 241.08 kg
