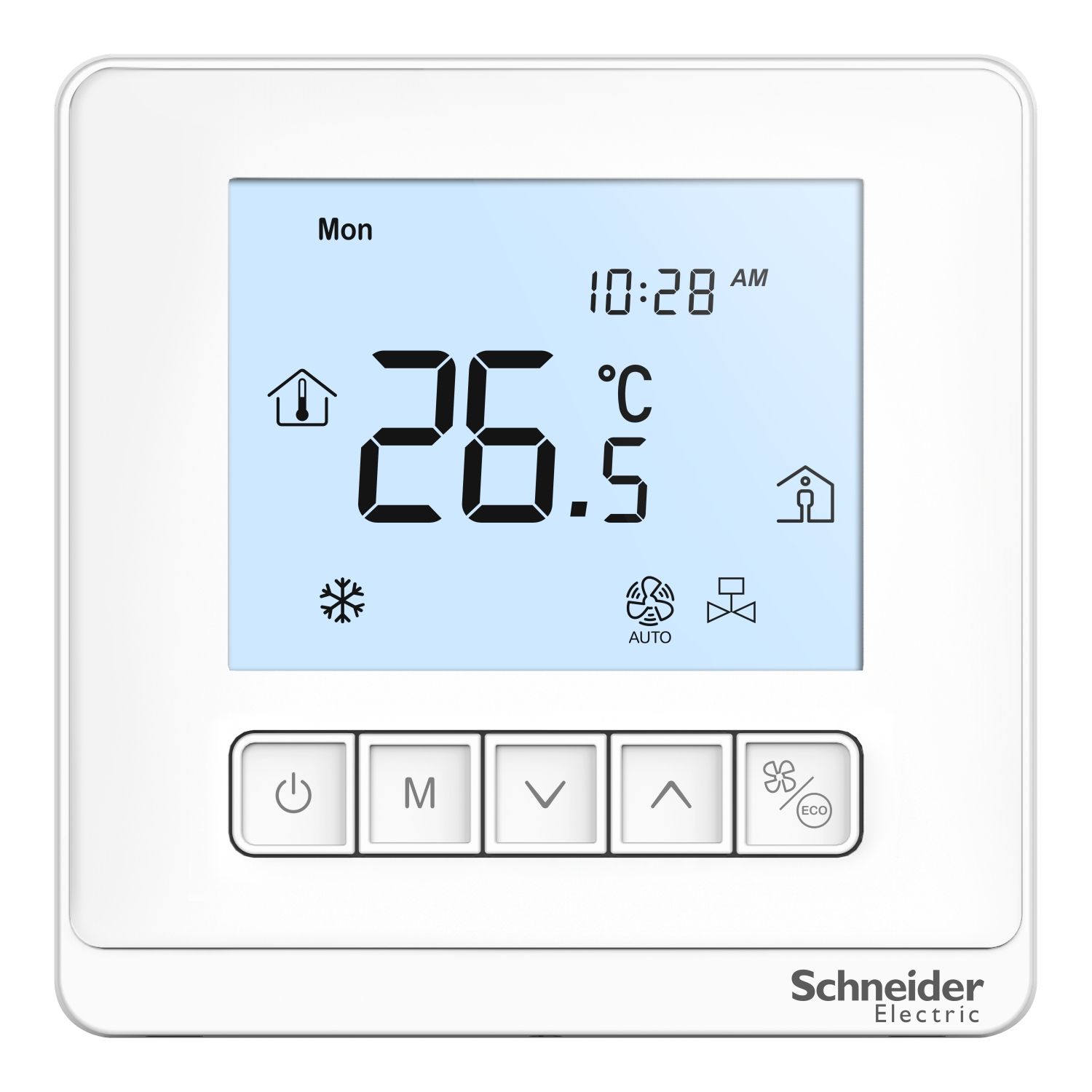

Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, 240V, white

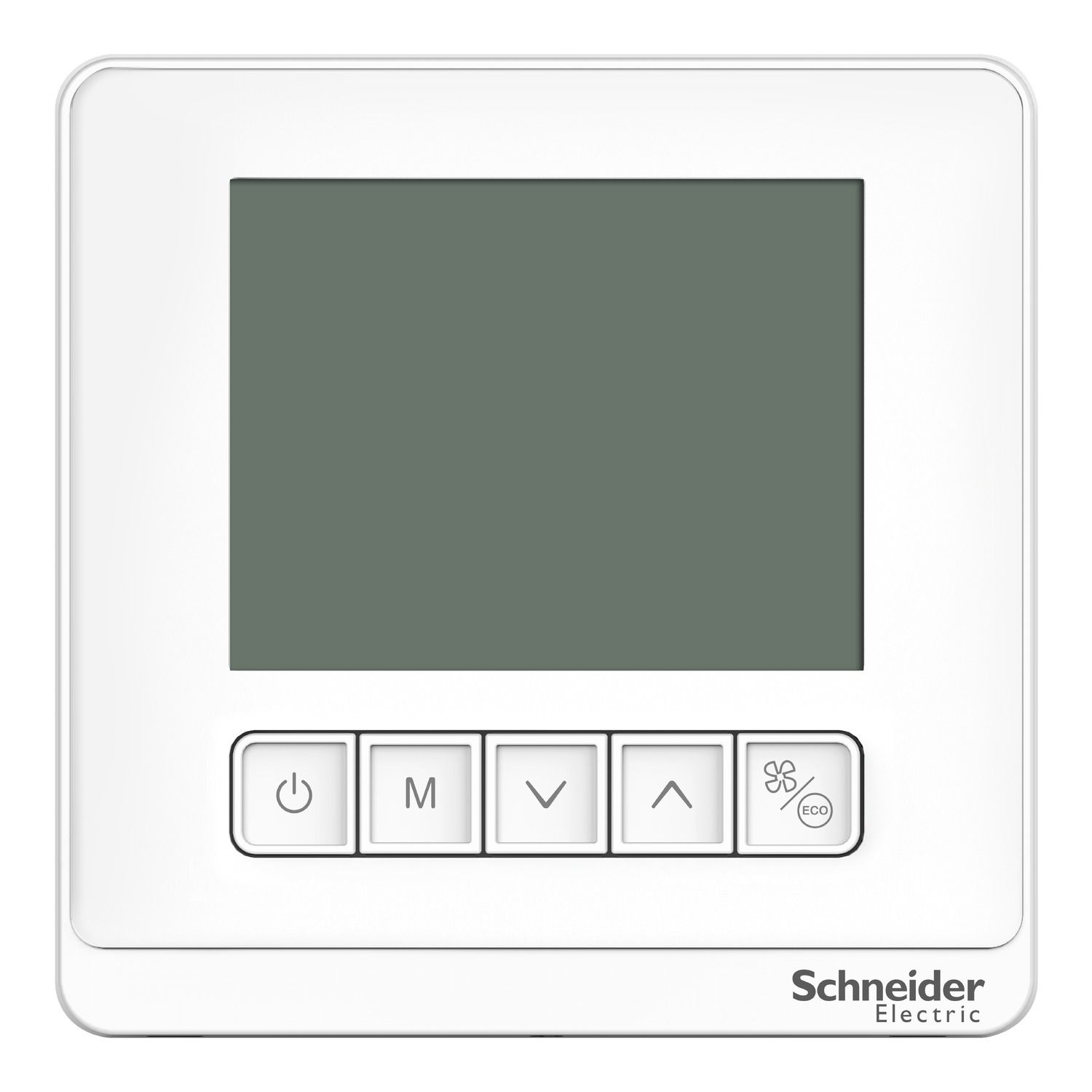

Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, 240V, white
Picture of Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, 240V, white
SKU:

TC903-3A4LMA

Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, 240V, white

Please Contact Sales to buy this Product. click here
Thermostat, Spacelogic, fan coil on/off, networking, LCD 5 Button, 4P, 3 fan, modbus, 240V, white
  • White glass housing with mechanical buttons for easy operation
  • Button lockout function to control unauthorized operation
  • Eco button for energy saving
  • Alert function facilitates temperature sensor maintenance
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Image of product
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features. Features such as Eco button, sleep mode etc designed to maximise energy savings. White glass housing with mechnical button and large LCD display for better visibility. Products are designed for standard BS wall box installation. TC900 series thermostats are CE, RCM, UKCA, and EAC certified. The products and designed for easy installation and operation. The products comes in sustainable brown packaging. The thermostat is equipped with optional Modbus communication.

Products specifications

Attribute nameAttribute value
Main
Device short nameTC903
Sensor type100 kOhm NTC thermistor
RangeSpaceLogic
Product nameSpaceLogic TC900
Product or component typethermostat
Complementary
Device applicationfan
Depth40 mm
Market segmentresidential, healthcare, hotel, small buildings
Display typebacklit LCD screen
Width86 mm
Product specific application4-pipe system
Max power consumption in W1 W
Measurement accuracytemperature: +/- 1 °C,
Control type3 speed control relay, for fan, 2 positions ON-OFF button, for actuator,  mechanical, for thermostat
Colourwhite
[Us] rated supply voltage90...240 V AC 50/60 Hz
Function availablelow temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment
Connections - terminalsscrew terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm²
Communication port protocolModbus
Output voltage240 V AC 2 A for load, 240 V AC 5 A for relay
Height86 mm
Information displayedcurrent program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C
Network frequency60 Hz, 50 Hz
Housing colourwhite
Environment
IP degree of protectionIP20
Temperature setting range5-35 °C
Relative humidity5-95 %
Product certificationsCE
Pollution degree2
StandardsEN/IEC 60730-2-9, EN/IEC 60730-1
Ambient air temperature for operation0-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width10.5 cm
Package 1 Length12.3 cm
Package 1 Weight220.0 g
Unit Type of Package 22
Number of Units in Package 236
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.42 kg
Unit Type of Package 33
Number of Units in Package 3864
Package 3 Height105.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight241.08 kg
