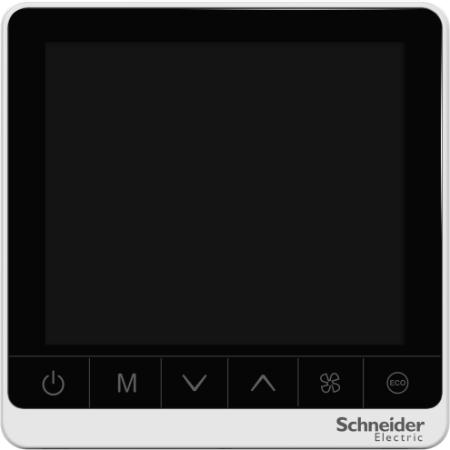

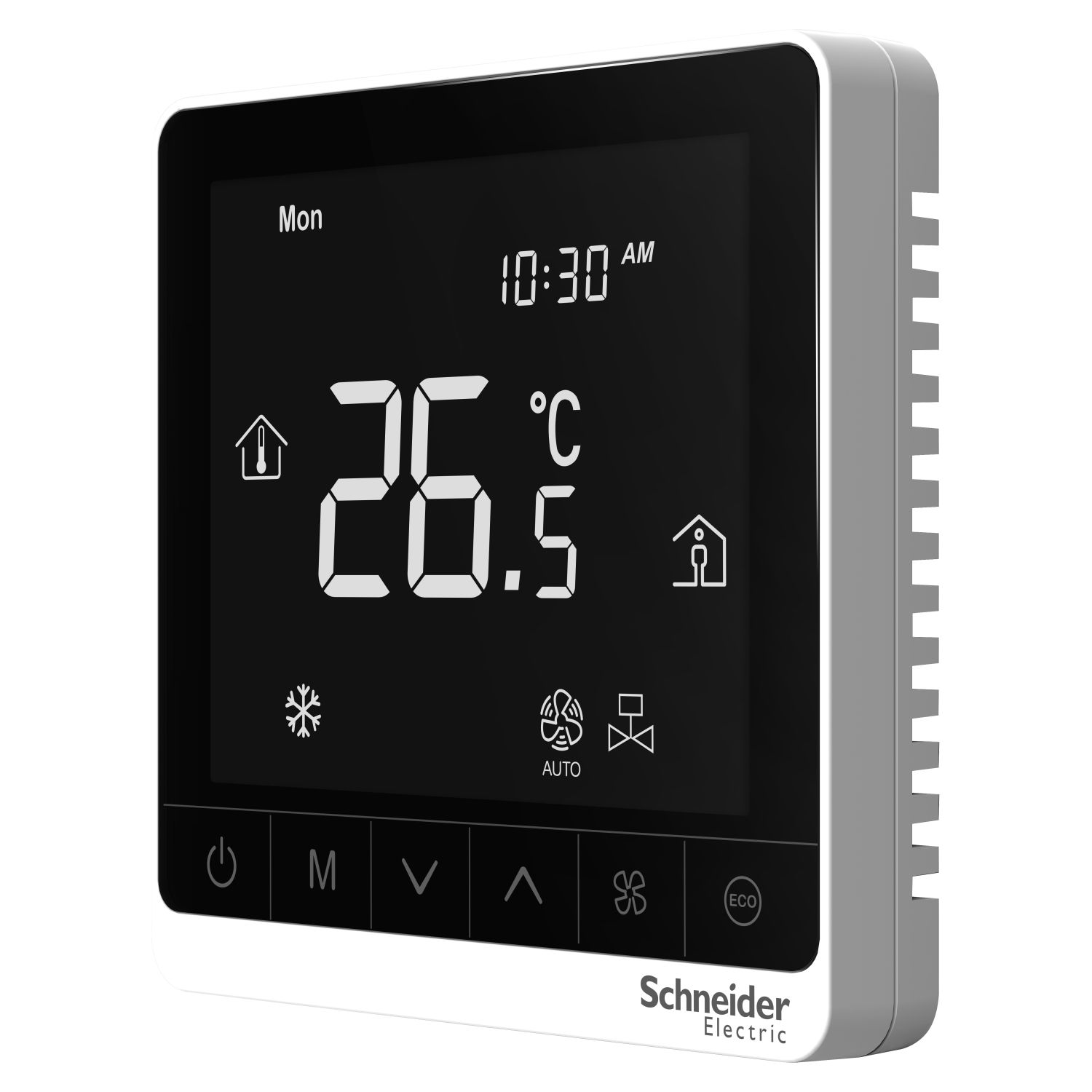

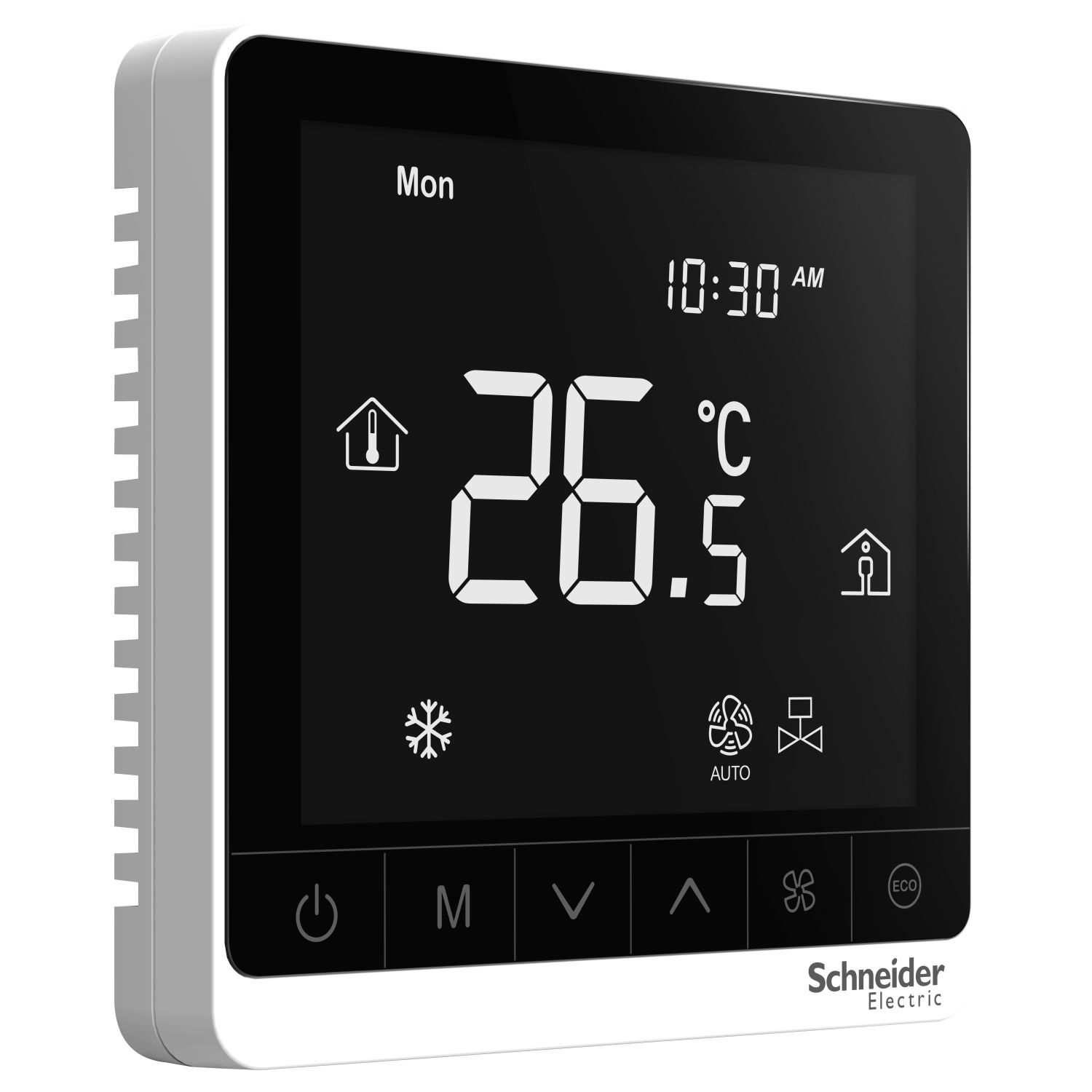

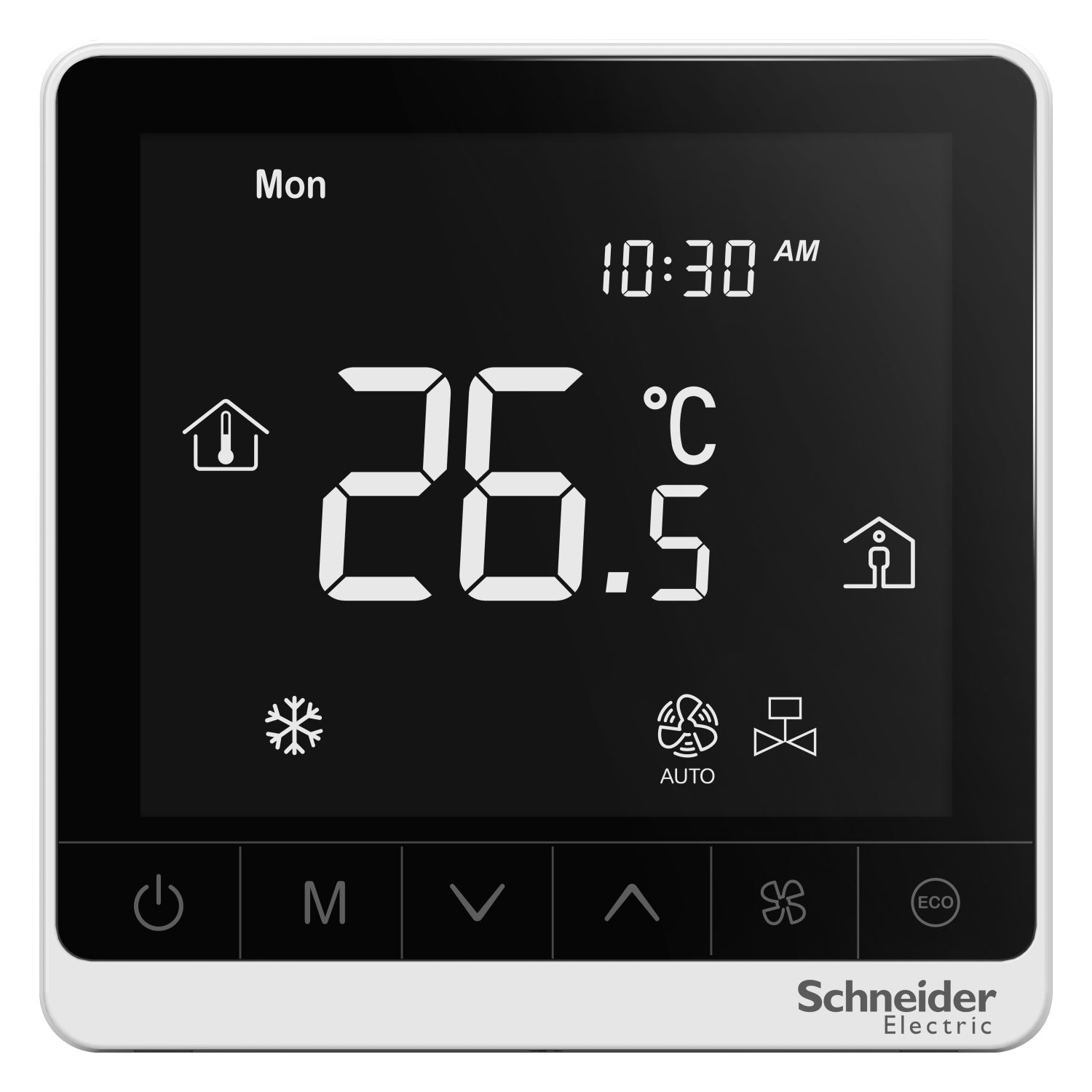

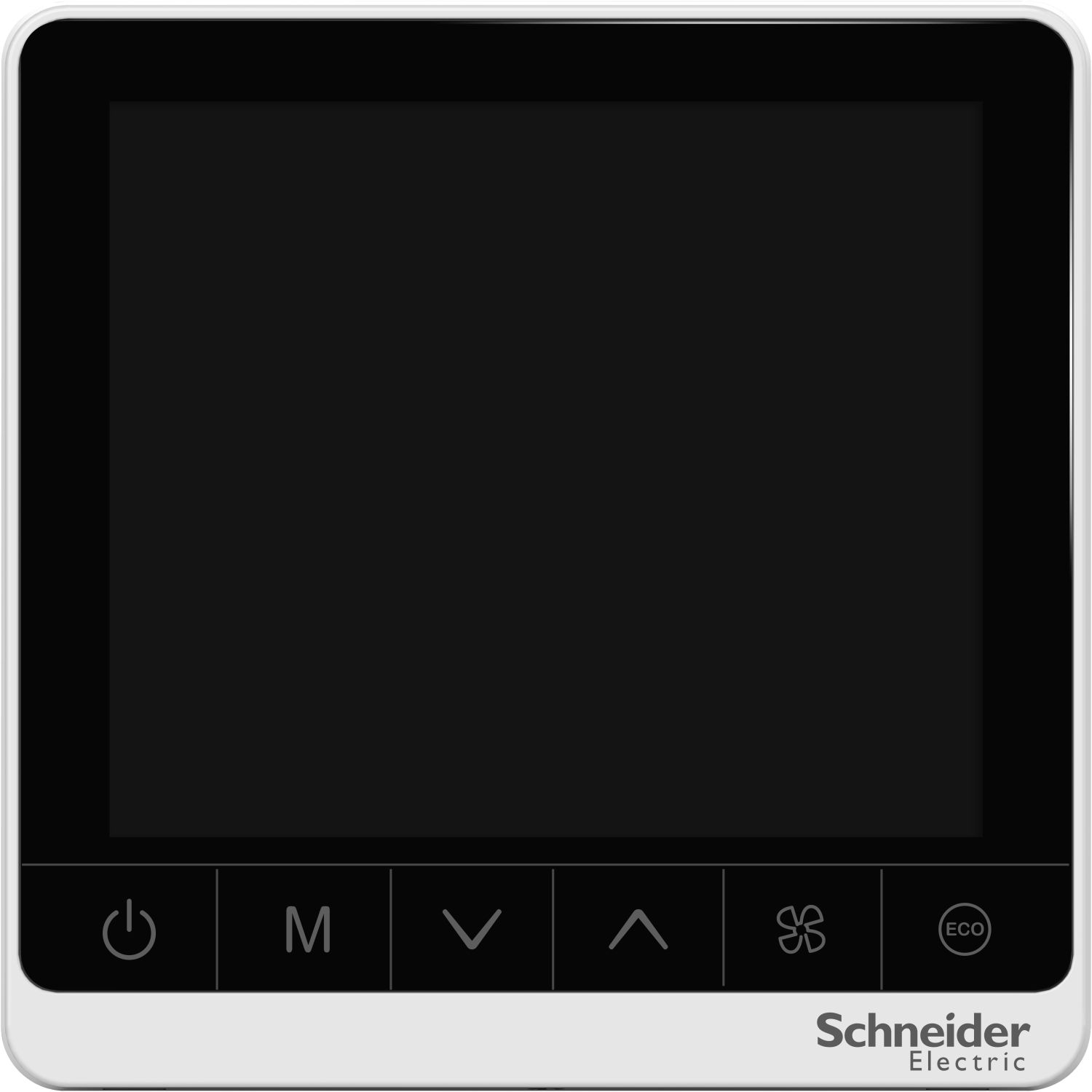

Picture of SpaceLogic thermostat, fan coil on/off, standalone, touchscreen, 2P, 3 fan, 240V, white
SKU:

TC907-3A2L

SpaceLogic thermostat, fan coil on/off, standalone, touchscreen, 2P, 3 fan, 240V, white

$204.23
Available for Shipping : 24-Nov-2024
SpaceLogic thermostat, fan coil on/off, standalone, touchscreen, 2P, 3 fan, 240V, white
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
SpaceLogic thermostat, fan coil on/off, standalone, touchscreen, 2P, 3 fan, 240V, white

Products specifications

Attribute name Attribute value
Main
Device short name TC907
Sensor type 100 kOhm NTC thermistor
Range SpaceLogic
Product name SpaceLogic TC900
Product or component type thermostat
Complementary
Device application fan
Depth 40 mm
Market segment residential, healthcare, hotel, small buildings
Display type backlit LCD screen
Width 86 mm
Product specific application 2-pipe system
Max power consumption in W 1 W
Measurement accuracy temperature: +/- 1 °C,
Control type 3 speed control relay, for fan, 2 positions ON-OFF button, for actuator,  touch screen, for thermostat
Colour black
[Us] rated supply voltage 90...240 V AC 50/60 Hz
Function available low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment
Connections - terminals screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm²
Communication port protocol -
Output voltage 240 V AC 2 A for load, 240 V AC 5 A for relay
Height 86 mm
Information displayed current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C
Network frequency 60 Hz, 50 Hz
Housing colour white
Environment
IP degree of protection IP20
Temperature setting range 5-35 °C
Relative humidity 5-95 %
Product certifications CE
Pollution degree 2
Standards EN/IEC 60730-2-9, EN/IEC 60730-1
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.3 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.42 kg
Unit Type of Package 3 3
Number of Units in Package 3 864
Package 3 Height 105.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 241.08 kg
