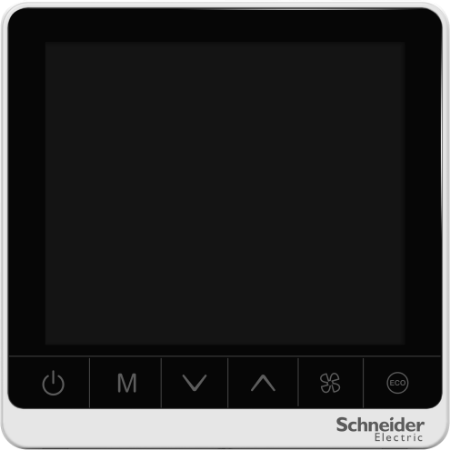

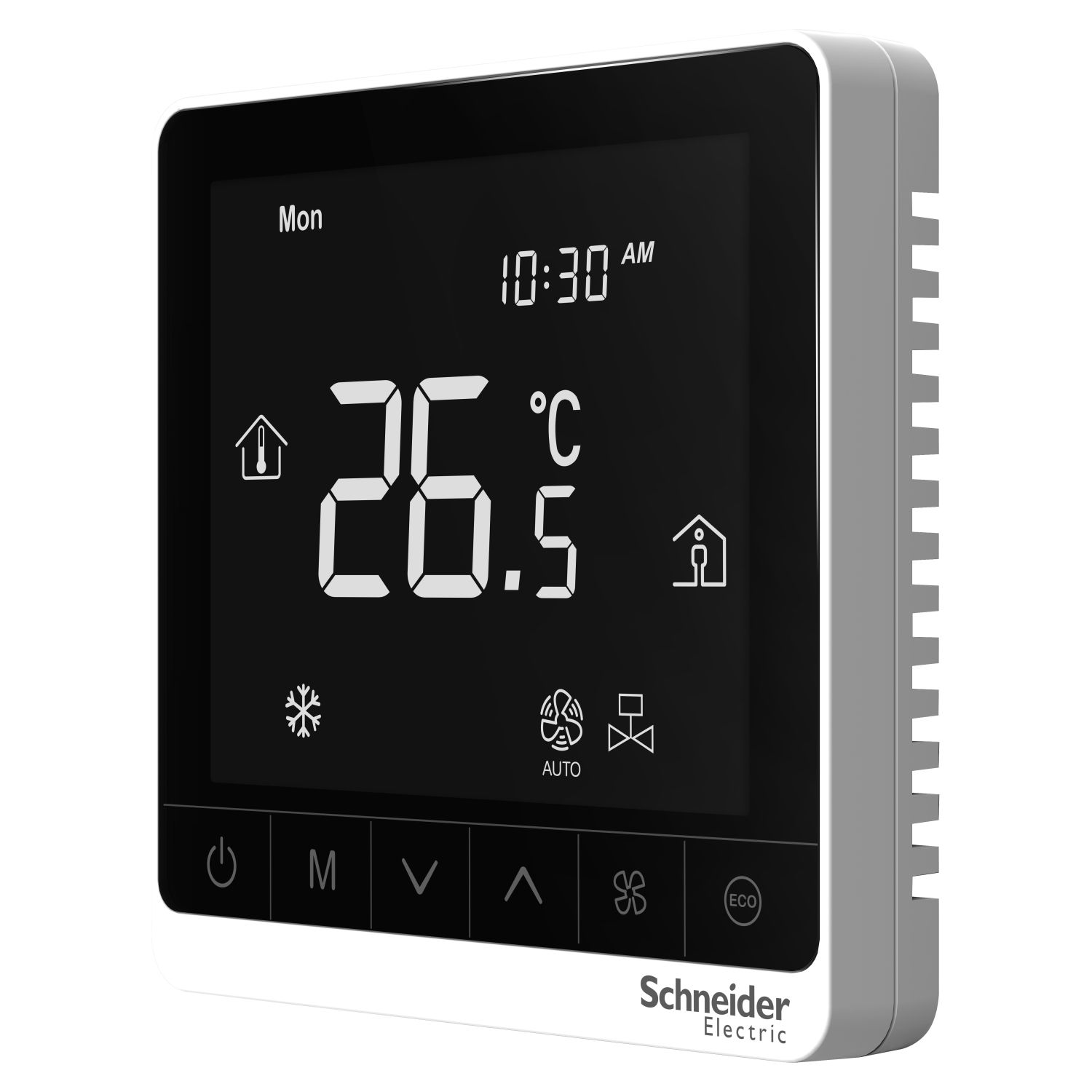

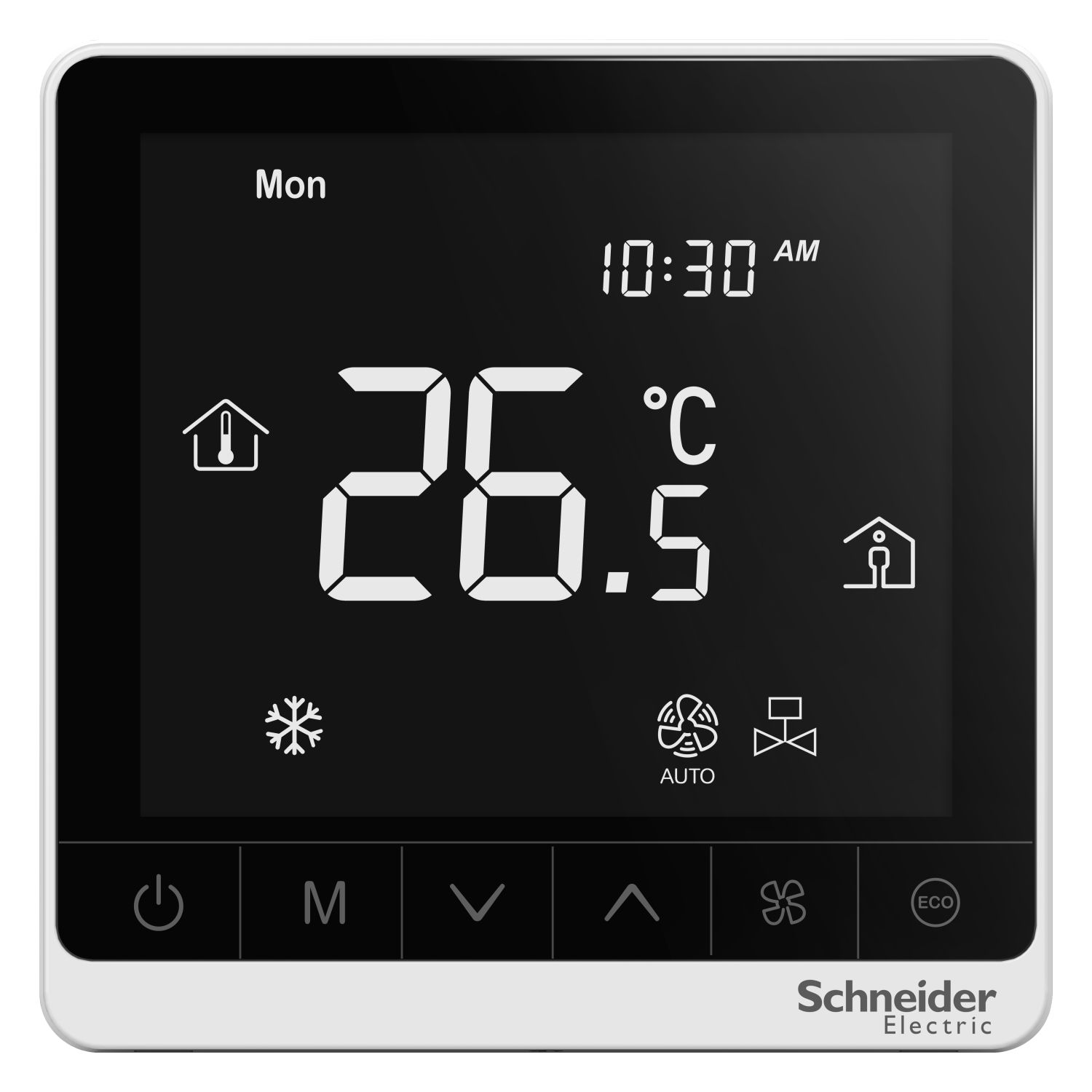

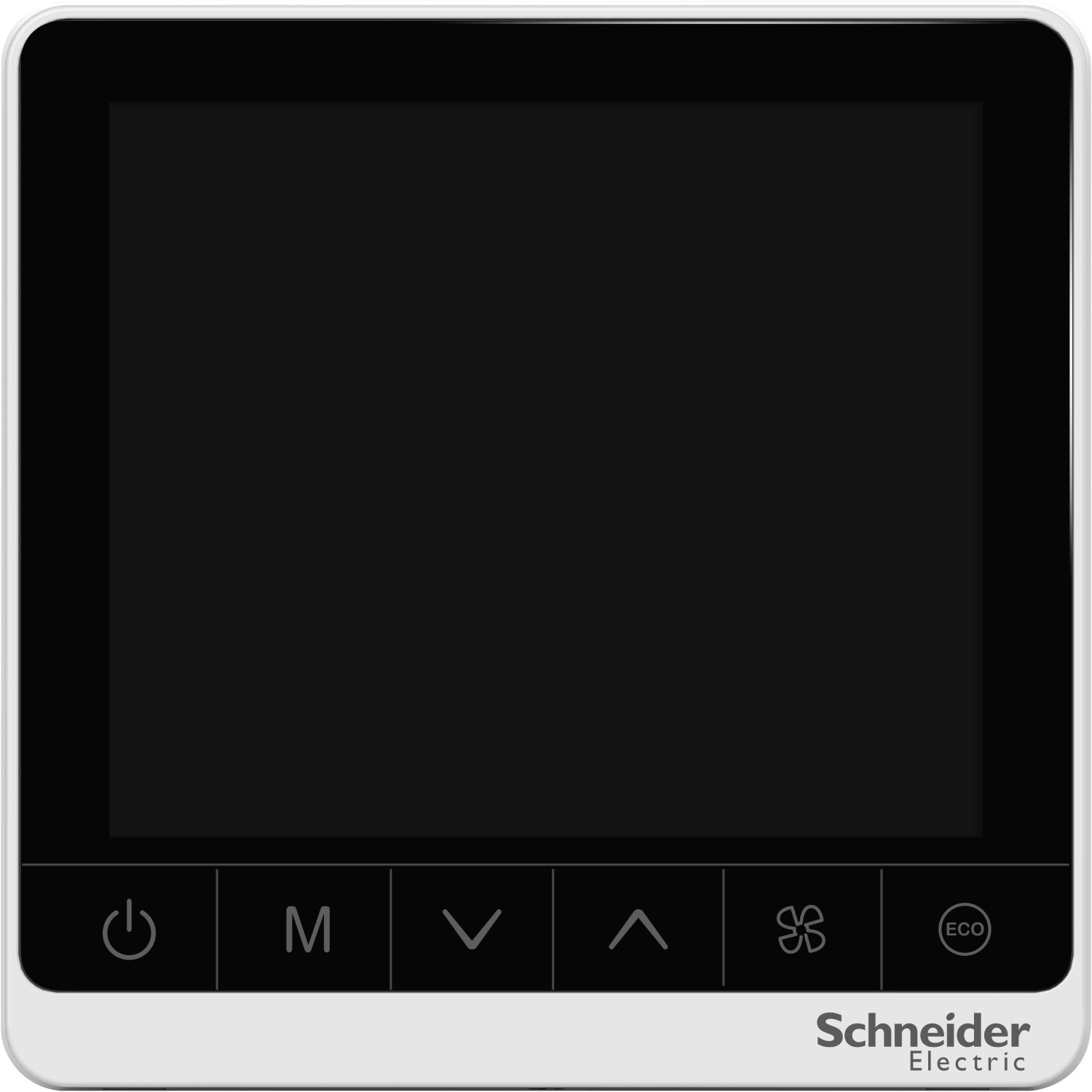

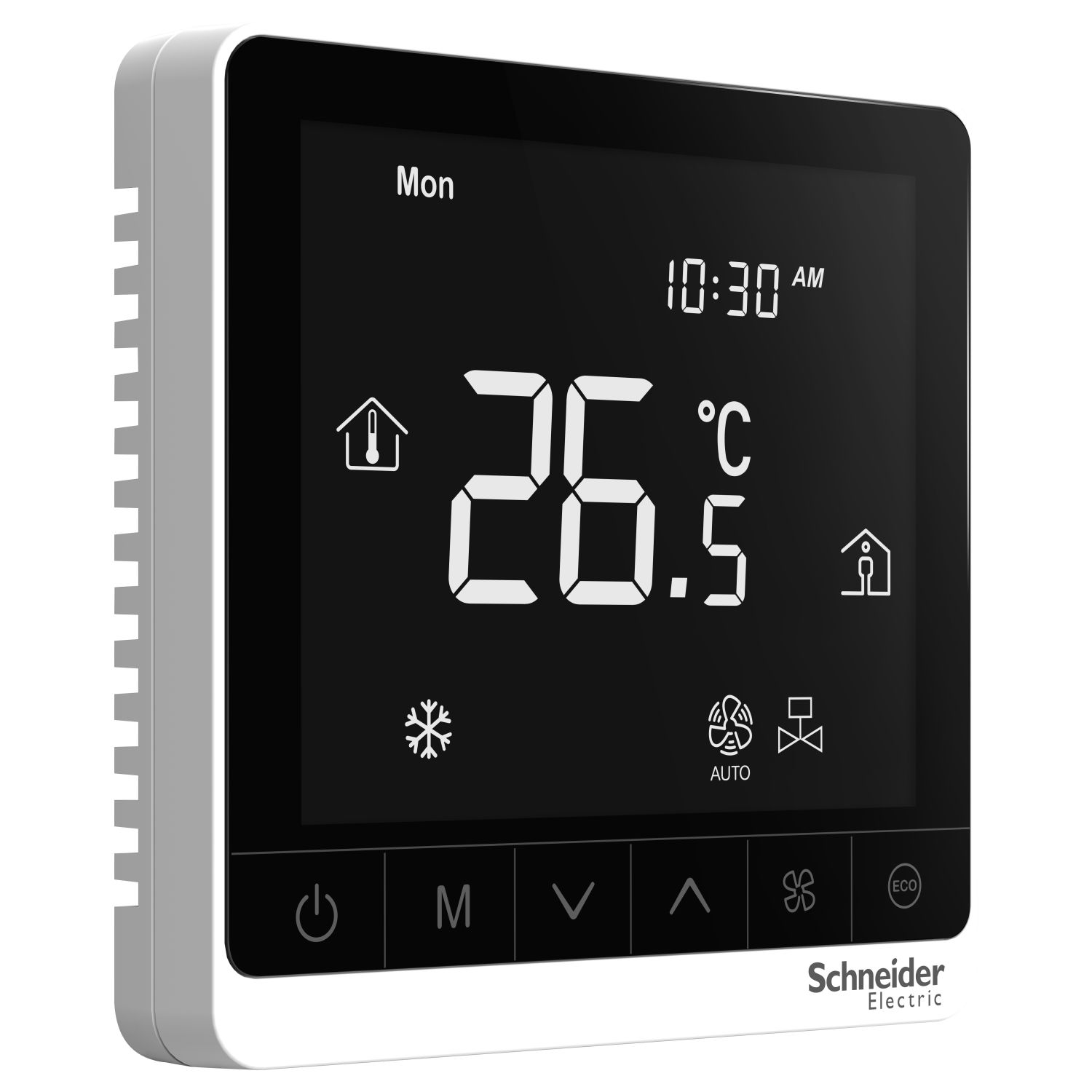

Picture of SpaceLogic thermostat, fan coil on/off, networking, touchscreen, 4P, ECM fan 0-10V, modbus, external sensor, 240V, white
SKU:

TC907-4FMSA

SpaceLogic thermostat, fan coil on/off, networking, touchscreen, 4P, ECM fan 0-10V, modbus, external sensor, 240V, white

Please Contact Sales to buy this Product. click here
SpaceLogic thermostat, fan coil on/off, networking, touchscreen, 4P, ECM fan 0-10V, modbus, external sensor, 240V, white
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Declaration of conformity
Catalogue
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet
SpaceLogic thermostat, fan coil on/off, networking, touchscreen, 4P, ECM fan 0-10V, modbus, external sensor, 240V, white

Products specifications

Attribute nameAttribute value
Main
Device short nameTC907
Sensor type100 kOhm NTC thermistor
RangeSpaceLogic
Product nameSpaceLogic TC900
Product or component typethermostat
Complementary
Device applicationfan
Depth40 mm
Market segmentresidential, healthcare, hotel, small buildings
Display typebacklit LCD screen
Width86 mm
Product specific application4-pipe system
Max power consumption in W1 W
Measurement accuracytemperature: +/- 1 °C,
Control typeelectronic, for fan, 2 positions ON-OFF button, for actuator,  touch screen, for thermostat
Colourblack
[Us] rated supply voltage90...240 V AC 50/60 Hz
Function availablelow temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment
Connections - terminalsscrew terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm²
Communication port protocolModbus
Number of outputs1 proportional
Output voltage0...10 V DC for electronic, 240 V AC 2 A for load, 240 V AC 5 A for relay
Height86 mm
Information displayedcurrent program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C
Network frequency60 Hz, 50 Hz
Housing colourwhite
Environment
IP degree of protectionIP20
Temperature setting range5-35 °C
Relative humidity5-95 %
Product certificationsCE
Pollution degree2
StandardsEN/IEC 60730-2-9, EN/IEC 60730-1
Ambient air temperature for operation0-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.5 cm
Package 1 Width10.5 cm
Package 1 Length12.3 cm
Package 1 Weight220.0 g
Unit Type of Package 22
Number of Units in Package 236
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight9.42 kg
Unit Type of Package 33
Number of Units in Package 3864
Package 3 Height105.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight241.08 kg
