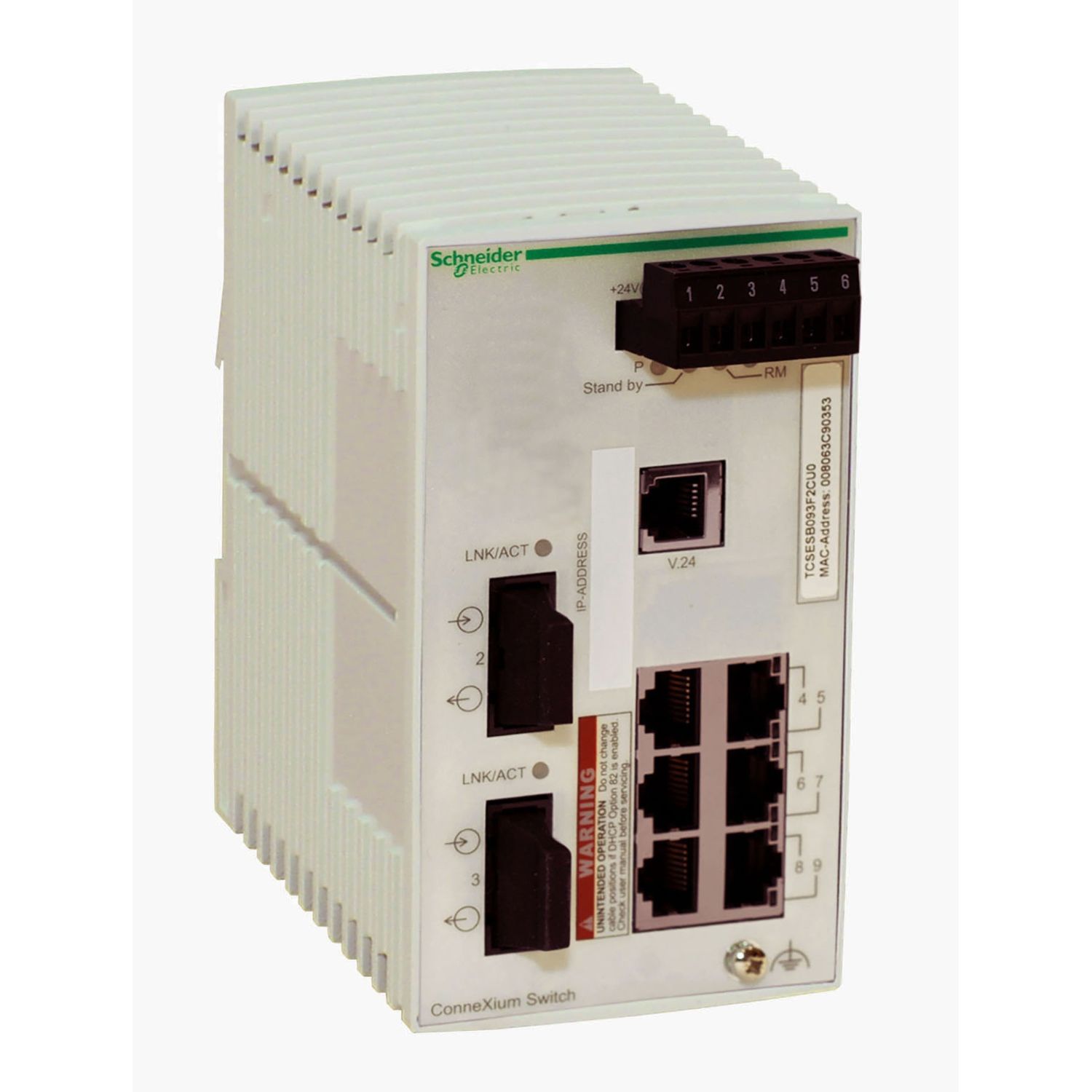

Picture of network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode
SKU:

TCSESB083F2CU0

network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode

Please Contact Sales to buy this Product. click here
Product Selector
network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
User guide
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 2 ports for multimode fiber optic. These basic managed switch modules are the cost performance options, suitable for single ring connection to DIO, HMI, SCADA and connecting multiple control systems. This product works at a power consumption of 8W and a rated voltage of 12 to 24V DC. It has a removable 6-pin power supply connector. Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. Along with RSTP, it also supports MRP protocol. It offers multicast protocols, time synchronization protocols, and port mirroring. These switches are applicable to mid size control systems connecting to larger networks, over long distances. It is CE, UL, RCM, EAC, UKCA certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute nameAttribute value
Main
ConceptTransparent Ready
Range of productConneXium
Maximum number of switches in cascadeunlimited
Cybersecurityrole-based access control
Communication port protocolMRP (Media Redundancy Protocol), SNTP, LLDP, RS232, SNMP, HTTPS, HTTP, Ethernet TCP/IP
Product or component typeEthernet TCP/IP managed switch
Port Ethernet100BASE-FX - 2 port(s) fiber optic, 10/100BASE-TX - 6 port(s) copper cable
Complementary
Diagnostics run timeself test, signal contact
Optic fiber length5 km 50/125 µm, 4 km 62.5/125 µm
Supply voltage limits9.6-32 V DC SELV
Ethernet cabling systemTF switches
Function availablesystem information
Maximum number of switches in a ring50
Attenuation0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
MarkingRCM, UL, CE
Communication serviceport mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W8 W
Height131 mm
[Us] rated supply voltage12...24 V
Maximum cable distance between devices100 m copper cable
Depth111 mm
Width74 mm
Local signallingDevice status, 1 dual colour LED (green/yellow) for channel diagnostic, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Ethernet serviceSNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, configuration via web server
Electrical connectionremovable connector 6 ways power supply
Net weight0.41 kg
RedundancyRSTP, HiPER ring
Alarm output1 voltfree contact 1 A
Mounting support35 mm symmetrical DIN rail
Transmission support mediummultimode optical fiber for copper cable, twisted shielded pairs cable CAT 5E for fiber optic
Integrated connection typeduplex SC fiber optic, shielded RJ45 copper cable
Alarm functiontemperature threshold, incorrect configuration, redundancy ring fault, switch fault, data link status, power supply fault
Environment
IP degree of protectionIP20
Relative humidity10-95 % non-condensing
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certificationsRCM, UL, CE
Ambient air temperature for operation0-60 °C
StandardsEN/IEC 61131, UL 508
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.300 cm
Package 1 Width16.100 cm
Package 1 Length23.300 cm
Package 1 Weight596.000 g
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.742 kg
