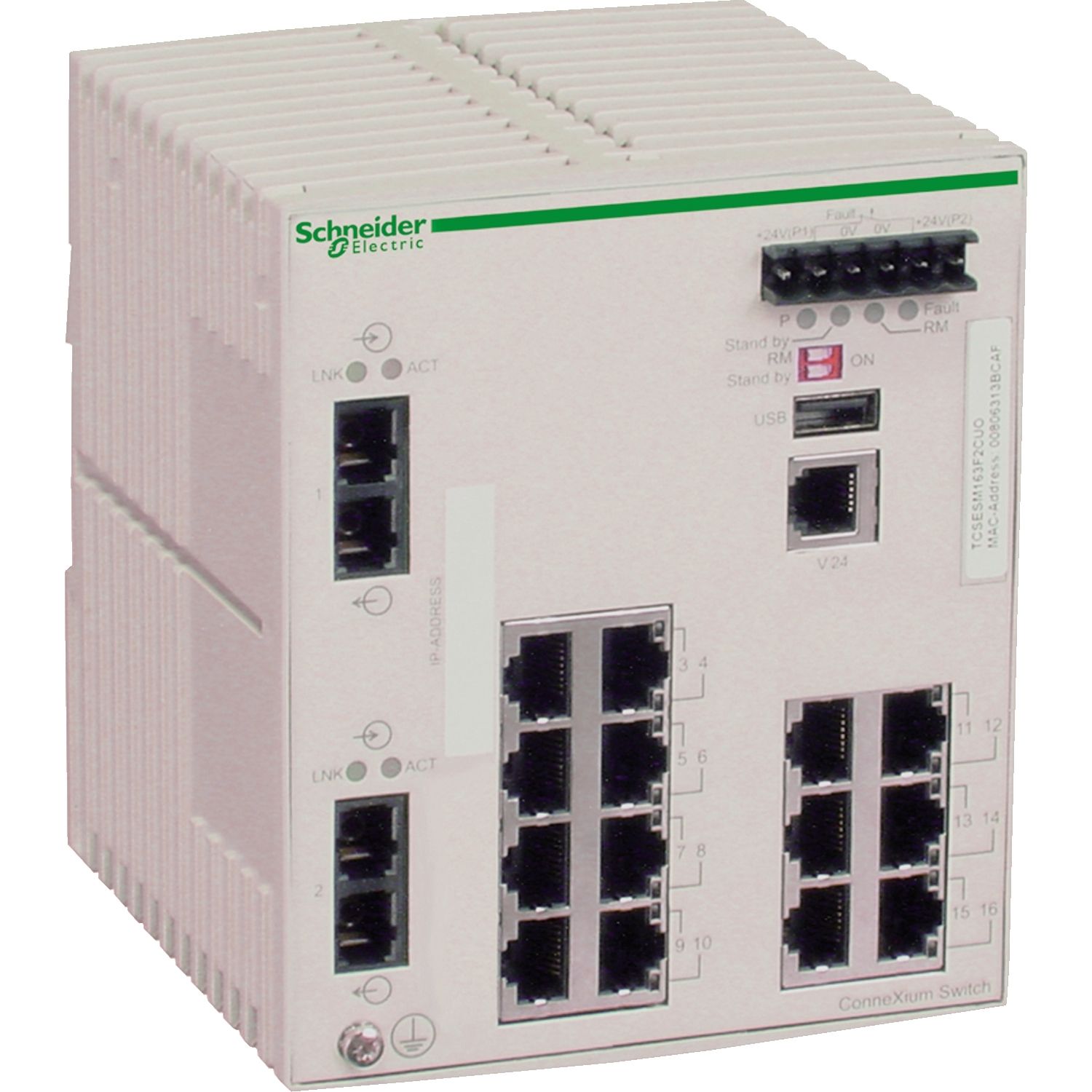

Picture of ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic single-mode
SKU:

TCSESM163F2CS0

ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic single-mode

$10,203.60 INC GST
Availability: Please contact our sales team on 1300 724 622.
ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic single-mode
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Cybersecurity port hardening
Communication port protocol MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 14 port(s) copper cable, 100BASE-FX - 2 port(s) fiber optic
Range of product ConneXium
Maximum number of switches in cascade unlimited
Complementary
Depth 111 mm
Width 111 mm
Diagnostics run time self test, signal contact
Optic fiber length 32.5 km 9/125 µm
Local signalling Device status, 1 LED per channel (yellow) for ACT, 1 LED per channel (green) for link status, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Supply voltage limits 18-30 V AC SELV, 9.6-60 V DC SELV
Ethernet cabling system TF switches
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server
Function available Trap log, report, system information, alarms (Traps)
Maximum number of switches in a ring 50
Electrical connection removable connector 6 ways power supply
Attenuation 0-16 dB (9/125 µm)
Net weight 0.6 kg
Redundancy redundant network coupling, RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Marking EtherNet/IP, RCM, UL, CE
Communication service address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 11.8 W
Mounting support 35 mm symmetrical DIN rail
Transmission support medium twisted shielded pairs cable CAT 5E for fiber optic, single mode optical fiber for copper cable
Integrated connection type shielded RJ45 copper cable, duplex SC fiber optic
Alarm function switch fault, redundancy ring fault, data link status, power supply fault
Height 131 mm
[Us] rated supply voltage 12...48 V
Maximum cable distance between devices 100 m copper cable
Environment
IP degree of protection IP20
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications GL, BV, ODVA EtherNet/IP, RCM, UL, CE
Standards IEC 61850-3, EN/IEC 61131, UL 508
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.7 cm
Package 1 Width 16.2 cm
Package 1 Length 23.5 cm
Package 1 Weight 881.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.976 kg
