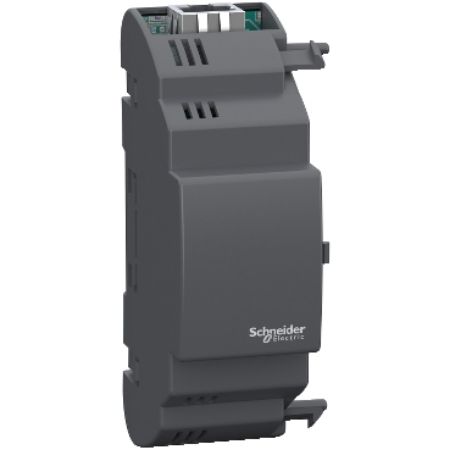

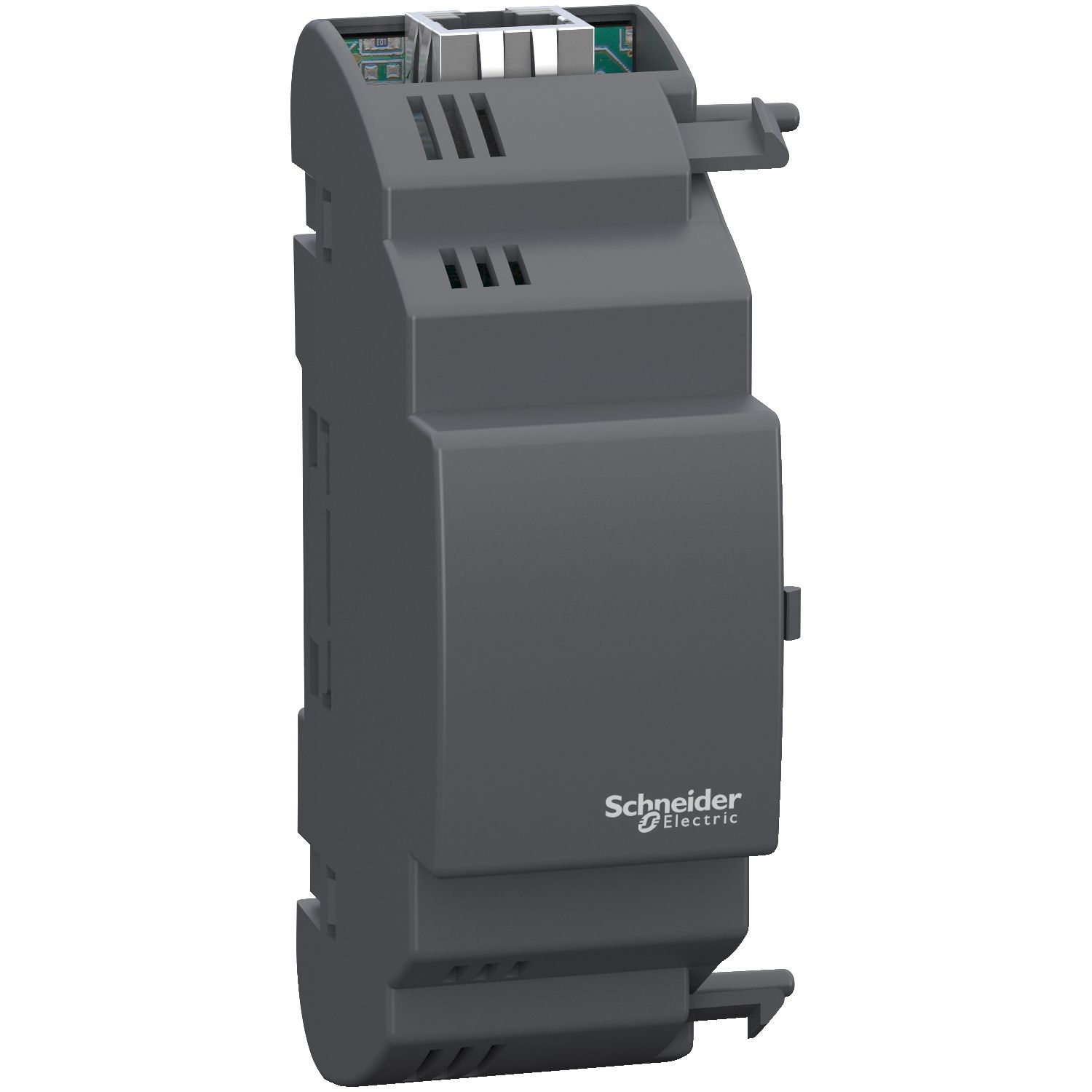

Picture of Modicon M171 Performance Plug-in Ethernet Modbus TCP
SKU:

TM171AETH

Modicon M171 Performance Plug-in Ethernet Modbus TCP

Please Contact Sales to buy this Product. click here
Modicon M171 Performance Plug-in Ethernet Modbus TCP
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Catalogue
Brochure
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This optional module provides a specific connection to the Modbus TCP, Ethernet, and BACnet IP buses. It has two screw terminal blocks as a communication port. It allows the HVAC controller to manage Data on the Modbus TCP, Ethernet, and BACnet IP networks. It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg. This communication module allows controllers to get an additional communication port. It is certified by CE, CSA, cURus, and EAC. It is compatible with M172 Optimized and M171 Performance logic controllers. It is sold in a 1-piece package. It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon M171
Communication port protocolModbus TCP, BACnet IP, SMTP, Ethernet, HTTP
Product or component typecommunication module
Complementary
Product compatibilitylogic controller M171 performance
Integrated connection typeEthernet RJ45 - twisted pair
Net weight0.077 kg
Supplyvia base board EVD/EVC
Physical interfaceRJ45 - 100BASE-TX
Environment
IP degree of protectionIP20
Relative humidity10-90 % without condensation
Ambient air temperature for storage-20-85 °C
MarkingCE
Ambient air temperature for operation-10-55 °C
Product certificationsCE, CSA, EAC, cURus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.0 cm
Package 1 Width9.1 cm
Package 1 Length18.5 cm
Package 1 Weight176.0 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.357 kg
