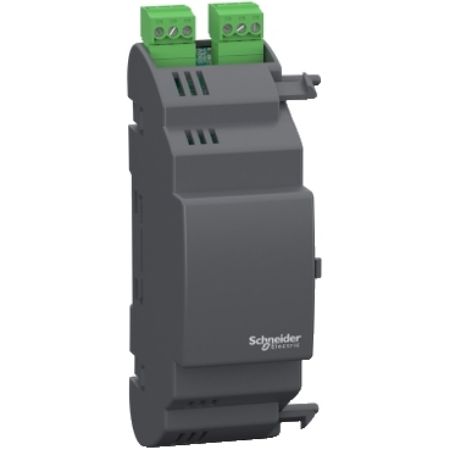

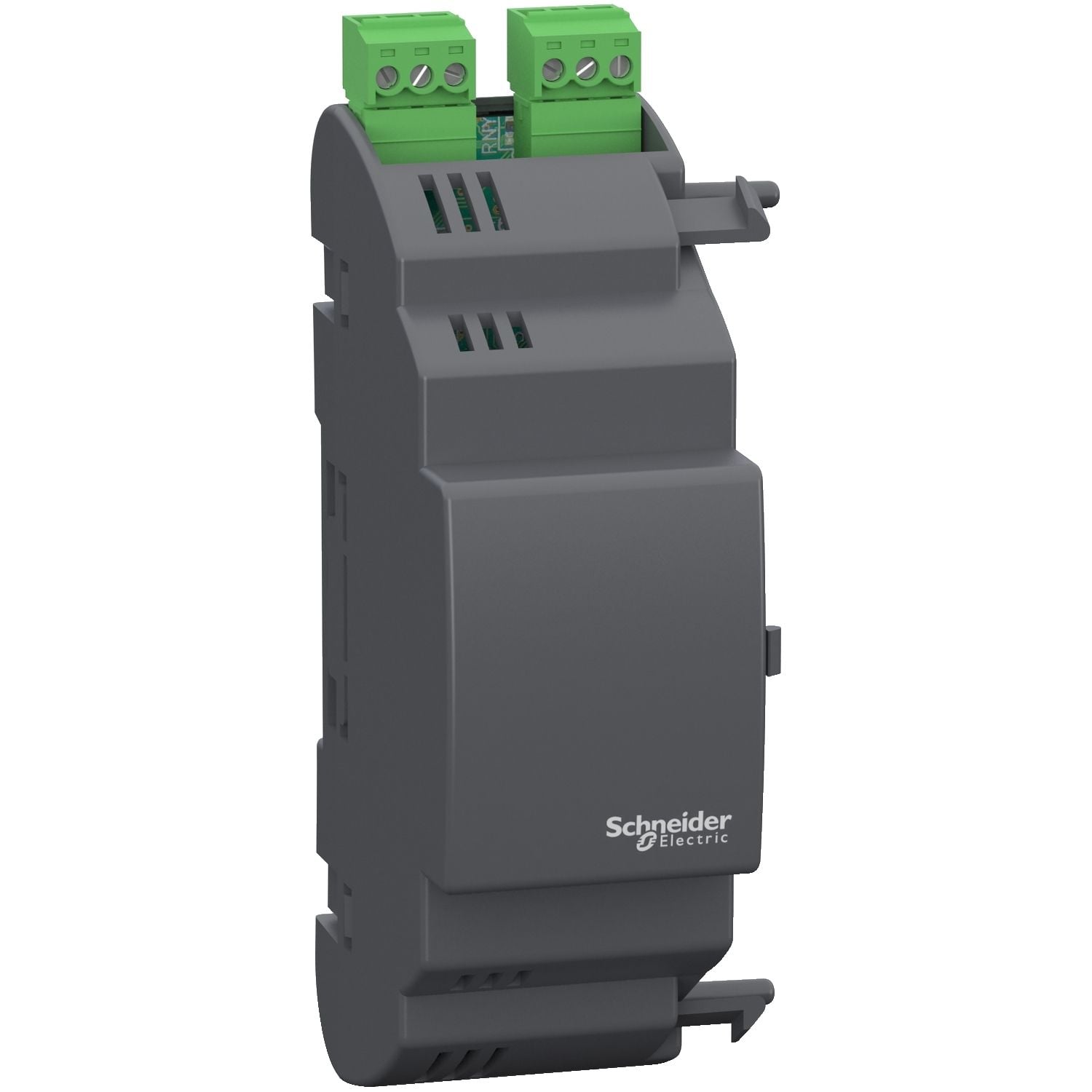

Picture of Modicon M171 Performance Plug-in Modbus SL
SKU:

TM171AMB

Modicon M171 Performance Plug-in Modbus SL

$130.44
Available for Shipping : 12-Jan-2025
Modicon M171 Performance Plug-in Modbus SL
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Brochure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This optional module provides a specific connection to the Modbus SL (RS485) bus. It has two screw terminal blocks as a communication port. It allows the HVAC controller to manage Data on the Modbus SL (RS485) bus. It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg. This communication module allows controllers to get an additional communication port. It is certified by CE, CSA, cURus, and EAC. It is compatible with M172 Optimized, M172 Performance, and M171 Performance logic controllers. It is sold in a 1-piece package. It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M171
Communication port protocol RS485, Modbus RTU
Product or component type communication module
Complementary
Product compatibility logic controller M171 performance, logic controller M172 performance
Electrical connection removable screw terminal block
Adjustment pitch 3.81 mm
Integrated connection type RS485 wire crimp - twisted pair
Net weight 0.077 kg
Supply via base board EVD/EVC
Physical interface 90° insertion - 2.5-2.5 mm² cable
Environment
IP degree of protection IP20
Relative humidity 10-90 % without condensation
Ambient air temperature for storage -20-85 °C
Marking CE
Ambient air temperature for operation -10-55 °C
Product certifications cURus, CE, CSA, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 9.1 cm
Package 1 Length 18.5 cm
Package 1 Weight 166.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.306 kg
