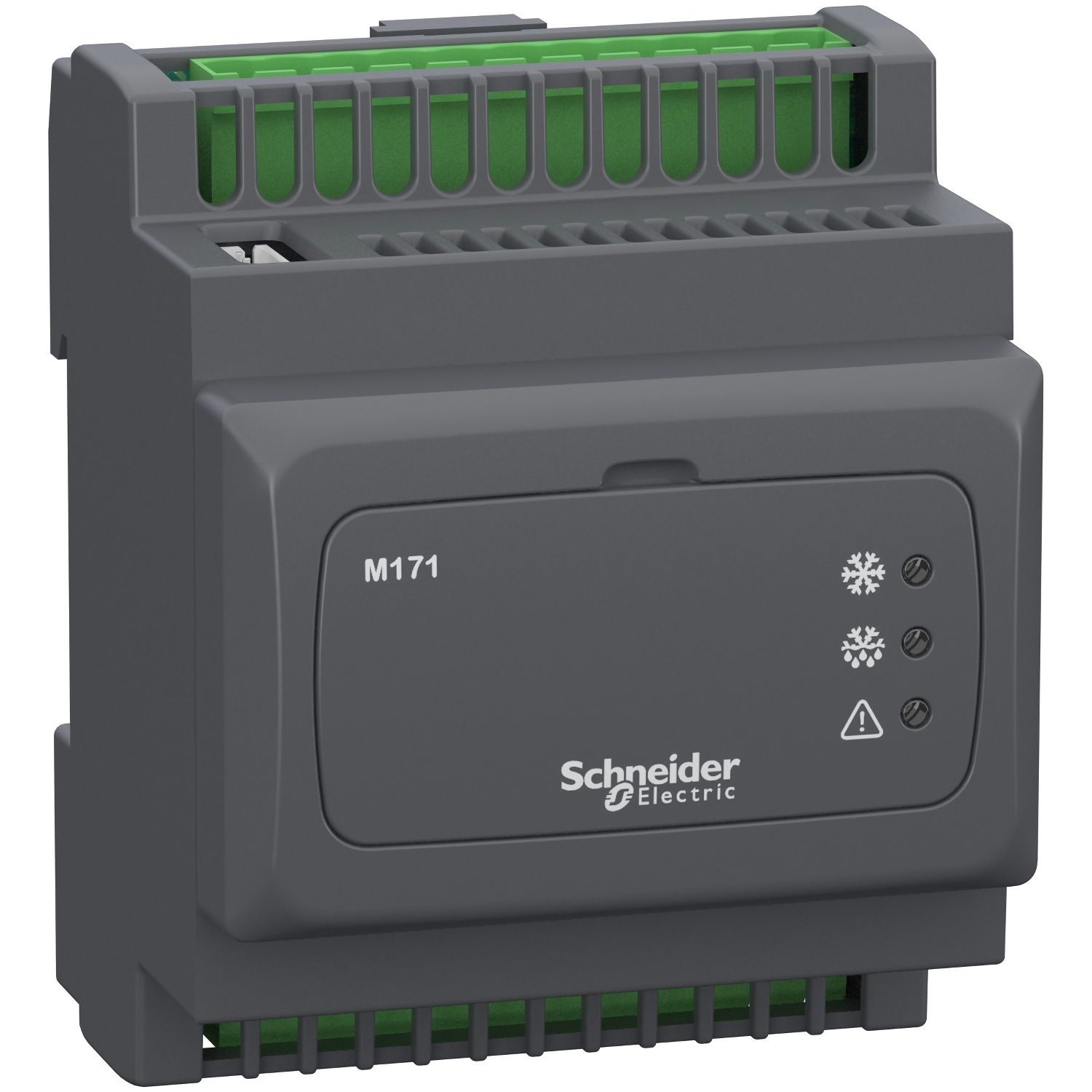

Picture of EEV Driver, Autonomous & Modbus
SKU:

TM171VEVM4

EEV Driver, Autonomous & Modbus

Please Contact Sales to buy this Product. click here
EEV Driver, Autonomous & Modbus
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Brochure
Instruction sheet
Product environmental
User guide
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This electronic valve driver is part of Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. It is a superheat EEVD for single valves. It has 2 digital inputs (volt-free), 4 analog inputs (2x NTC, 2x PT1000), 2 digital outputs (1 open collector, 1 SPST). It is designed to maintain the refrigerant superheat at the evaporator outlet around the desired value (superheat set point). Its rated supply voltage is24VAC/DC. It has 1 Modbus serial link - RS485 communication port. It measures 70.2mm wide, 87mm high, and 61.6mm deep, and weighs 0.190kg. It controls the flow of refrigerant entering a direct expansion evaporator. It has an 18-month warranty. It is compatible with controllers type M171, M172, and M173, a screw terminal block, and a battery backup device. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Product or component typecontroller
Range of productModicon M171
Complementary
Input/output number2 digital output(s), 2 digital input(s), 4 analog input(s), 8 (total)
Depth61.6 mm
Display typewithout display
Width70.2 mm
Discrete input number2
Discrete input logicsink or source (positive/negative)
Sensor power supply12-12 V DC, 5-5 V DC
[Us] rated supply voltage24 V +/- 10 % AC/DC
Number of port1 Modbus serial link - RS485
Analogue input number2 analog input Pt 1000, range: 4...20 mA or 0...5 V or 0...10 V, 2 analog input NTC
Mounting supportDIN rail
Discrete output number1 SPST, 1 for open collector
Height87 mm
Contacts usagevolt-free contacts
Environment
IP degree of protectionIP20
MarkingCE
Ambient air temperature for operation-5-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.500 cm
Package 1 Width9.100 cm
Package 1 Length18.500 cm
Package 1 Weight310.000 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.138 kg

Related products

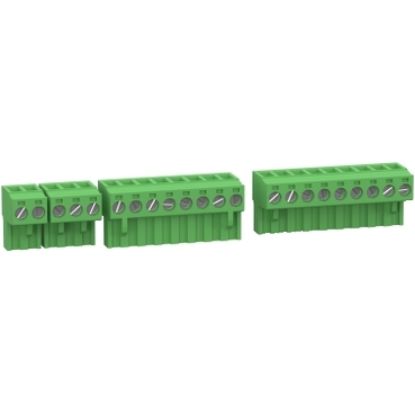

Picture of Modicon M171 EEV Driver Screw Terminal Blocks

Modicon M171 EEV Driver Screw Terminal Blocks

TM171ASCTBVEV
