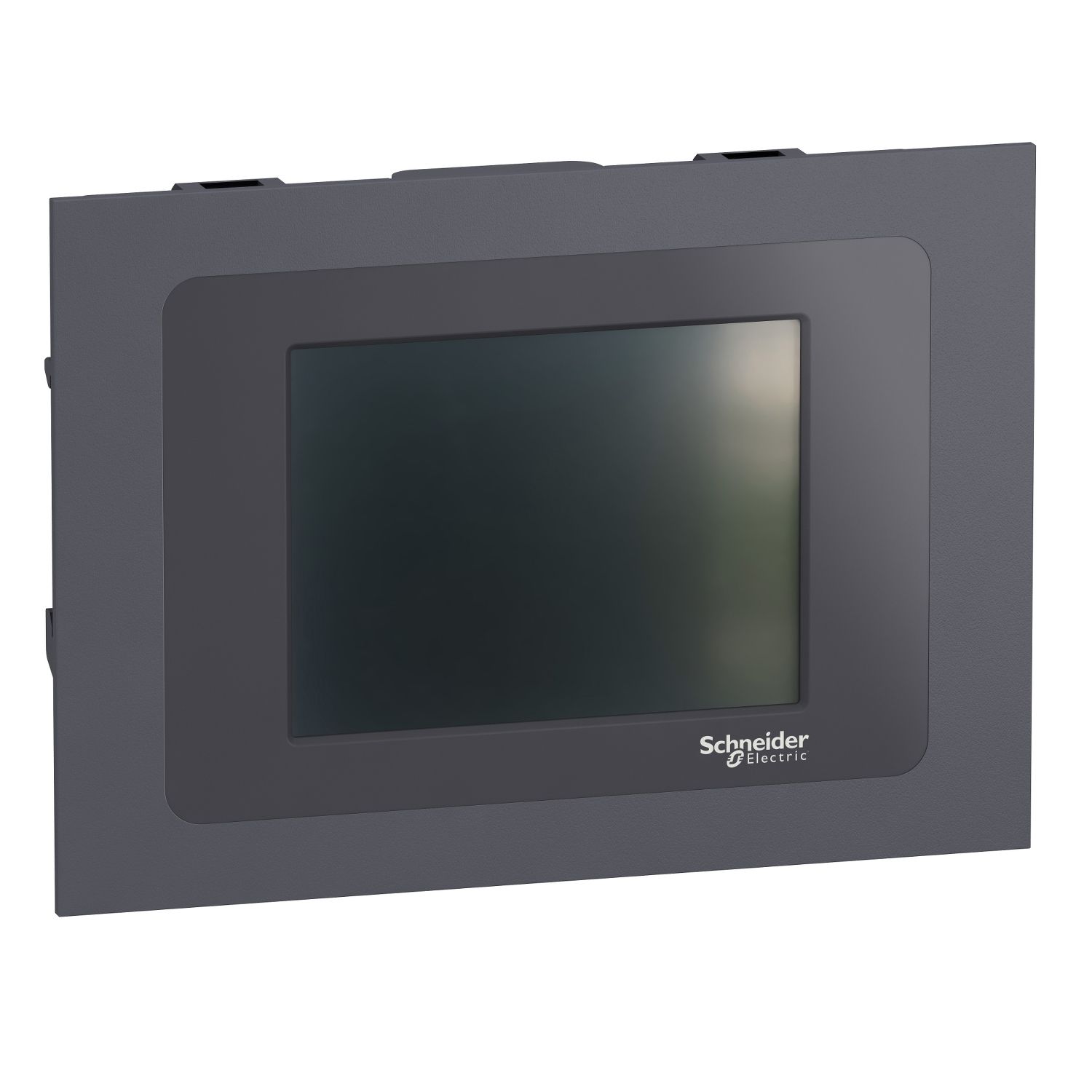

Picture of Modicon M172 Display Color TouchScreen Grey
SKU:

TM172DCLFG

Modicon M172 Display Color TouchScreen Grey

$633.97
Available for Shipping : 10-Dec-2024
Modicon M172 Display Color TouchScreen Grey
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
End of life manual
Product environmental
Instruction sheet
Catalogue
User guide
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is a remote color touch screen display. It is designed for remote control of plc, either indoor or outdoor uses. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP65 on front face. It measures 134mm wide, 35mm deep, 196mm high, and weighs 0,175kg. It is remote display for Modicon M172 logic controllers. It is certified by cURus, RCM, CE, CSA, and EAC. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for flush mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M171/M172
Product or component type display module
Supply external source
Complementary
Product compatibility logic controller M172, logic controller M171
Display type colour touchscreen, LCD display
Colour grey
[Us] rated supply voltage 24 V AC/DC
Power consumption in W 3.2 VA, 1.3 W
Height 96 mm
Depth 35 mm
Overvoltage category II
Width 134 mm
Net weight 0.175 kg
Display resolution 320 x 240 pixels
Environment
IP degree of protection IP65 front panel:
Ambient air temperature for storage -30-60 °C
Directives 2014/30/EU - electromagnetic compatibility
Pollution degree 2
Ambient air temperature for operation -20-60 °C
Standards UL 94, IEC 60730-2-9, IEC 61000-4-5, IEC 61000-4-11, IEC 60730-1, IEC 61000-4-4, IEC 61000-4-2, CAN/CSA-E60730-1, IEC 61000-4-6, IEC 61000-4-3, CSA E60730-2-9, UL 60730-2-9, UL 60730-1
Product certifications CSA, EAC, cURus, CE, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.2 cm
Package 1 Width 18.8 cm
Package 1 Length 9.4 cm
Package 1 Weight 288.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.049 kg

Related products

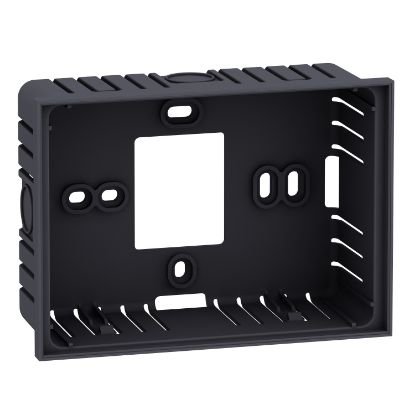

Picture of Modicon M172 Grey wall support display
