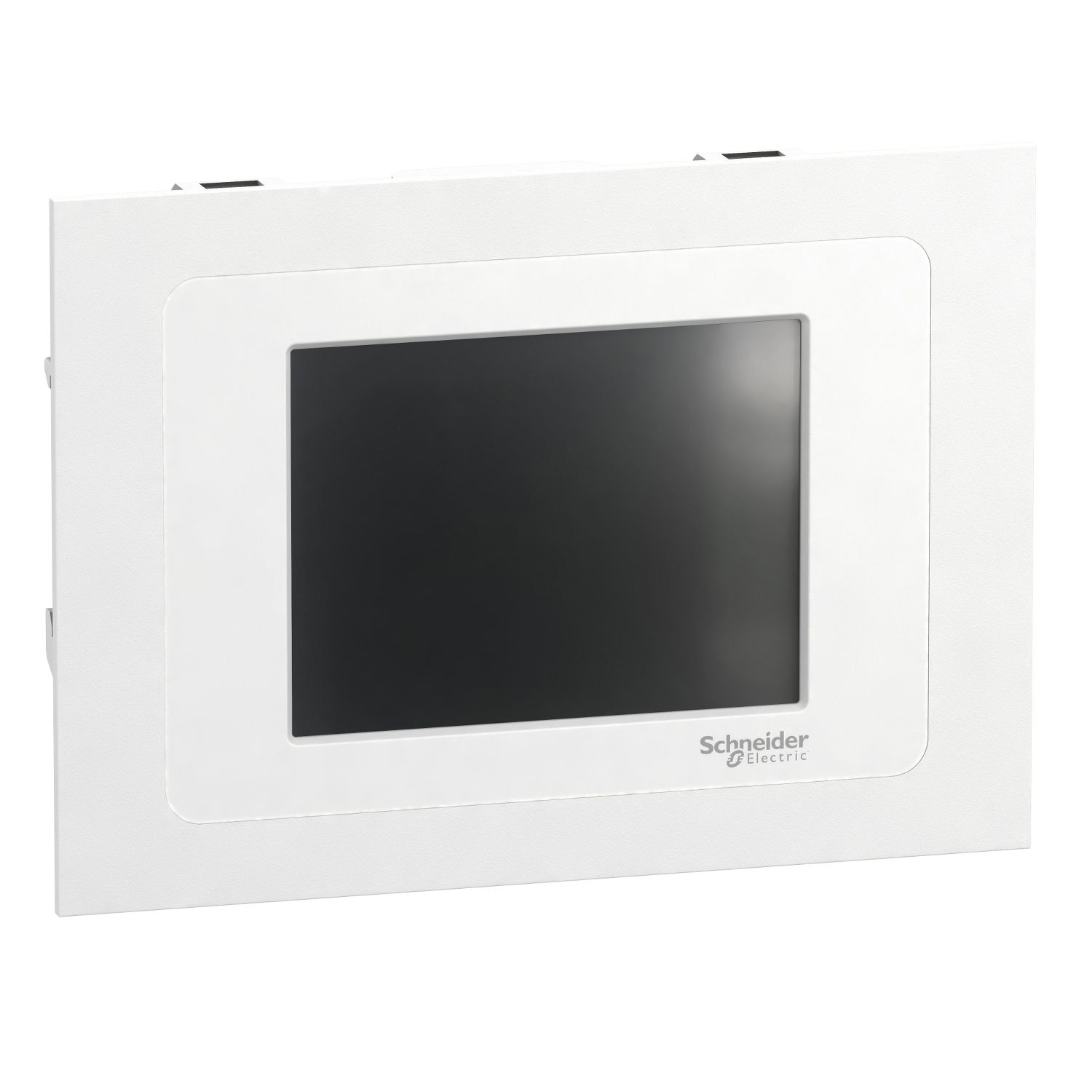

Picture of Modicon M172 Display Color TouchScreen White
SKU:

TM172DCLFW

Modicon M172 Display Color TouchScreen White

Please Contact Sales to buy this Product. click here
Modicon M172 Display Color TouchScreen White
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Brochure
End of life manual
Product environmental
Catalogue
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is a remote color touch screen display. It is designed for remote control of plc, either indoor or outdoor uses. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP65 on front face. It measures 134mm wide, 35mm deep, 196mm high, and weighs 0,175kg. It is remote display for Modicon M172 logic controllers. It is certified by cURus, RCM, CE, CSA, and EAC. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for flush mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon M171/M172
Product or component typedisplay module
Supplyexternal source
Complementary
Product compatibilitylogic controller M172, logic controller M171
Display typeLCD display, colour touchscreen
Colourwhite
[Us] rated supply voltage24 V AC/DC
Power consumption in W1.3 W, 3.2 VA
Height96 mm
Depth35 mm
Overvoltage categoryII
Width134 mm
Net weight0.175 kg
Display resolution320 x 240 pixels
Environment
IP degree of protectionIP65 front panel:
Ambient air temperature for storage-30-60 °C
Directives2014/30/EU - electromagnetic compatibility
Pollution degree2
Ambient air temperature for operation-20-60 °C
StandardsIEC 60730-2-9, IEC 61000-4-3, UL 60730-2-9, CSA E60730-2-9, IEC 61000-4-6, IEC 61000-4-4, UL 60730-1, IEC 61000-4-11, CAN/CSA-E60730-1, IEC 61000-4-5, IEC 60730-1, IEC 61000-4-2
Product certificationsEAC, CSA, CE, RCM, cURus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.5 cm
Package 1 Width9.2 cm
Package 1 Length18.8 cm
Package 1 Weight291.0 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight2.045 kg
