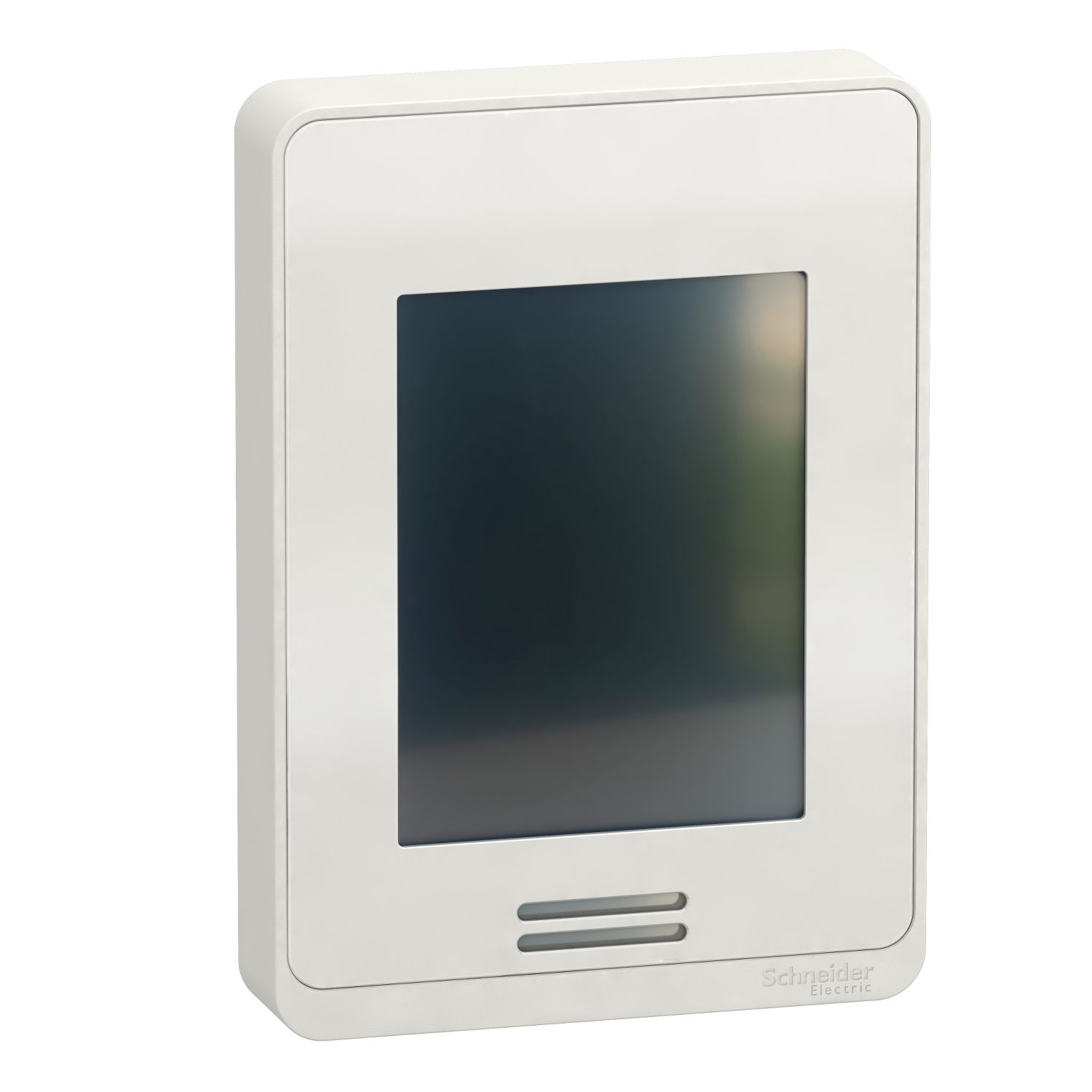

Picture of Modicon M172 Display Color TouchScreen, Temperature built-in sensor
SKU:

TM172DCLWT

Modicon M172 Display Color TouchScreen, Temperature built-in sensor

Please Contact Sales to buy this Product. click here
Modicon M172 Display Color TouchScreen, Temperature built-in sensor
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Brochure
End of life manual
Instruction sheet
Catalogue
User guide
Product environmental
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is powered with a 24VACDC supply and has a built-in sensor for Temperature control. It is designed for indoor use to control temperature with a built-in sensor. It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP20. It measures 86mm wide, 25mm deep, 120mm high, and weighs 0.340kg. It is remote display for Modicon M172 logic controllers. It is certified by CE, RCM, EAC and CTUVus. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for wall mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon M171/M172
Product or component typedisplay module
Supplyexternal source
Complementary
Product compatibilitylogic controller M172, logic controller M171
Display typecolour touchscreen, LCD display
Colourwhite
[Us] rated supply voltage24 V AC/DC
Power consumption in W1.3 W, 3.2 VA
Height120 mm
Depth25 mm
Analogue input typeNTC 10k temperature probe at 21 °C +/- 0.5 °C, NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C
Width86 mm
Net weight0.34 kg
Display resolution320 x 240 pixels
Environment
Ambient air temperature for storage-30-50 °C
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation0-50 °C
StandardsCSA C22.2 No 24, UL 873, EN 55032, EN 55024, IEC 60950-1
Product certificationscTUVus, CE, EAC, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width10.800 cm
Package 1 Length15.500 cm
Package 1 Weight225.000 g
Unit Type of Package 22
Number of Units in Package 211
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.051 kg
