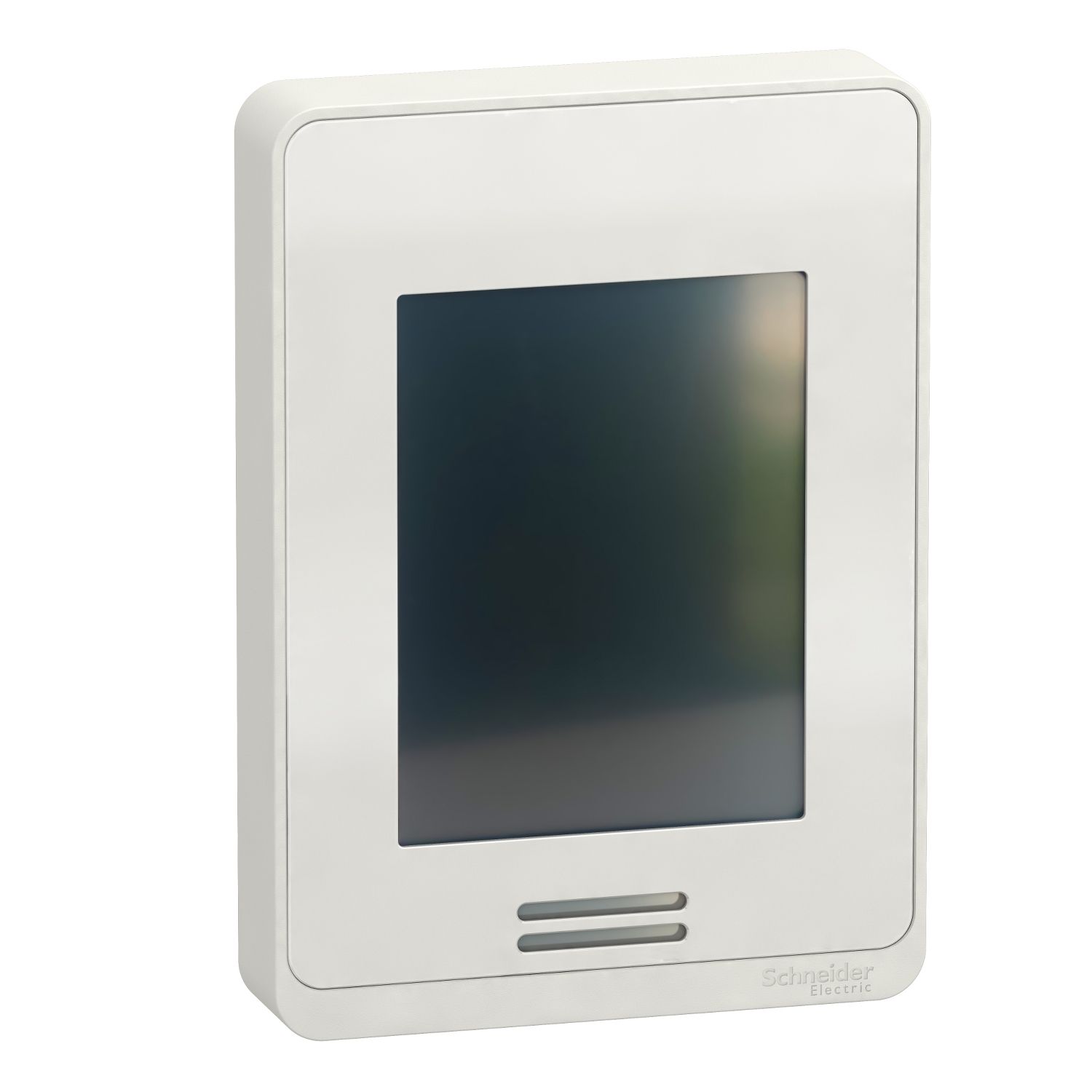

Picture of Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors
SKU:

TM172DCLWTH

Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors

Please Contact Sales to buy this Product. click here
Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Brochure
End of life manual
Instruction sheet
Catalogue
User guide
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon M171/M172 range, an offer of display modules for HVAC solutions. This display module features an LCD display and color touchscreen with 320 x 240 pixels display resolution. It offers external source supply with rated supply voltage of 24V AC/DC. Its dimensions are 86mm (width) x 25mm (depth) x 120mm (height). It weighs 0.34kg. This product is certified by CE, RCM, EAC and CTUVus. It meets EN 60950-1, EN 55024, CSA C22.2 No 24, EN 55032 and UL 873 standards. It is compatible with logic controller M172 and logic controller M171. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon M171/M172
Product or component typedisplay module
Supplyexternal source
Complementary
Product compatibilitylogic controller M171, logic controller M172
Display typecolour touchscreen, LCD display
Colourwhite
[Us] rated supply voltage24 V AC/DC
Power consumption in W1.3 W, 3.2 VA
Height120 mm
Depth25 mm
Analogue input typehumidity probe 10...90 % without condensation 80...90 % +/- 10 %, humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 10...20 % +/- 10 %, NTC 10k temperature probe at 21 °C +/- 0.5 °C, NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C
Width86 mm
Net weight0.34 kg
Display resolution320 x 240 pixels
Environment
Ambient air temperature for storage-30-50 °C
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation0-50 °C
StandardsIEC 60950-1, EN 55024, CSA C22.2 No 24, EN 55032, UL 873
Product certificationsCE, RCM, EAC, cTUVus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.0 cm
Package 1 Width10.6 cm
Package 1 Length15.5 cm
Package 1 Weight226.0 g
Unit Type of Package 22
Number of Units in Package 211
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight2.889 kg
