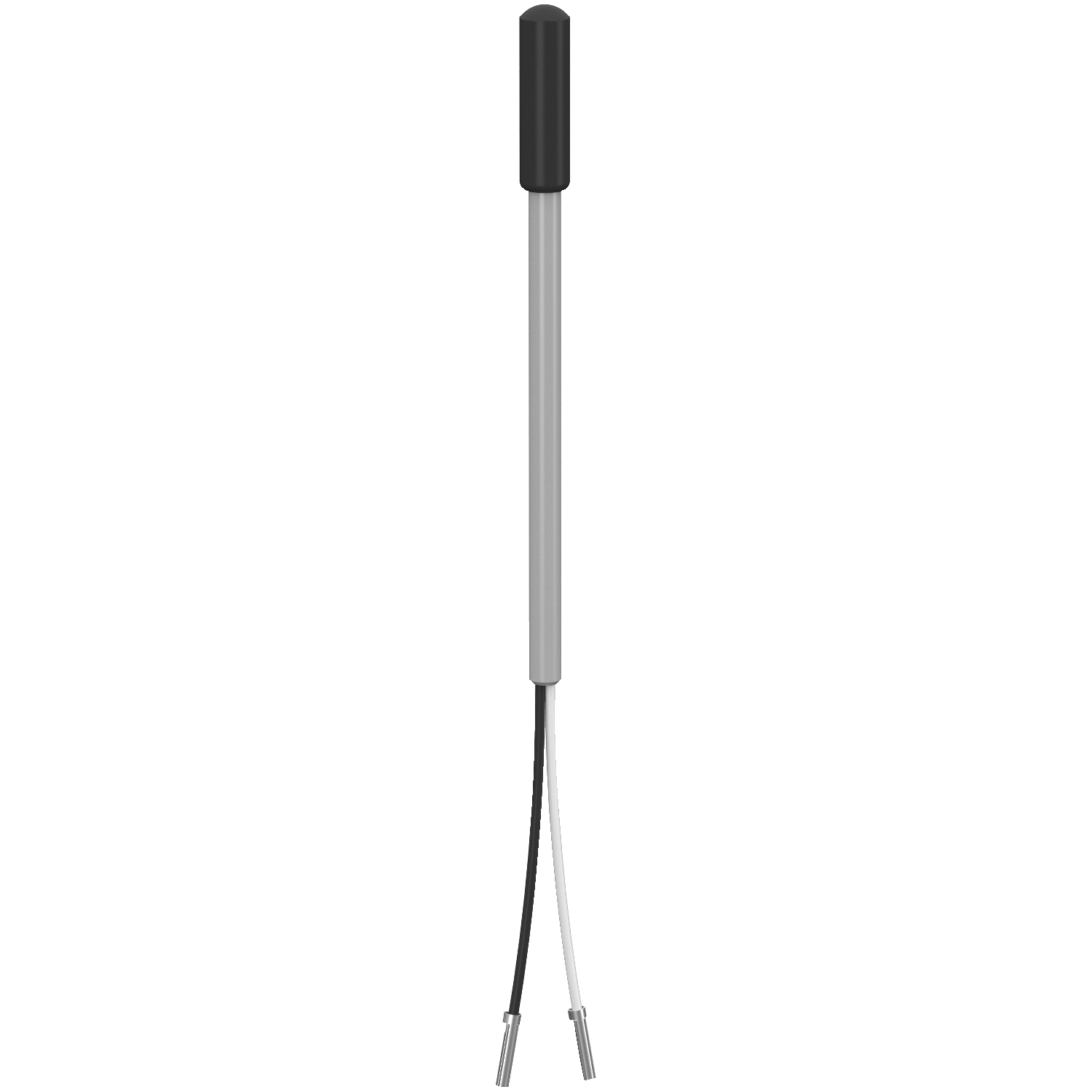

Picture of NTC 3,0m IP68 5x20 -50+110°C Grey
SKU:

TM1STNTCRN52030

NTC 3,0m IP68 5x20 -50+110°C Grey

$17.38
Available for Shipping : 25-Nov-2024
NTC 3,0m IP68 5x20 -50+110°C Grey
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Brochure
User guide
Product Page Link
Product Data Sheet
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 68 rate and is equipped with a 3-meter two-conductor cable. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 3m. It measures 20mm long, 5mm wide, and weighs 0.180kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 5-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part category thermal management accessory
Range of product Modicon M171
Accessory / separate part type probe
Product specific application temperature control
Complementary
Height 5 mm
Temperature probe type NTC
Depth 3000 mm
Width 20 mm
Connections - terminals cable with wire end ferrule
Net weight 0.04 kg
Electrical connection 2 conductors cable for controller side
Fixing mode clip-on
Mounting support cables
Cable length 3 m (+/- 3 %)
Environment
IP degree of protection IP68
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 10.5 cm
Package 1 Length 15 cm
Package 1 Weight 34 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 3.5 cm
Package 2 Width 10.5 cm
Package 2 Length 15 cm
Package 2 Weight 174 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 2.294 kg
