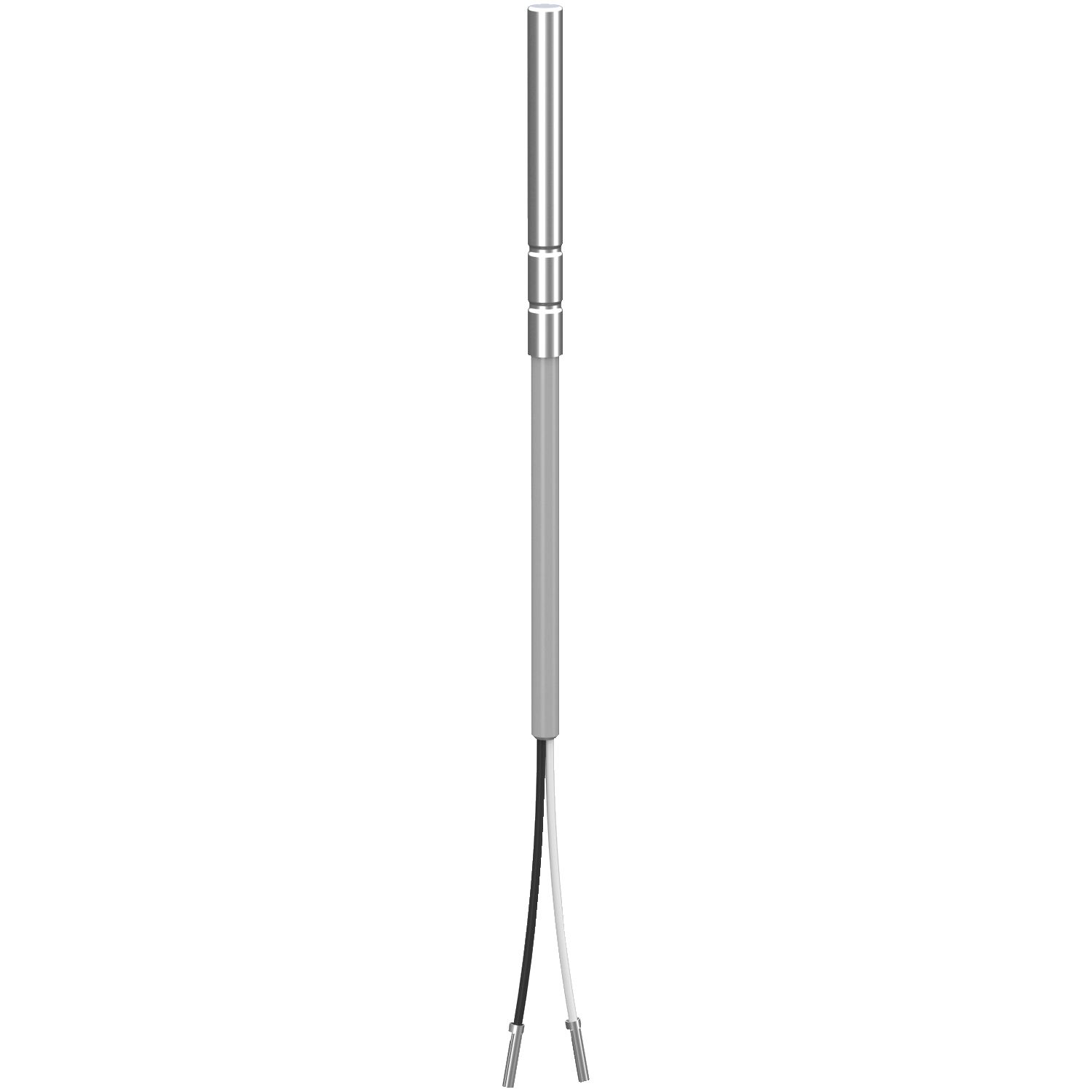

Picture of NTC 3,0m FAST IP67 4x40 -50+110°C Grey
SKU:

TM1STNTCSF44030

NTC 3,0m FAST IP67 4x40 -50+110°C Grey

Please Contact Sales to buy this Product. click here
NTC 3,0m FAST IP67 4x40 -50+110°C Grey
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Brochure
User guide
Product Page Link
Product Data Sheet
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 67 rate and is equipped with a 3-meter two-conductor cable. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 3m. It measures 40mm long, 4mm wide, and weighs 0.175kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 5-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part categorythermal management accessory
Range of productModicon M171
Accessory / separate part typeprobe
Product specific applicationtemperature control
Complementary
Height4 mm
Temperature probe typeNTC
Width40 mm
Connections - terminalscable with wire end ferrule
Electrical connection2 conductors cable for controller side
Fixing modeclip-on
Mounting supportcables
Cable length3 m (+/- 3 %)
Environment
IP degree of protectionIP67
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.000 cm
Package 1 Width11.000 cm
Package 1 Length12.500 cm
Package 1 Weight33.000 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height5.000 cm
Package 2 Width11.000 cm
Package 2 Length12.500 cm
Package 2 Weight170.000 g
Unit Type of Package 33
Number of Units in Package 360
Package 3 Height15.000 cm
Package 3 Width15.000 cm
Package 3 Length40.000 cm
Package 3 Weight2.241 kg
