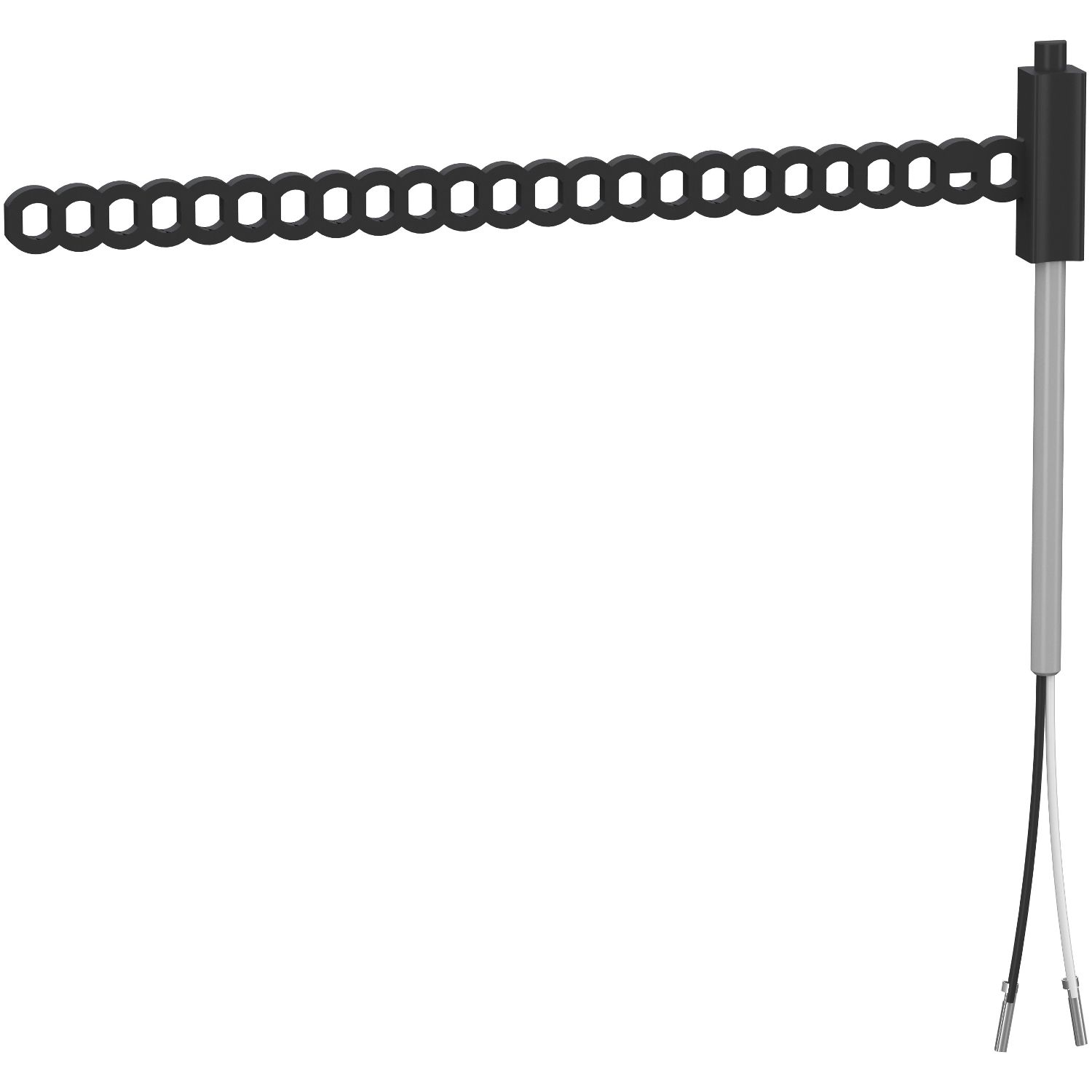

Picture of NTC 1,5m IP68 6x20 TPE w/ strap Grey
SKU:

TM1STNTCTN62015

NTC 1,5m IP68 6x20 TPE w/ strap Grey

Please Contact Sales to buy this Product. click here
NTC 1,5m IP68 6x20 TPE w/ strap Grey
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 22-Nov-2024
Catalogue
Brochure
User guide
Product Page Link
Product Data Sheet
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable, and with a strap. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 1.5m. It measures 20mm long, 6mm wide, and weighs 0.152/kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 8-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part categorythermal management accessory
Range of productModicon M171
Accessory / separate part typeprobe
Product specific applicationtemperature control
Complementary
Height6 mm
Temperature probe typeNTC
Width20 mm
Connections - terminalscable with wire end ferrule
Electrical connection2 conductors cable for controller side
Fixing modeclip-on
Mounting supportcables
Cable length1.5 m (+/- 3 %)
Environment
IP degree of protectionIP68
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.000 cm
Package 1 Width3.000 cm
Package 1 Length10.000 cm
Package 1 Weight18.500 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height3.000 cm
Package 2 Width10.500 cm
Package 2 Length17.500 cm
Package 2 Weight152.000 g
Unit Type of Package 33
Number of Units in Package 3112
Package 3 Height15.000 cm
Package 3 Width15.000 cm
Package 3 Length40.000 cm
Package 3 Weight2.269 kg
Unit Type of Package 44
Number of Units in Package 43584
Package 4 Height75.000 cm
Package 4 Width80.000 cm
Package 4 Length60.000 cm
Package 4 Weight80.608 kg
