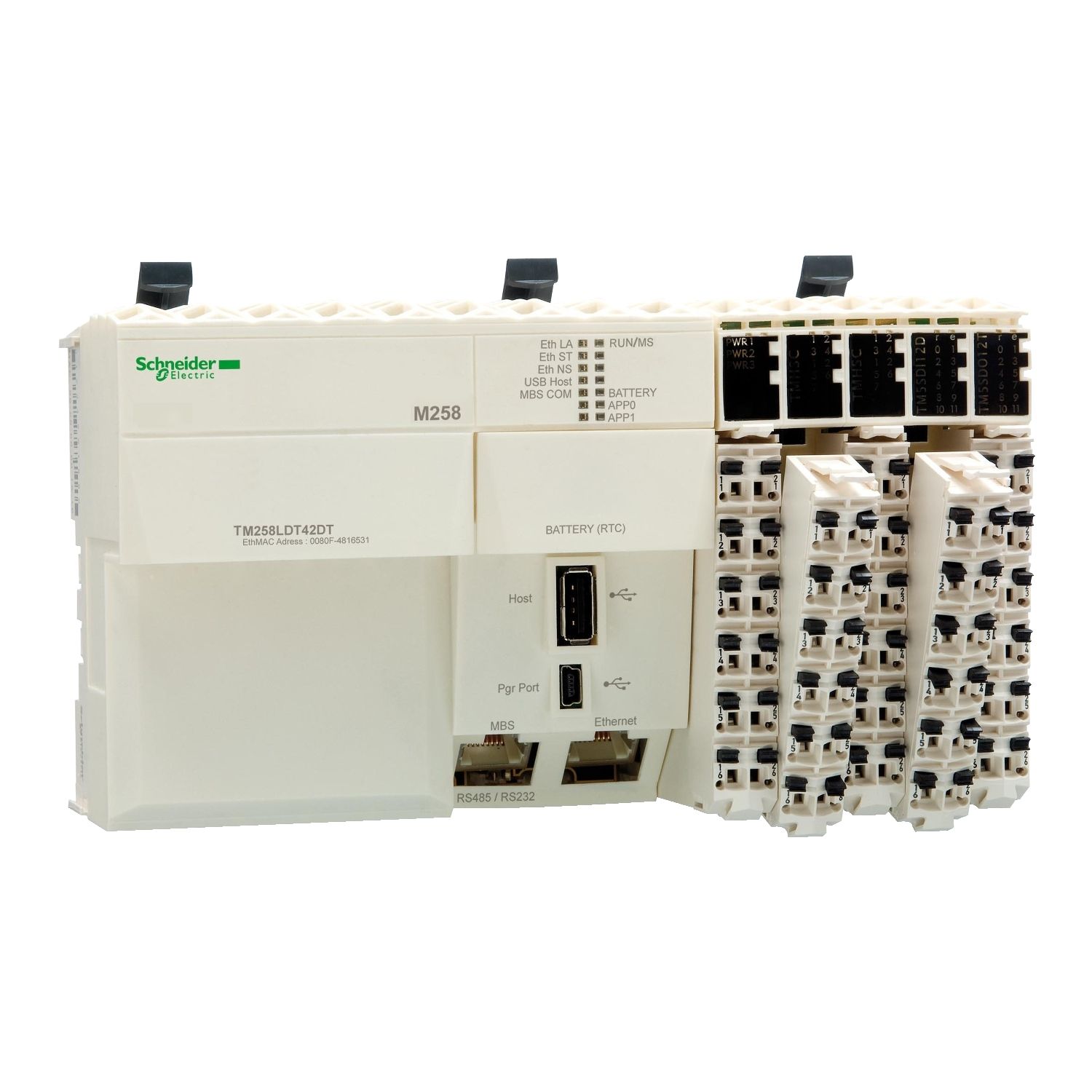

Picture of logic controller, Modicon M258, compact base, 42 IO, 24V DC
SKU:

TM258LD42DT

logic controller, Modicon M258, compact base, 42 IO, 24V DC

Please Contact Sales to buy this Product. click here
logic controller, Modicon M258, compact base, 42 IO, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
User guide
End of life manual
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon M258 range, an offer of logic controllers for high performance machine builders. It has 42 logic I/O and it is supplied with 24V dc, and embeds 5 communication ports, 1 RS232/RS485 serial link, 1 USB mini-B programming port, 1 USB type A program transfer port, 1 Ethernet port and 1 CANopen port. It is supplied with I/O modules with a removable terminal block with locking lever and a display block showing the I/O states, power supply module with removable terminal block and locking lever. This controller embeds a performant CPU (22ns/inst), several communication ports as Ethernet & CANopen master and advanced built-in features as data logging, WebServer and FTP server. Discrete input logic type are sink for fast inputs, sink for regular inputs, and source for logic inputs. Discrete output logic type is source. There is an isolation between channels 500Vrms and internal logic and no isolation between channels. It supports 128MB flash and 64MB internal RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.5kg. It is suitable for used in general machine control, conveying and packaging applications. This product is certified by CE, GOST-R CSA, C-Tick and CULus. It meets IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142 and UL 508 standards. The capacity of M258 logic controllers can be enhanced with the Modicon TM5 expansion module offer. This controller is also equipped with a locking lever for mounting/dismounting on symmetrical DIN rail. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. 30% saving time in assembly, wiring and commissioning.

Products specifications

Attribute nameAttribute value
Main
Discrete I/O number42
Discrete output number4 fast output, 12 output
Range of productModicon M258
Product specific application-
Product or component typelogic controller
Complementary
Memory descriptioninternal RAM 64 MB, flash 128 MB
Discrete input number4 for regular input, 12 for input, 10 for fast input
Supply voltage limits20.4-28.8 V
Discrete output voltage24 V DC
Configurable filtering time4 ms for fast input/regular input and fast output, 12 ms for fast input/regular input and fast output, 1.5 ms for fast input/regular input and fast output, 0 ms for fast input/regular input and fast output
Voltage state 0 guaranteed<= 5 V for regular input, <= 5 V for fast output, <= 5 V for fast input
Discrete output current4 mA for fast output
MarkingCE
Discrete output logicsource
Height99 mm
Maximum cable distance between devices<30 m for regular input,  <30 m for fast output,  <30 m for fast input
Data backed upvariables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy
Counting input number8 counting input(s) at 200 kHz
[Us] rated supply voltage24 V DC for main supply, 24 V DC for I/O power segment, 24 V DC for embedded expert modules power
Depth85 mm
Realtime clockwith user calibration clock, clock drift <= 6 s/month, without any user calibration clock, clock drift < 30 s/month at 25-25 °C
Width175 mm
Discrete input current4 mA for regular input, 4 mA for fast input
Local signalling1 LED red for BATT (battery status), 1 LED green/yellow for Eth LA (Ethernet activity), 1 LED green/red for USB host, 1 LED green/red for RUN/MS (module status), 1 LED green/red for Eth ST (Ethernet status), 1 LED green/red for Eth NS (Ethernet network status), 1 LED green/red for APP1, 1 LED green/red for APP0, 1 LED for MBS COM, 1 LED for CAN0 STS, 1 LED per channel for I/O state
Peak current1.2 A (duration = > 70 s) for main supply, 50 kA (duration = <= 150 s) for embedded expert modules power, 25 kA (duration = <= 500 s) for I/O power segment, 100 kA (duration = <= 70 s) for main supply
Output voltage limits19.2...28.8 V
Voltage state 1 guaranteed>= 15 V for regular input, >= 15 V for fast output, >= 15 V for fast input
Isolation between channels and internal logic500 Vrms AC
Isolation between channelsnone
Net weight0.5 kg
Power consumption in W13.03 W
Discrete input voltage typeDC
Mounting supportsymmetrical DIN rail
Integrated connection type1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s, 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s, 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX, 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps
Discrete input voltage24 V
[In] rated current10 A for I/O power segment, 0.25 A for main supply, 0.04 A for embedded expert modules power
Input impedance6 kOhm for regular input, 6 kOhm for fast input
Anti bounce filtering2 µs...4 ms configurable fast input/regular input and fast output
Discrete input logicsource for input, sink for regular input, sink for fast input
Environment
Resistance to fast transients2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity5-95 % without condensation
Ambient air temperature for storage-25-70 °C
Surge withstand1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree2 conforming to IEC 60664
Electromagnetic compatibilityEN/IEC 61000-4-6
Disturbance radiated/conductedCISPR 11
IP degree of protectionIP20 conforming to IEC 61131-2
Ambient air temperature for operation0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Resistance to electromagnetic fields10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude0...2000 m
Shock resistance15 gn for 11 ms
Vibration resistance3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude0-3000 m
StandardsCSA C22.2 No 213, IEC 61131-2, UL 508, CSA C22.2 No 142
Product certificationsGOST-R, cULus, CSA, C-Tick
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.000 cm
Package 1 Width15.500 cm
Package 1 Length31.500 cm
Package 1 Weight766.000 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight5.534 kg
