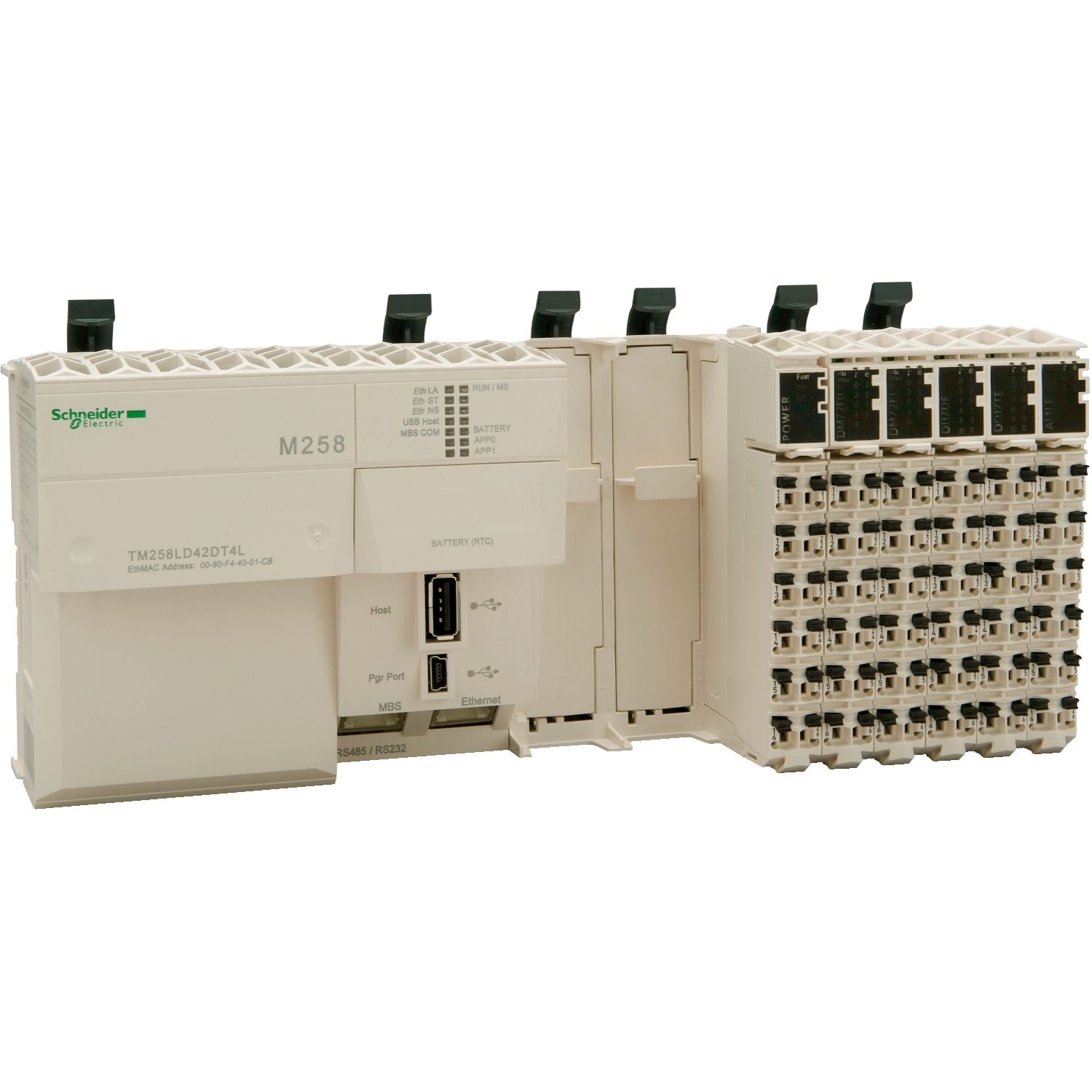

Picture of logic controller, Modicon M258, compact base, 42 + 4 IO, 24V DC
SKU:

TM258LD42DT4L

logic controller, Modicon M258, compact base, 42 + 4 IO, 24V DC

$3,831.08
Available for Shipping : 10-Dec-2024
logic controller, Modicon M258, compact base, 42 + 4 IO, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
End of life manual
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon M258 range, an offer of logic controllers for high performance machine builders. It has 42 logic I/O and it is supplied with 24V dc, and embeds 5 communication ports, 1 RS232/RS485 serial link, 1 USB mini-B programming port, 1 USB type A program transfer port, 1 Ethernet port and 1 CANopen port. Plus 2 free slots PCI. It is supplied with I/O modules with a removable terminal block with locking lever and a display block showing the I/O states, power supply module with removable terminal block and locking lever. This controller embeds a performant CPU (22ns/inst), several communication ports as Ethernet & CANopen master and advanced built-in features as data logging, WebServer and FTP server. Discrete input logic type are sink for fast inputs, sink for regular inputs, and source for logic inputs. Analog input type are current 0mA to 20mA or 4mA to 20mA, voltage +/- 10V. Discrete output logic type is source. There is an isolation between channels 500Vrms and internal logic and no isolation between channels. It supports 128MB flash and 64MB internal RAM memory. It is an IP20 rated product. Its dimensions are 237.5mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.77kg. It is suitable for used in general machine control, conveying and packaging applications. This product is certified by CE, GOST-R CSA, C-Tick and CULus. It meets IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142 and UL 508 standards. The capacity of M258 logic controllers can be enhanced with the Modicon TM5 expansion module offer. This controller is also equipped with a locking lever for mounting/dismounting on symmetrical DIN rail. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. 30% saving time in assembly, wiring and commissioning.

Products specifications

Attribute name Attribute value
Main
Discrete I/O number 42
Discrete output number 4 fast output, 12 output
Range of product Modicon M258
Product specific application -
Analogue input number 4
Product or component type logic controller
Complementary
Memory description internal RAM 64 MB, flash 128 MB
Discrete input number 4 for regular input, 12 for input, 10 for fast input
Analogue input resolution 12 bits
Supply voltage limits 20.4-28.8 V
Discrete output voltage 24 V DC
Configurable filtering time 4 ms for fast input/regular input and fast output, 12 ms for fast input/regular input and fast output, 1.5 ms for fast input/regular input and fast output, 0 ms for fast input/regular input and fast output
Voltage state 0 guaranteed <= 5 V for regular input, <= 5 V for fast output, <= 5 V for fast input
Discrete output current 4 mA for fast output
Marking CE
Discrete output logic source
Height 99 mm
Maximum cable distance between devices <30 m for regular input,  <30 m for fast output,  <30 m for fast input
Data backed up variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy
Counting input number 8 counting input(s) at 200 kHz
[Us] rated supply voltage 24 V DC for main supply, 24 V DC for I/O power segment, 24 V DC for embedded expert modules power
Analogue input type voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA
Depth 85 mm
Realtime clock with user calibration clock, clock drift <= 6 s/month, without any user calibration clock, clock drift < 30 s/month at 25-25 °C
Width 237.5 mm
Discrete input current 4 mA for regular input, 4 mA for fast input
Local signalling 1 LED red for BATT (battery status), 1 LED green/yellow for Eth LA (Ethernet activity), 1 LED green/red for USB host, 1 LED green/red for RUN/MS (module status), 1 LED green/red for Eth ST (Ethernet status), 1 LED green/red for Eth NS (Ethernet network status), 1 LED green/red for APP1, 1 LED green/red for APP0, 1 LED for MBS COM, 1 LED for CAN0 STS, 1 LED per channel for I/O state
Peak current 1.2 A (duration = > 70 s) for main supply, 50 kA (duration = <= 150 s) for embedded expert modules power, 25 kA (duration = <= 500 s) for I/O power segment, 100 kA (duration = <= 70 s) for main supply
Output voltage limits 19.2...28.8 V
Voltage state 1 guaranteed >= 15 V for regular input, >= 15 V for fast output, >= 15 V for fast input
Isolation between channels and internal logic 500 Vrms AC
Isolation between channels none
Net weight 0.77 kg
Power consumption in W 14.14 W
Discrete input voltage type DC
Mounting support symmetrical DIN rail
Integrated connection type 2 free slots PCI, 1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s, 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s, 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX, 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps
Discrete input voltage 24 V
[In] rated current 0.31 A for main supply, 10 A for I/O power segment, 0.04 A for embedded expert modules power
Input impedance 6 kOhm for regular input, 6 kOhm for fast input
Anti bounce filtering 2 µs...4 ms configurable fast input/regular input and fast output
Discrete input logic source for input, sink for regular input, sink for fast input
Environment
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude 0...2000 m
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Standards UL 508, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2
Product certifications C-Tick, GOST-R, CSA, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.300 cm
Package 1 Width 15.800 cm
Package 1 Length 37.000 cm
Package 1 Weight 926.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.499 kg
