SKU:

TM262L01MESE8T

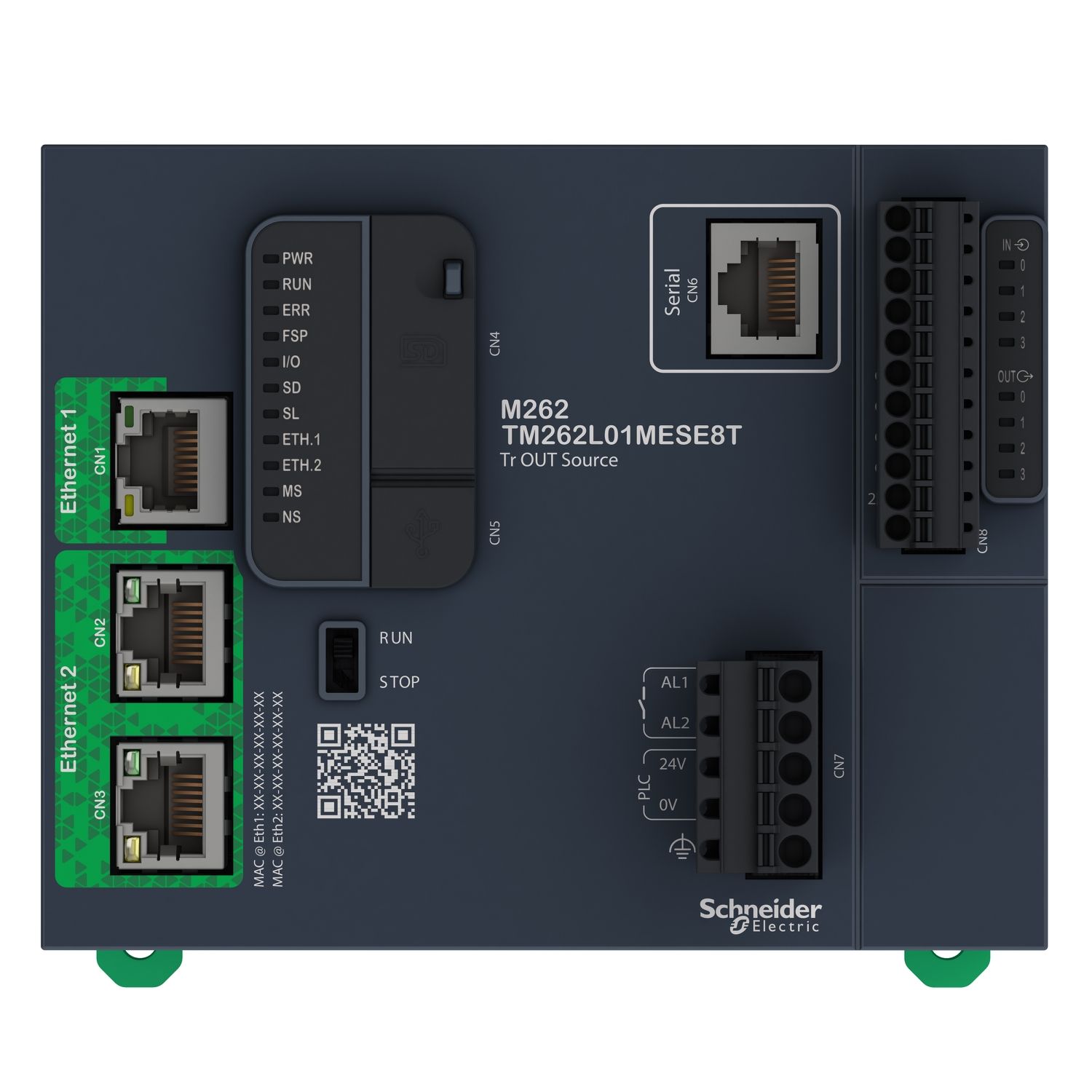

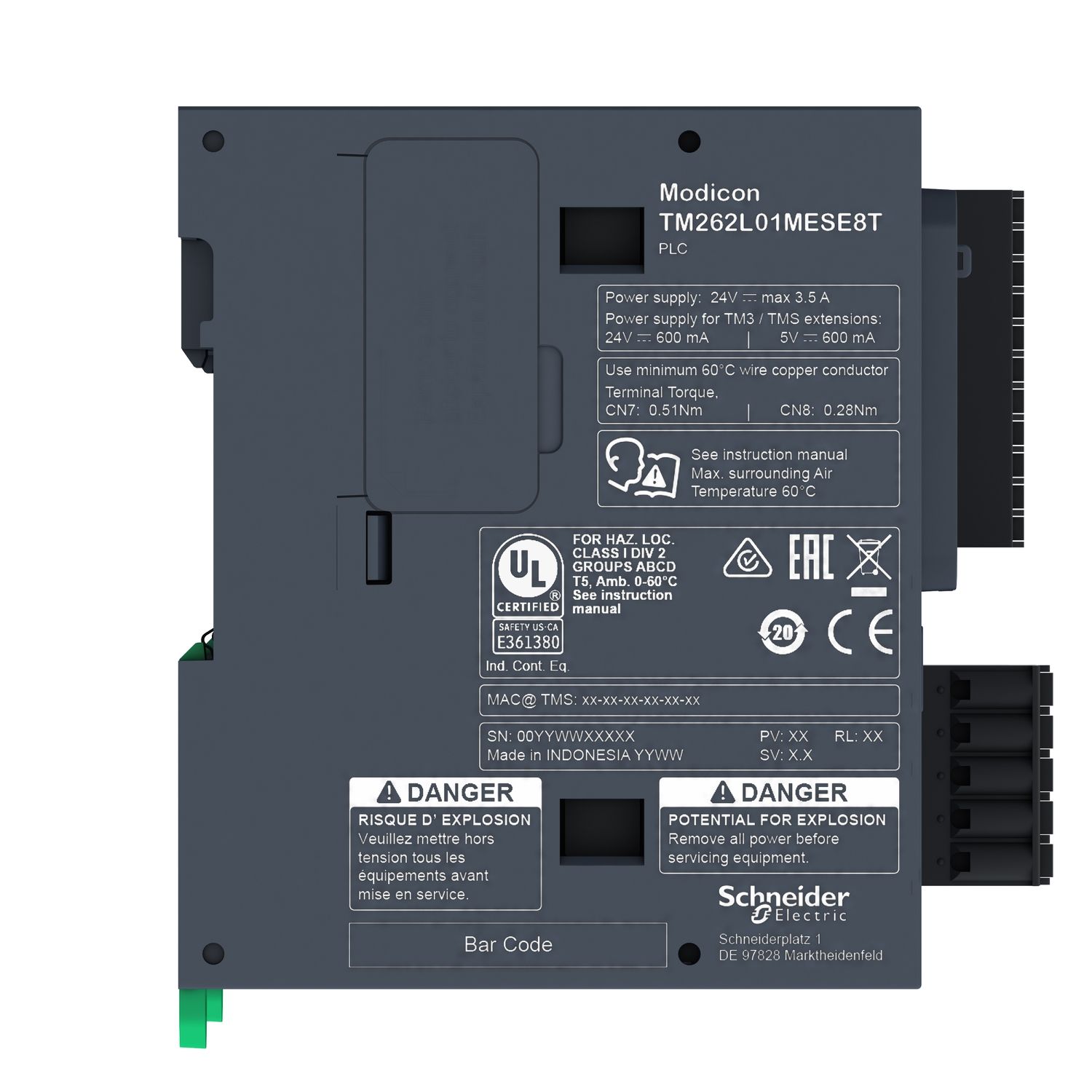

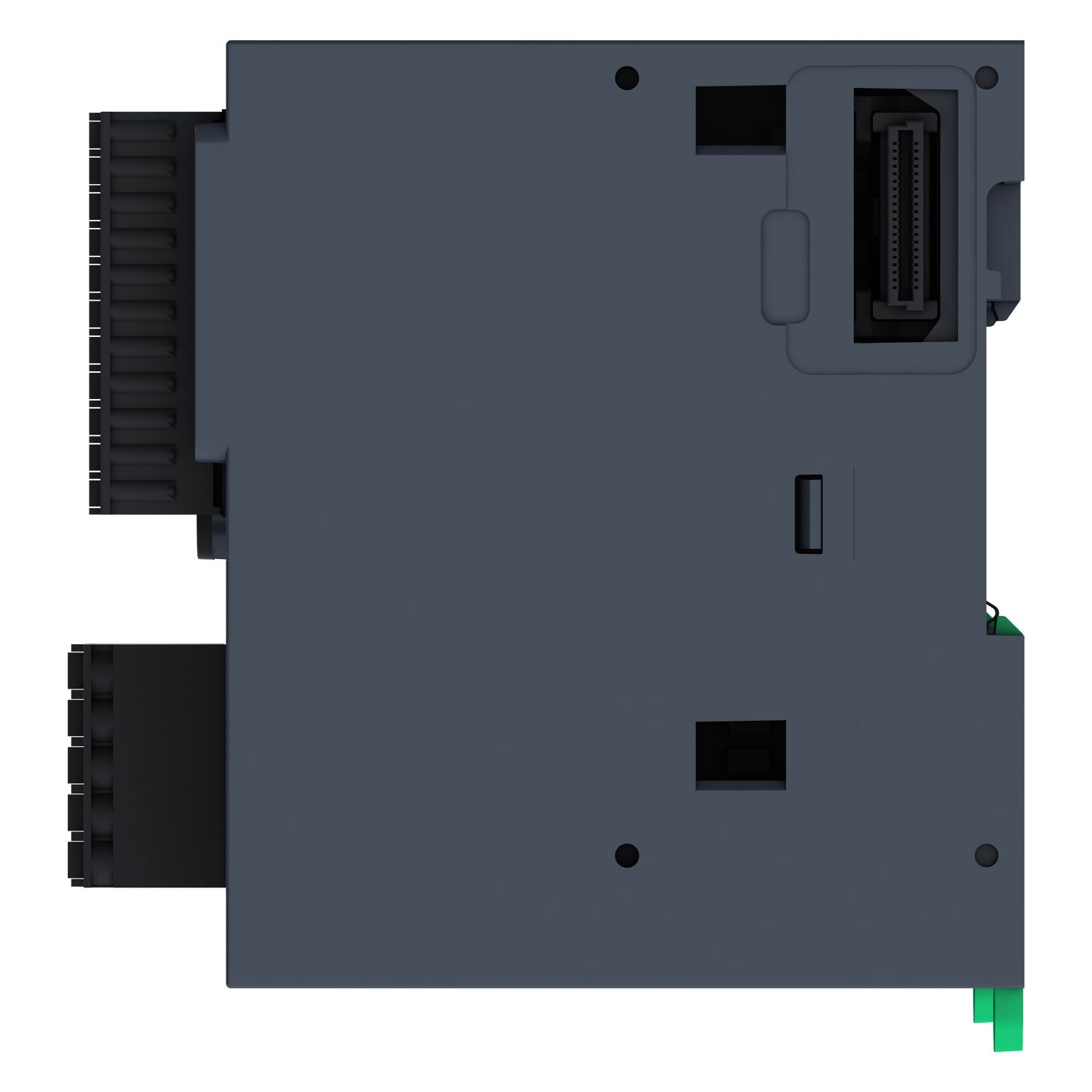

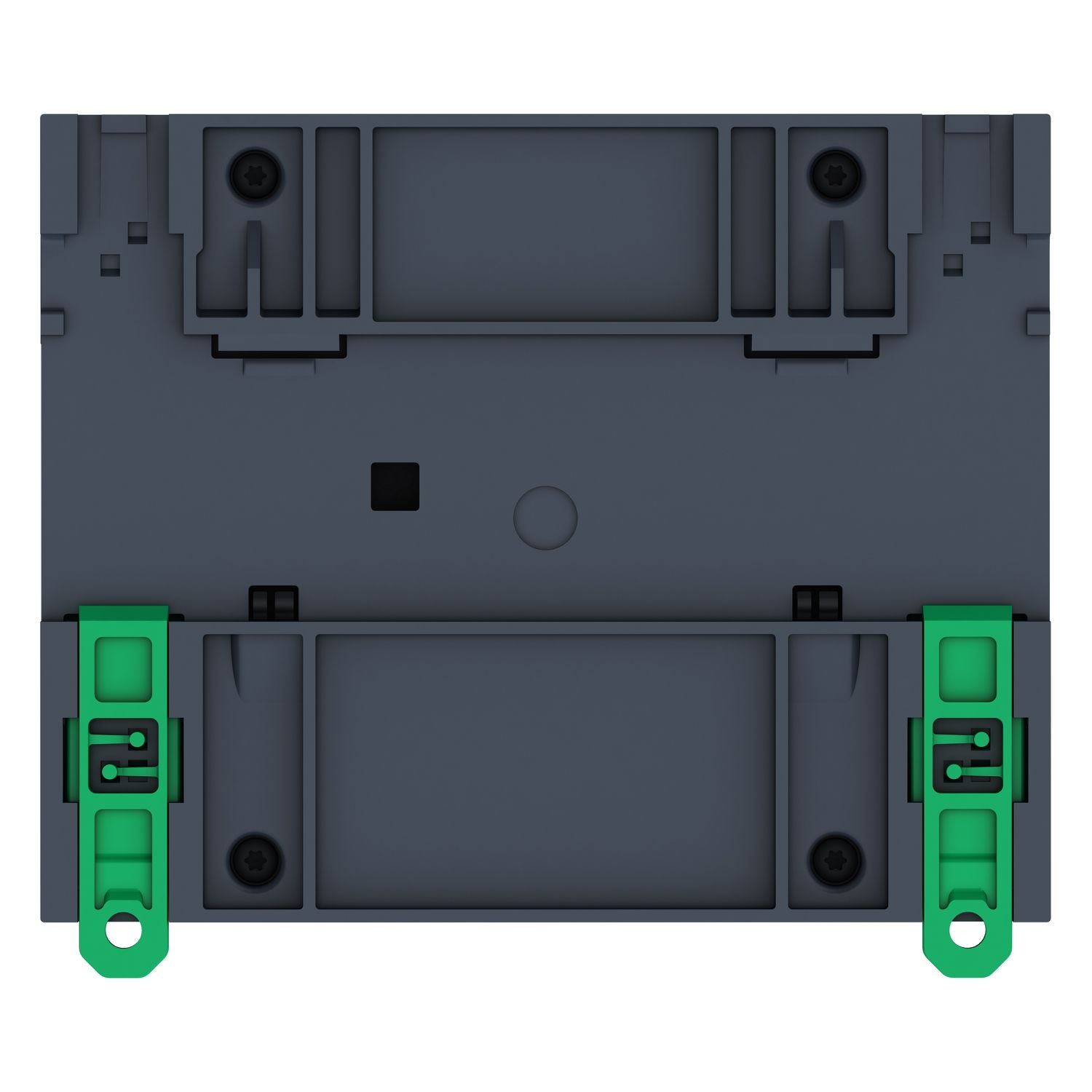

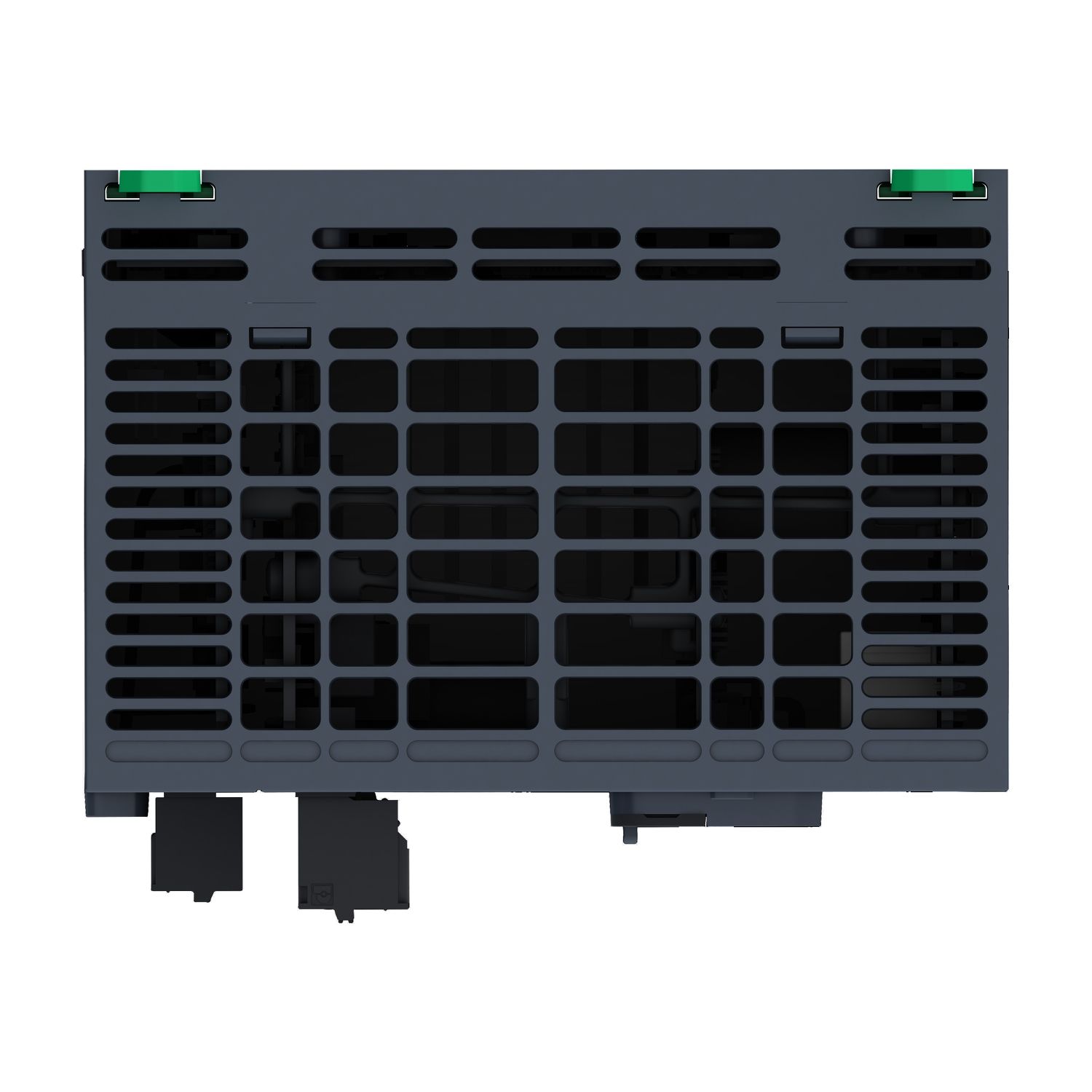

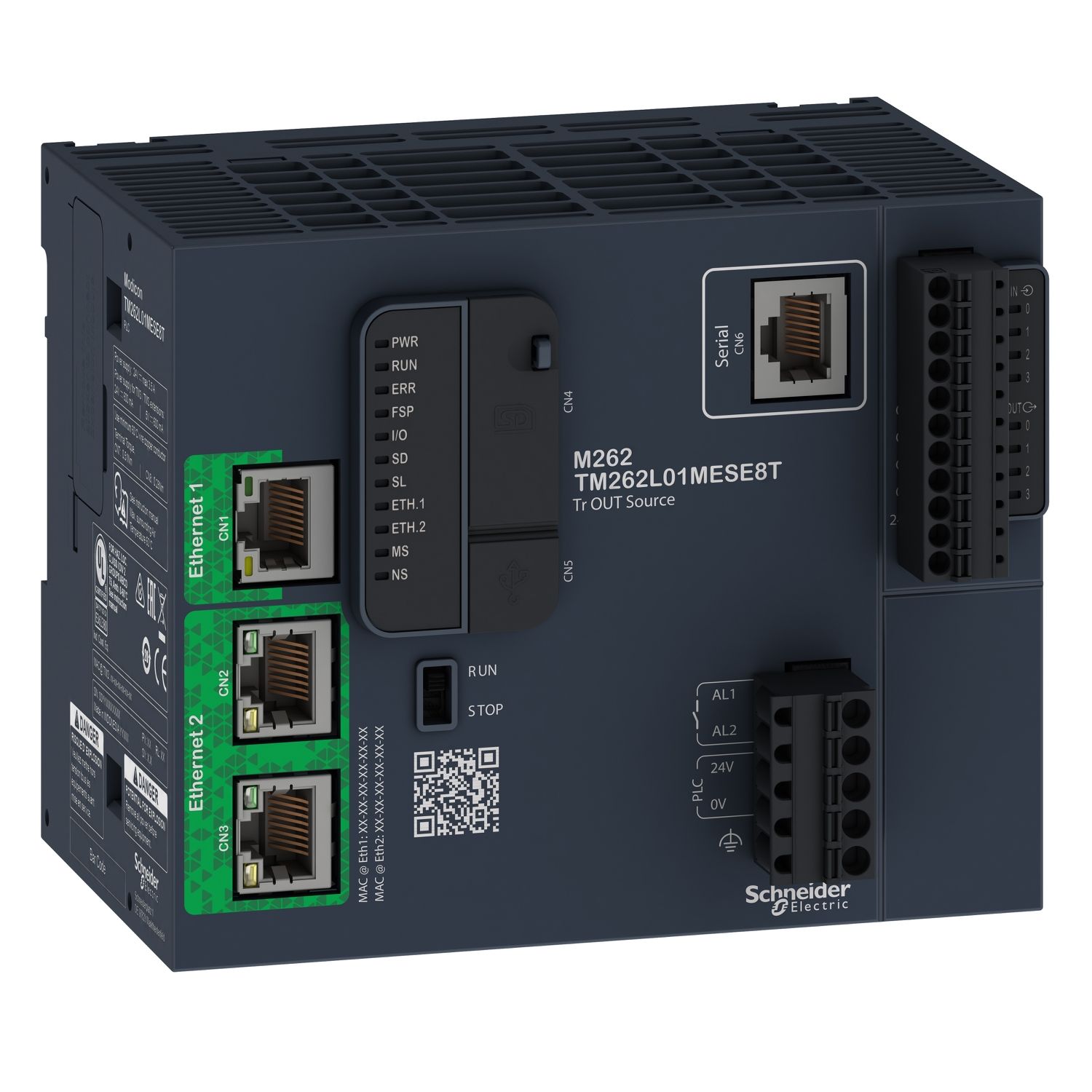

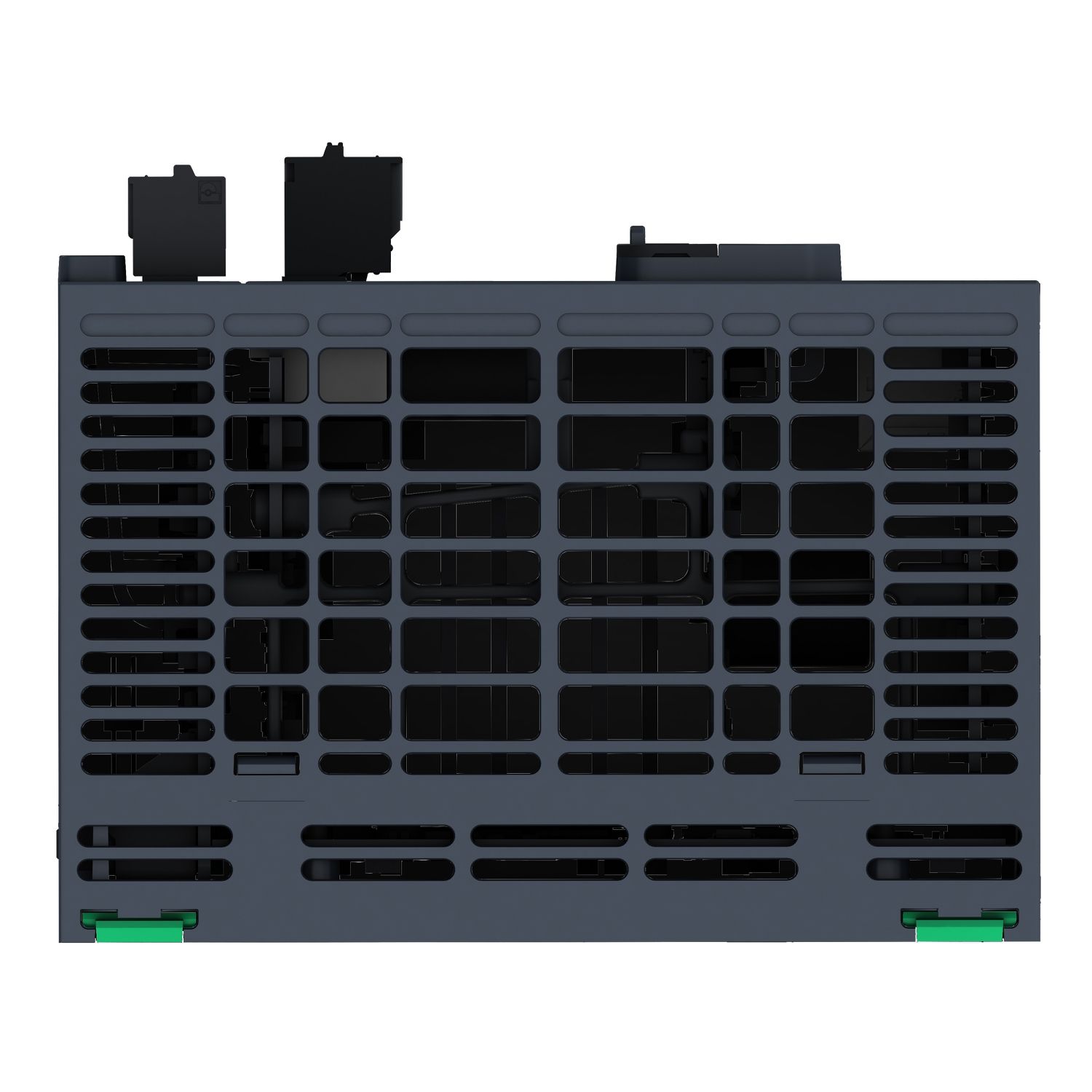

logic controller, Modicon M262, 5ns per instruction, optimized Ethernet

Please Contact Sales to buy this Product. click here
logic controller, Modicon M262, 5ns per instruction, optimized Ethernet
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
Declaration of conformity
End of life manual
Instruction sheet
Image of product
Image of product
User guide
Catalogue
Image of product
Product environmental
Image of product
Product Page Link
Product Data Sheet
Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262L01MESE8T is specialized in the logic control of 4 fast digital inputs and 4 fast digital ouputs. It controls motion with independant axis in EtherNet/IP. This logic controller embeds two Ethernet-based networks (EtherNet/IP, Modbus/TCP), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This logic controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.665kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen smart communication module, Modicon TM3 IO expansion modules, and configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

Products specifications

Attribute nameAttribute value
Main
Discrete I/O number8
Upstream connectivityconnected machine to plant, IIoT-ready machine to cloud
Range of productLogic/motion controller - Modicon M262
Product or component typelogic controller
[Us] rated supply voltage24 V DC - 15...20 %
Complementary
Data storage equipment<= 32 GB SDHC card (optional)
Discrete input number4 , discrete input fast input conforming to IEC 61131-2 Type 1
Execution time for 1 KInstruction0.005 ms
Surge withstand1 kV transistor output common mode conforming to IEC 61000-4-5, 1 kV input common mode conforming to IEC 61000-4-5, 0.5 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5
Discrete output voltage24 V DC
Configurable filtering time12 ms for fast input, 4 ms for fast input, 1 ms for fast input, 0.5 ms for fast input, 0.1 ms for fast input, 0.05 ms for fast input, 0.01 ms for fast input, 0.005 ms for fast input, 0.002 ms for fast input, 0.001 ms for fast input
Discrete output current0.5 A for fast output (Q0...Q3)
Cycle time0.5 ms
Communication port protocolASCII modem management, ASCII manager, Machine Expert, Modbus SL modem management, Modbus SL IO scanner, Modbus SL client/server, Ethernet RSTP, Modbus TCP NVL, Modbus TCP IO scanner, Modbus TCP client/server, EtherNet/IP scanner, EtherNet/IP adapter
Maximum current per output common0.5 A with Q0...Q3 for fast output
Accuracy+/- 1 % at 0.1-1 kHz for fast output, +/- 0.1 % at 0.02-0.1 kHz for fast output
Positioning functionslibraries axes coordinated function
Communication serviceSNMP client/server, SMTP client, POP3s client, DNS client, DHCP server, DHCP client, SQL client (remote access), FTPs server, FTP client/server, NTP client/server, SNTP, TLS 1.3, TLS 1.2, web visu, web server, HTTPs Methods (API), OPC UA server (Encrypt), MQTTs
Discrete output logicsource
Height100 mm
Maximum cable distance between devicesshielded cable: <15 m for RS232, shielded cable: <30 m for RS485 link, unshielded cable: <50 m for output, unshielded cable: <50 m for input, shielded cable: <3 m for fast output, shielded cable: <3 m for fast input
Maximum number of connected devicesModbus TCP/EtherNet/IP: 96 , Modbus TCP: 64 , EtherNet/IP: 64
Maximum tungsten load<1.5 W
Overvoltage protectionwith
Discrete input current7.5 mA for fast input
Mounting supportplate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Integrated connection typeUSB type mini B, TM3 IO bus, smart communication bus (TMSCO1 only), serial link with RJ45 connector and RS232/RS485 interface , Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface , Ethernet 1 with RJ45 connector and 10/100BASE-T interface
Voltage state 1 guaranteed>= 15 V for DC
Net weight0.655 kg
Maximum number of I/O expansion module64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture), 7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture)
Reset time200 ms automatic reset fast output
Discrete input voltage24 V
Discrete input logicsink
Insulationnon-insulated between supply and ground, between supply and internal logic at 500 V AC, between input and output at 500 V AC, non-insulated between outputs, between fast output and internal logic at 500 V AC, non-insulated between inputs, between fast input and internal logic at 550 V AC
Protection typeshort-circuit protection,  reverse polarity protection, short-circuit and overload protection with automatic reset
Realtime clockwith
Maximum output frequency300 kHz
Supply voltage limits20.4-28.8 V DC
Memory capacity192 MB for system memory RAM, 32 MB for OS/website RAM, 32 MB for program RAM
Voltage state 0 guaranteed<= 5 V for DC
Application structure8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks, 8 event tasks
Backup time1000 h at 25 °C
Transmission rate10/100/1000 Mbit/s for Ethernet2, 10/100 Mbit/s for Ethernet1, 480 Mbit/s for bus length of 3-3 m for USB, 115 kbit/s for bus length of 3-3 m for RS232, 115 kbit/s for bus length of 15-15 m for RS485
Electrical connectionremovable spring terminal blockfor connecting the 24 V DC power supply,  removable spring terminal blockfor inputs and outputs
Discrete output typetransistor
Data backed up1 GB built-in flash memory for backup of user programs
Maximum leakage current10 µA for output
Depth90 mm
Width125 mm
Response time<= 1 µs turn-off, Q0...Q3 terminal(s) for fast output, <= 1 µs turn-on, Q0...Q3 terminal(s) for fast output, <= 1 µs turn-off, I0...I3 terminal(s) for fast input, <= 1 µs turn-on, I0...I3 terminal(s) for fast input
Local signalling1 LED (green/red) for EIP NS, 1 LED (green/red) for EIP MS, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for ETH1 state, 1 LED (green/orange) for SL activity, 1 LED (green/orange) for SD card activity, 1 LED (green/red) for I/O error (I/O), 1 LED (green/red) for stop forced, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for RUN, 1 LED (green/red) for PWR
Output voltage limits30 V DC
Clock drift<= 10 s/month at 25-25 °C
Discrete input voltage typeDC
Discrete output number4 transistor fast output
Inrush current40 A
Input impedance2.81 kOhm for input
Power consumption in W82 W
Environment
Resistance to fast transients1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge8 kV on air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Ambient air temperature for storage-40-85 °C
StandardsIEC 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1
Immunity to microbreaks0.01 ms
Resistance to conducted disturbances10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz), 3 V 0.1...80 MHz, 10 V 0.15...80 MHz conforming to IEC 61000-4-4
Operating altitude0...2000 m
Storage altitude0-3000 m
Product certificationsKC, Achilles, EAC, RCM, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus, CE
IP degree of protectionIP20
Relative humidity10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for operation-20-45 °C (flat mounting), -20-50 °C (vertical installation), -20-60 °C (horizontal installation)
Pollution degree2
Resistance to electromagnetic fields1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Electromagnetic emissionradiated emissions at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBµV/m at 30-230 kHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
Vibration resistance1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail
Shock resistance15 gn for 11 ms
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.8 cm
Package 1 Width18.3 cm
Package 1 Length13.1 cm
Package 1 Weight835 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.44 kg
Unit Type of Package 33
Number of Units in Package 364
Package 3 Height73 cm
Package 3 Width60 cm
Package 3 Length80 cm
Package 3 Weight69.01 kg
