SKU:

TM262L20MESE8T

logic controller, Modicon M262, 3ns per instruction, Ethernet

$3,048.99 INC GST

Qty:

Available for Shipping : 03-Jun-2025

logic controller, Modicon M262, 3ns per instruction, Ethernet

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Instruction sheet

Declaration of conformity

User guide

Catalogue

Product environmental

Product Page Link

Product Data Sheet

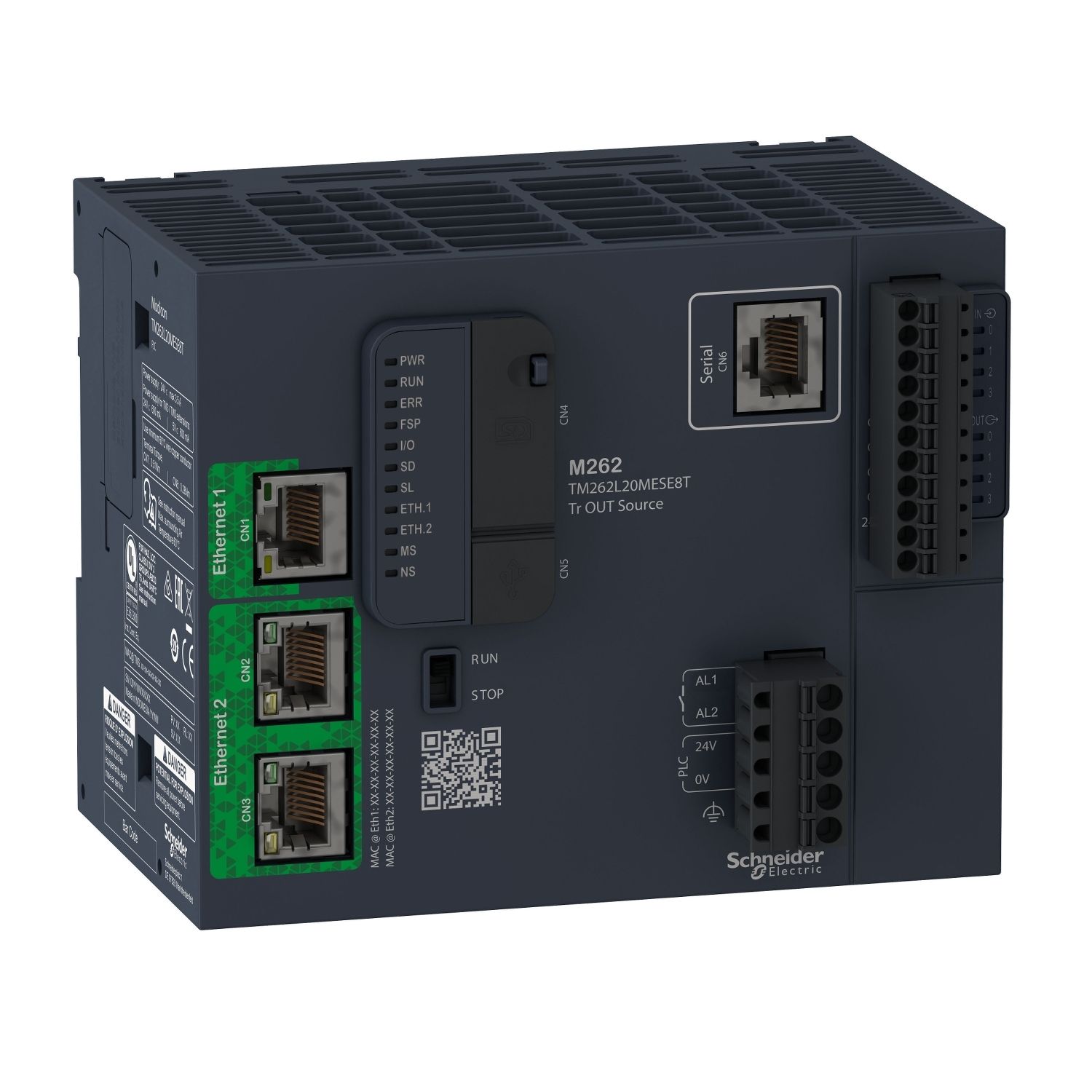

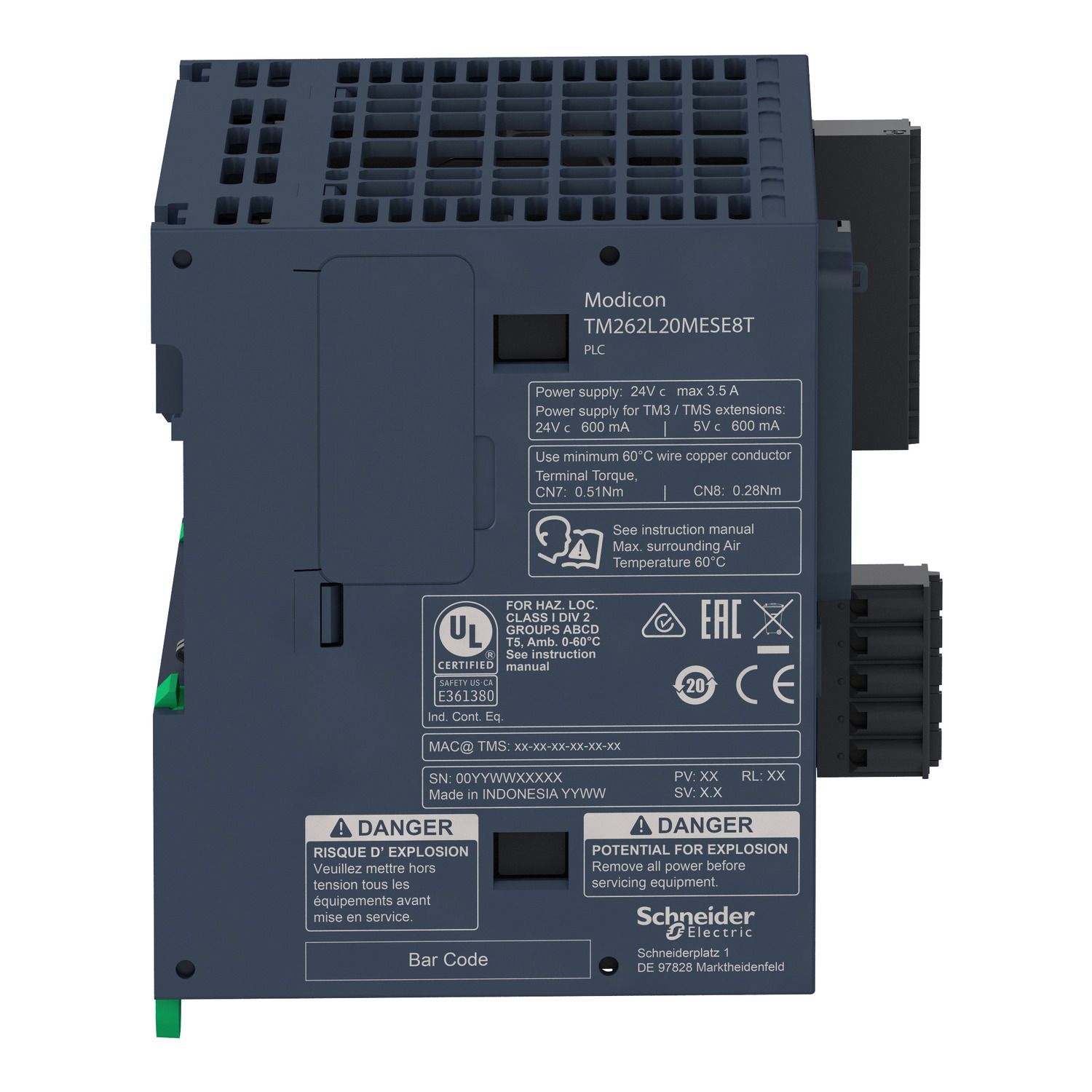

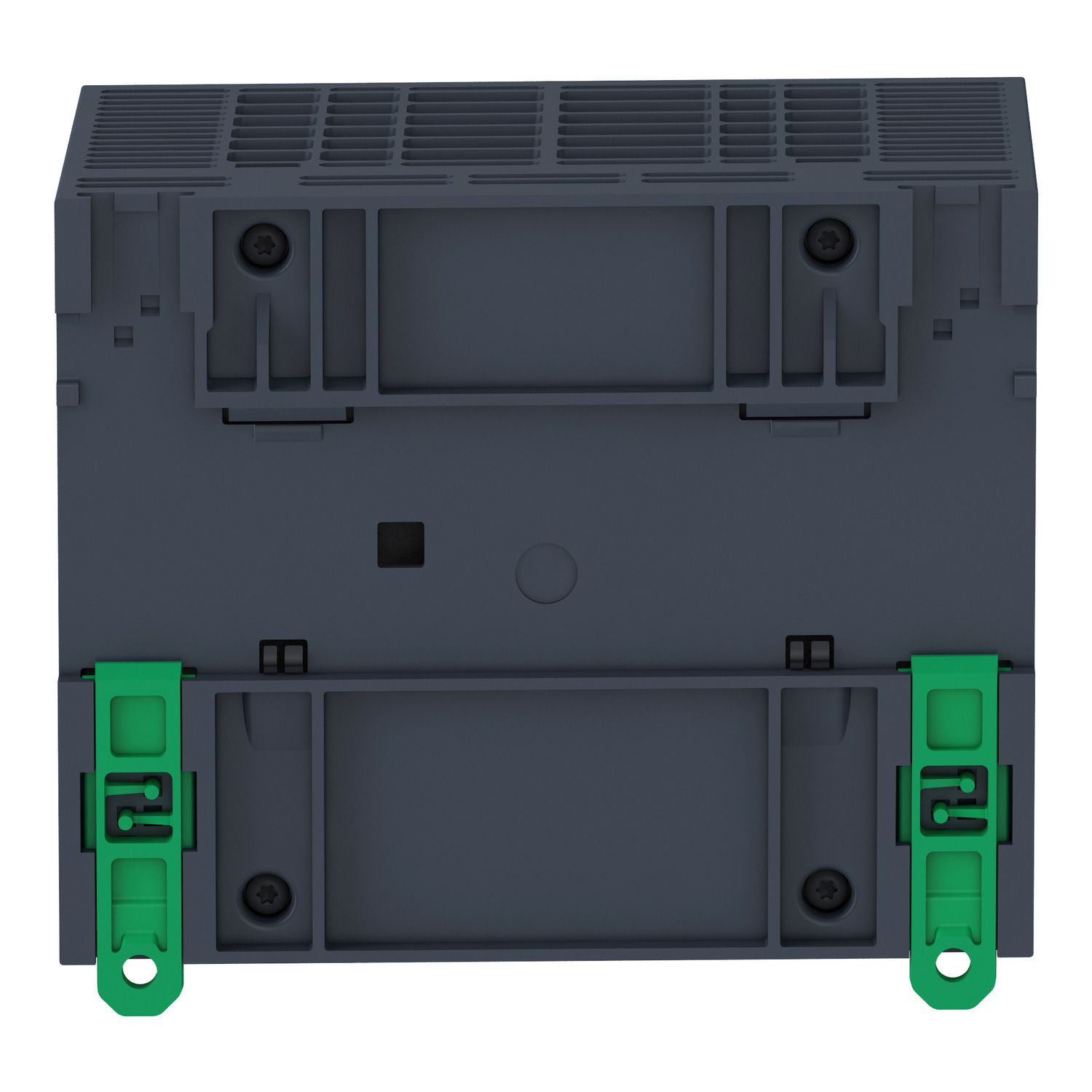

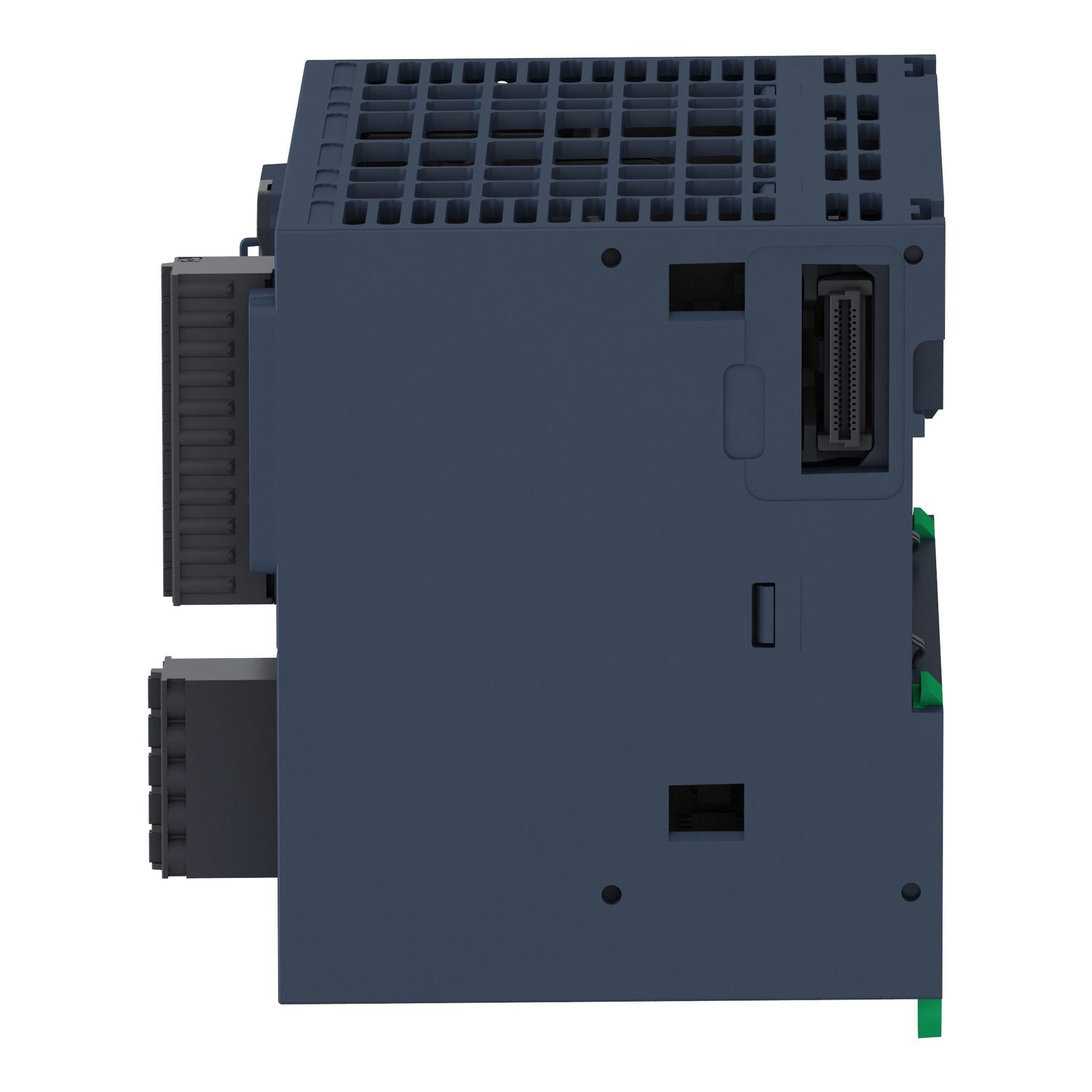

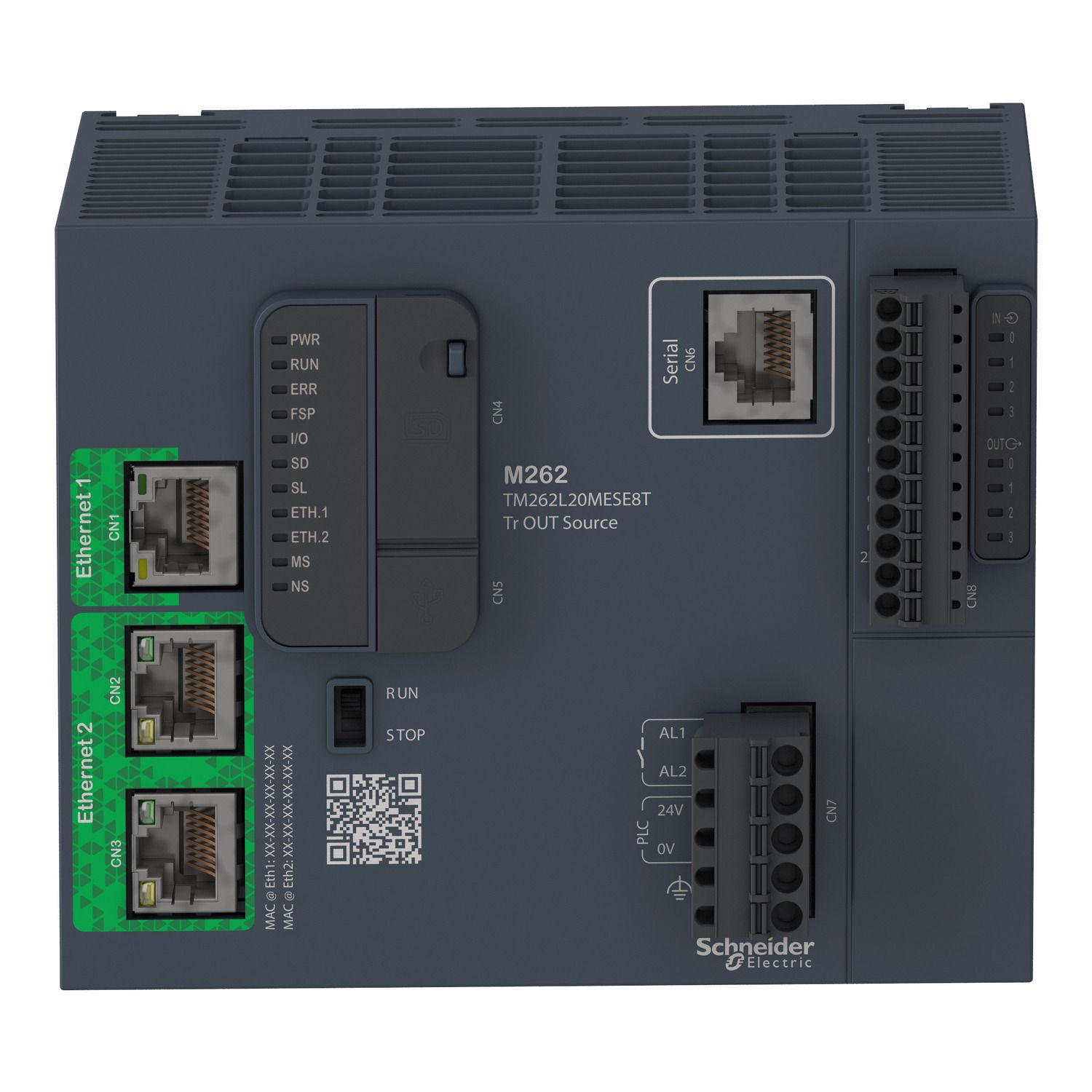

Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262L20MESE8T is specialized in the logic control of 4 fast digital inputs and 4 fast digital ouputs. It controls motion with independant axis in EtherNet/IP. This logic controller embeds two Ethernet-based networks (EtherNet/IP, Modbus/TCP), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This logic controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.665kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen smart communication module, Modicon TM3 IO expansion modules, and configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

Products specifications

Attribute name	Attribute value
Main
Discrete I/O number	8
Upstream connectivity	connected machine to plant, IIoT-ready machine to cloud
Range of product	Logic/motion controller - Modicon M262
Product or component type	logic controller
[Us] rated supply voltage	24 V DC - 15...20 %
Complementary
Data storage equipment	<= 32 GB SDHC card (optional)
Discrete input number	4 , discrete input fast input conforming to IEC 61131-2 Type 1
Execution time for 1 KInstruction	0.003 ms
Surge withstand	1 kV transistor output common mode conforming to IEC 61000-4-5, 1 kV input common mode conforming to IEC 61000-4-5, 0.5 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5
Discrete output voltage	24 V DC
Configurable filtering time	12 ms for fast input, 4 ms for fast input, 1 ms for fast input, 0.5 ms for fast input, 0.1 ms for fast input, 0.05 ms for fast input, 0.01 ms for fast input, 0.005 ms for fast input, 0.002 ms for fast input, 0.001 ms for fast input
Discrete output current	0.5 A for fast output (Q0...Q3)
Cycle time	0.5 ms
Communication port protocol	ASCII modem management, ASCII manager, Machine Expert, Modbus SL modem management, Modbus SL IO scanner, Modbus SL client/server, Ethernet RSTP, Modbus TCP NVL, Modbus TCP IO scanner, Modbus TCP client/server, EtherNet/IP scanner, EtherNet/IP adapter
Maximum current per output common	0.5 A with Q0...Q3 for fast output
Accuracy	+/- 1 % at 0.1-1 kHz for fast output, +/- 0.1 % at 0.02-0.1 kHz for fast output
Positioning functions	libraries axes coordinated function
Communication service	SNMP client/server, SMTP client, POP3s client, DNS client, DHCP server, DHCP client, SQL client (remote access), FTPs server, FTP client/server, NTP client/server, SNTP, TLS 1.3, TLS 1.2, web visu, web server, HTTPs Methods (API), OPC UA client (Encrypt), OPC UA server (Encrypt), MQTTs
Discrete output logic	source
Height	100 mm
Maximum cable distance between devices	shielded cable: <15 m for RS232, shielded cable: <30 m for RS485 link, unshielded cable: <50 m for output, unshielded cable: <50 m for input, shielded cable: <3 m for fast output, shielded cable: <3 m for fast input
Maximum number of connected devices	Modbus TCP/EtherNet/IP: 128 , Modbus TCP: 64 , EtherNet/IP: 64
Maximum tungsten load	<1.5 W
Overvoltage protection	with
Discrete input current	7.5 mA for fast input
Mounting support	plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Integrated connection type	USB type mini B, TM3 IO bus, Smart Communication Bus, serial link with RJ45 connector and RS232/RS485 interface , Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface , Ethernet 1 with RJ45 connector and 10/100BASE-T interface
Voltage state 1 guaranteed	>= 15 V for DC
Net weight	0.655 kg
Maximum number of I/O expansion module	64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture), 7 TM3 IO module (local I/O-Architecture), 7 TM3 IO module (remote I/O-Architecture)
Reset time	200 ms automatic reset fast output
Discrete input voltage	24 V
Discrete input logic	sink
Insulation	non-insulated between supply and ground, between supply and internal logic at 550 V AC, between input and output at 550 V AC, non-insulated between outputs, between output and internal logic at 550 V AC, non-insulated between inputs, between fast input and internal logic at 550 V AC
Protection type	short-circuit protection, reverse polarity protection, short-circuit and overload protection with automatic reset
Realtime clock	with
Maximum output frequency	300 kHz
Supply voltage limits	20.4-28.8 V DC
Memory capacity	192 MB for system memory RAM, 32 MB for OS/website RAM, 32 MB for program RAM
Voltage state 0 guaranteed	<= 5 V for DC
Application structure	8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks, 8 event tasks
Backup time	1000 h at 25 °C
Transmission rate	10/100/1000 Mbit/s for Ethernet2, 10/100 Mbit/s for Ethernet1, 480 Mbit/s for bus length of 3-3 m for USB, 115 kbit/s for bus length of 3-3 m for RS232, 115 kbit/s for bus length of 15-15 m for RS485
Electrical connection	removable spring terminal blockfor connecting the 24 V DC power supply, removable spring terminal blockfor inputs and outputs
Discrete output type	transistor
Data backed up	1 GB built-in flash memory for backup of user programs
Maximum leakage current	10 µA for output
Depth	90 mm
Width	125 mm
Response time	<= 1 µs turn-off, Q0...Q3 terminal(s) for fast output, <= 1 µs turn-on, Q0...Q3 terminal(s) for fast output, <= 1 µs turn-off, I0...I3 terminal(s) for fast input, <= 1 µs turn-on, I0...I3 terminal(s) for fast input
Local signalling	1 LED (green/red) for EIP NS, 1 LED (green/red) for EIP MS, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for ETH1 state, 1 LED (green/orange) for SL activity, 1 LED (green/orange) for SD card activity, 1 LED (green/red) for I/O error (I/O), 1 LED (green/red) for stop forced, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for RUN, 1 LED (green/red) for PWR
Output voltage limits	30 V DC
Clock drift	<= 10 s/month at 25-25 °C
Discrete input voltage type	DC
Discrete output number	4 transistor fast output
Inrush current	40 A
Input impedance	2.81 kOhm for input
Power consumption in W	82 W
Environment
Resistance to fast transients	1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge	8 kV on air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Ambient air temperature for storage	-40-85 °C
Standards	IEC 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1
Immunity to microbreaks	0.01 ms
Resistance to conducted disturbances	10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz), 3 V 0.1...80 MHz, 10 V 0.15...80 MHz conforming to IEC 61000-4-4
Operating altitude	0...2000 m
Storage altitude	0-3000 m
Product certifications	KC, Achilles, EAC, RCM, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus, CE
IP degree of protection	IP20
Relative humidity	10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for operation	-20-45 °C (flat mounting), -20-50 °C (vertical installation), -20-60 °C (horizontal installation)
Pollution degree	2
Resistance to electromagnetic fields	1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Electromagnetic emission	radiated emissions at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBµV/m at 30-230 kHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
Vibration resistance	1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14.0 cm
Package 1 Width	13.5 cm
Package 1 Length	18.5 cm
Package 1 Weight	823.0 g
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	7.2 kg
Unit Type of Package 3	3
Number of Units in Package 3	64
Package 3 Height	75.0 cm
Package 3 Width	40.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	68 kg
