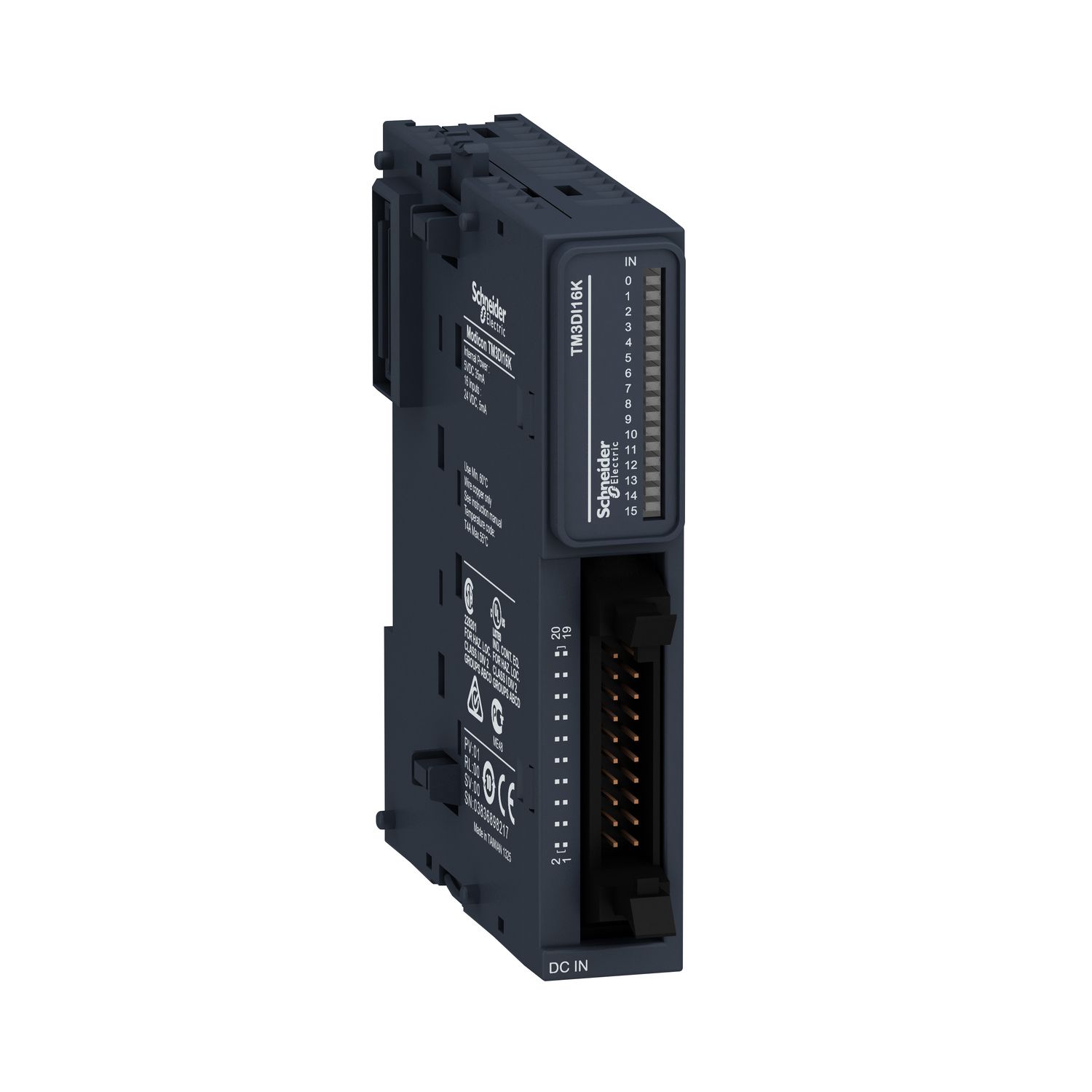

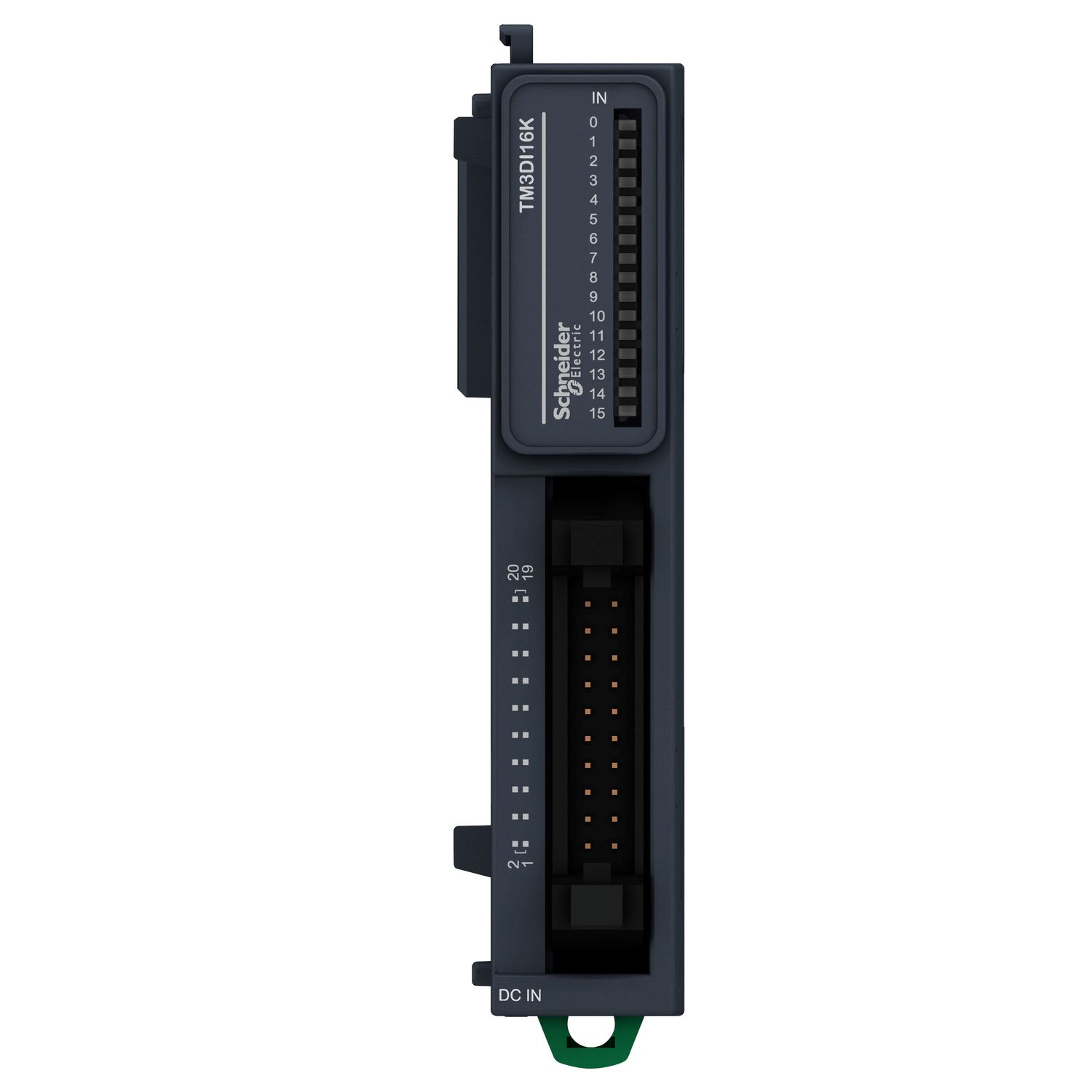

Picture of Modicon TM3, Discrete input module, 16 inputs (HE10) 24 VDC
SKU:

TM3DI16K

Modicon TM3, Discrete input module, 16 inputs (HE10) 24 VDC

$289.68
Product Selector
Modicon TM3, Discrete input module, 16 inputs (HE10) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
User guide
CAD
Declaration of conformity
Instruction sheet
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 16 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 5mA/35mA at 5V DC via bus connector. It can be used to create configurations with up to 16 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with HE-10 connector inputs for electrical connection. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.65kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute nameAttribute value
Main
Discrete input number16 for input conforming to IEC 61131-2 type 3
Range of productModicon TM3
Range compatibilityModicon M262, Modicon M221, Modicon M251, Modicon M241
Discrete input current5 mA for input
Product or component typediscrete input module
Discrete input voltage24 V
Discrete input logicsink or source (positive/negative)
Complementary
Insulationnon-insulated between inputs, between input and internal logic at 500 V AC
Current state 0 guaranteed<= 1 mA (input)
Voltage state 0 guaranteed0...5 V for input
Discrete I/O number16
MarkingCE
Height90 mm
Maximum cable distance between devicesunshielded cable: <50 m for regular input
Electrical connectionHE-10 connectorfor inputs
Depth81.3 mm
Width21.4 mm
Local signalling1 LED per channel (green) for input status
Mounting supportplate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Voltage state 1 guaranteed15...28.8 V for input
Current consumption35 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 5 mA at 5 V DC via bus connector (at state off)
Net weight0.65 kg
Response time4 ms (turn-off), 4 ms (turn-on)
Current state 1 guaranteed>= 2.5 mA (input)
Discrete input voltage typeDC
Input impedance4.4 kOhm
Environment
Resistance to fast transients1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protectionIP20 with protective cover in place
Surge withstand1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage-25-70 °C
Resistance to magnetic fields30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree2
Ambient air temperature for operation-10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emissionradiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude0...2000 m
Vibration resistance3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance15 gn for 11 ms
Storage altitude0-3000 m
StandardsIEC 61131-2
Product certificationscULus HazLoc, EAC, RCM, UKCA, CE, cULus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width12.5 cm
Package 1 Length10.5 cm
Package 1 Weight179.0 g
Unit Type of Package 22
Number of Units in Package 242
Package 2 Height30 cm
Package 2 Width40 cm
Package 2 Length60 cm
Package 2 Weight8.326 kg
Unit Type of Package 33
Number of Units in Package 3504
Package 3 Height105 cm
Package 3 Width120 cm
Package 3 Length80 cm
Package 3 Weight106 kg
