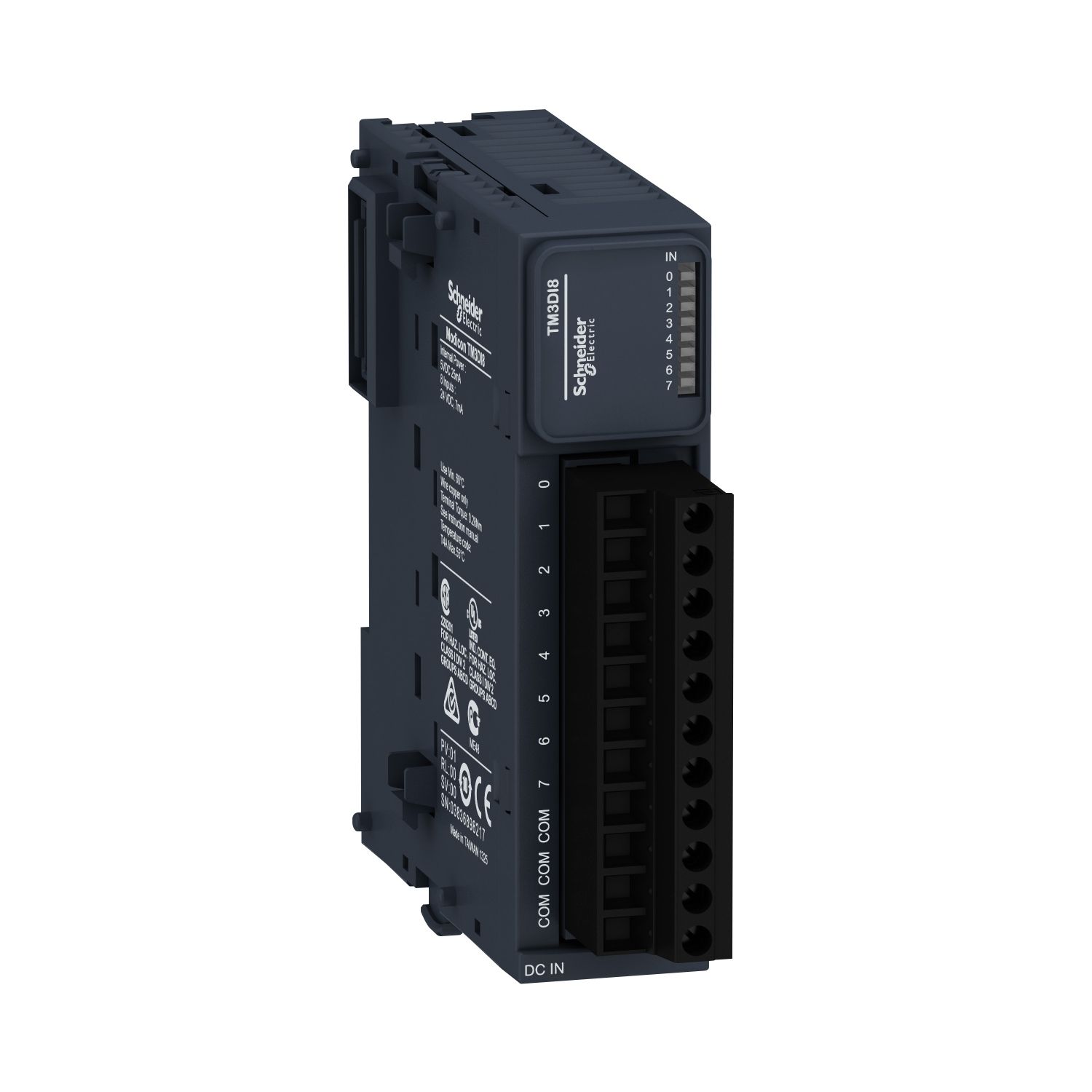

Picture of Modicon TM3, Discrete input module, 8 inputs (screw) 24 VDC
SKU:

TM3DI8

Modicon TM3, Discrete input module, 8 inputs (screw) 24 VDC

$254.84
Available for Shipping : 24-Nov-2024
Product Selector
Modicon TM3, Discrete input module, 8 inputs (screw) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Instruction sheet
Declaration of conformity
Product environmental
End of life manual
Catalogue
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Discrete input number 8 for input conforming to IEC 61131-2 Type 1
Range of product Modicon TM3
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Discrete input current 7 mA for input
Product or component type discrete input module
Discrete input voltage 24 V
Discrete input logic sink or source (positive/negative)
Complementary
Insulation non-insulated between inputs, between input and internal logic at 500 V AC
Current state 0 guaranteed <= 1 mA (input)
Voltage state 0 guaranteed 0...5 V for input
Discrete I/O number 8
Marking CE
Height 90 mm
Maximum cable distance between devices unshielded cable: <30 m for regular input
Electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs
Depth 84.6 mm
Width 27.4 mm
Local signalling 1 LED per channel (green) for input status
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Voltage state 1 guaranteed 15...28.8 V for input
Current consumption 24 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 5 mA at 5 V DC via bus connector (at state off)
Net weight 0.085 kg
Response time 4 ms (turn-off), 4 ms (turn-on)
Current state 1 guaranteed >= 2.5 mA (input)
Discrete input voltage type DC
Input impedance 3.4 kOhm
Environment
Resistance to fast transients 1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.652 cm
Package 1 Width 10.664 cm
Package 1 Length 12.68 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 29.4 cm
Package 2 Width 39.5 cm
Package 2 Length 57.7 cm
Package 2 Weight 10.32 kg
Unit Type of Package 3 3
Number of Units in Package 3 504
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 133 kg
