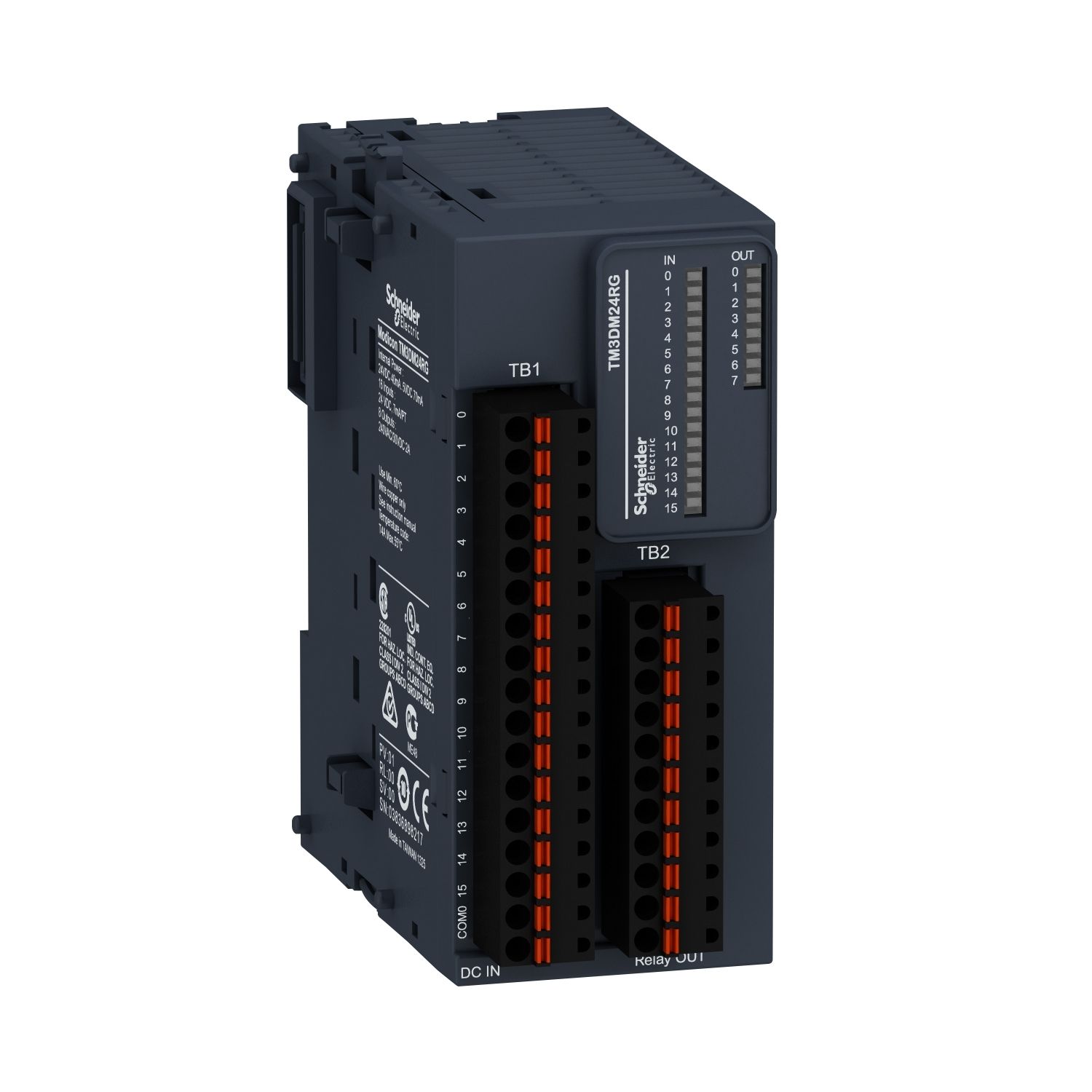

Picture of Modicon TM3, Discrete I/O module, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC
SKU:

TM3DM24RG

Modicon TM3, Discrete I/O module, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC

$556.64 INC GST
Available for Shipping : 08-May-2025
Product Selector
Modicon TM3, Discrete I/O module, 24 IO (16 inputs, 8 relay outputs, spring) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
CAD
Declaration of conformity
Instruction sheet
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete I/O module provides 16 input channels, 8 relay output channels with sink or source (positive/negative) discrete logic. It is an I/O module with a relay output voltage of 24V DC, 240V AC, a current consumption of 65mA, 5mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC and non-insulated between inputs/outputs. It is furnished with removable spring terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.155kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Discrete input number 16 for input conforming to IEC 61131-2 Type 1
Discrete output voltage 240 V AC for relay output, 24 V DC for relay output
Discrete output current 2000 mA for relay output
Discrete output number 8
Discrete output logic positive or negative
Range of product Modicon TM3
Discrete output type relay normally open
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Discrete input current 7 mA for input
Product or component type discrete I/O module
Discrete input voltage 24 V
Discrete input logic sink or source (positive/negative)
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V AC, between open contact at 750 V AC, between input groups and output groups at 1500 V AC, non-insulated between inputs, between input and internal logic at 500 V AC
Minimum load 10 mA at 5 V DC for relay output
Current state 0 guaranteed <= 1 mA (input)
Voltage state 0 guaranteed 0...5 V for input
Discrete I/O number 24
Marking CE
Maximum current per output common 7 A
Height 90 mm
Maximum cable distance between devices unshielded cable: <30 m for regular input
Electrical connection 11 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs, 17 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs
Depth 84.6 mm
Width 42.9 mm
Local signalling 1 LED per channel (green) for I/O state
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Mechanical durability 20000000 cycles
Voltage state 1 guaranteed 15...28.8 V for input
Current consumption 65 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 5 mA at 5 V DC via bus connector (at state off)
Response time 4 ms (turn-off), 4 ms (turn-on)
Current state 1 guaranteed >= 2.5 mA (input)
Discrete input voltage type DC
Input impedance 3.4 kOhm
Environment
Resistance to fast transients 2 kV for relay output conforming to IEC 61000-4-4, 1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV input common mode conforming to IEC 61000-4-5, 2 kV output common mode conforming to IEC 61000-4-5
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, CE, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 12.5 cm
Package 1 Length 10.5 cm
Package 1 Weight 270.0 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.787 kg
Unit Type of Package 3 3
Number of Units in Package 3 288
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 96 kg
