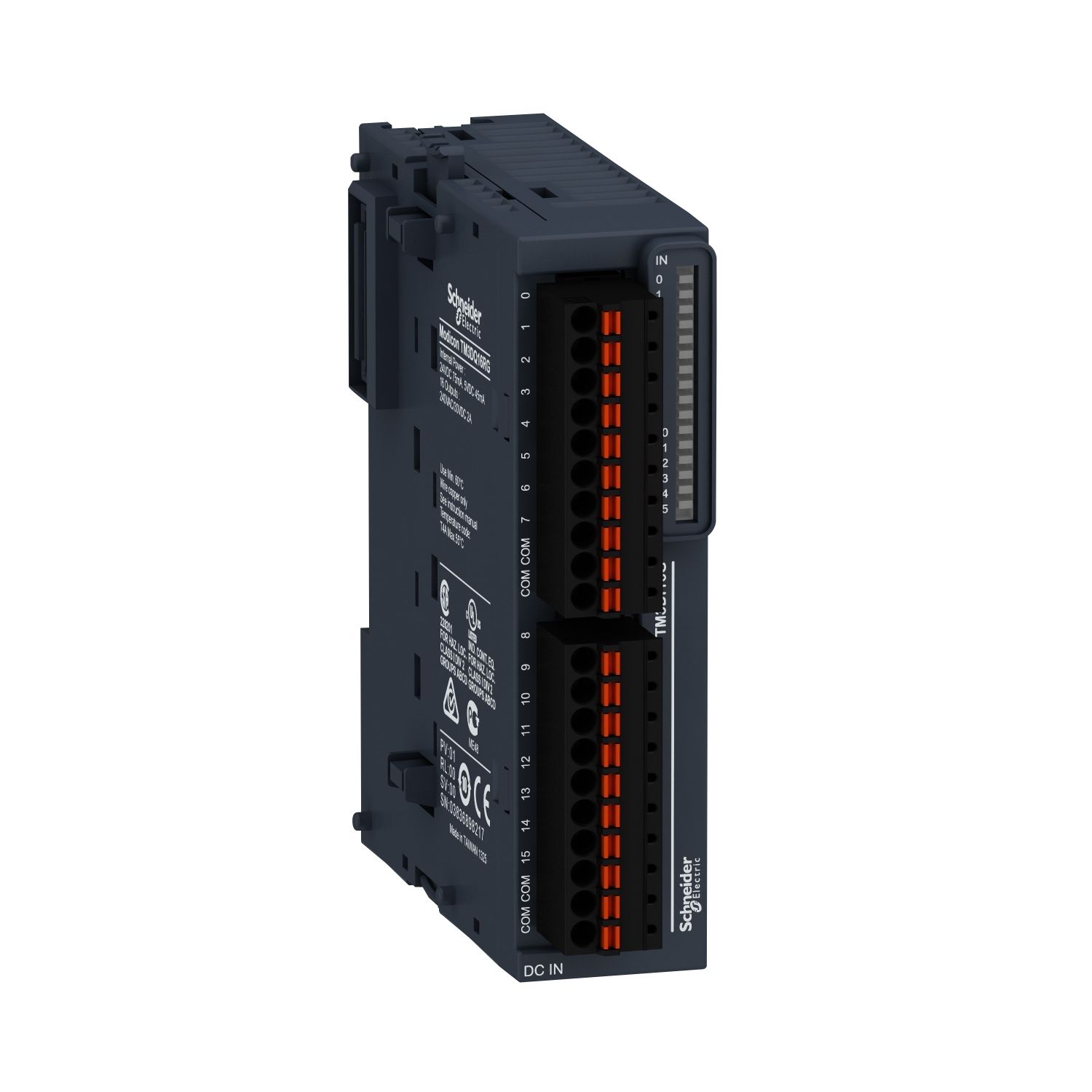

Picture of Modicon TM3, Discrete output module, 16 relay outputs (spring) 24 VDC
SKU:

TM3DQ16RG

Modicon TM3, Discrete output module, 16 relay outputs (spring) 24 VDC

$464.04 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Modicon TM3, Discrete output module, 16 relay outputs (spring) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Circularity Profile
Catalog
User guide
Declaration of conformity
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 relay outputs with positive or negative logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 75mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It offers mechanical durability of 20 million cycles. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.130kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Discrete output voltage 30 V DC for relay output, 240 V AC for relay output
Discrete output current 2000 mA for relay output
Discrete output number 16
Discrete output logic positive or negative
Range of product Modicon TM3
Discrete output type relay normally open
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Product or component type discrete output module
Complementary
Insulation between output groups at 1500 V AC, between outputs at 750 V AC, between output and internal logic at 2300 V AC
Minimum load 10 mA at 5 V DC for relay output
Discrete I/O number 16
Marking CE
Height 90 mm
Maximum cable distance between devices unshielded cable: <30 m for relay output
Electrical connection 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs
Depth 84.6 mm
Width 27.4 mm
Local signalling 1 LED per channel (green) for output status
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Mechanical durability 20000000 cycles
Current consumption 75 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off)
Net weight 0.145 kg
Response time 5 ms (turn-off), 10 ms (turn-on)
Environment
Resistance to fast transients 2 kV for relay output conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, CE, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 12.5 cm
Package 1 Length 10.5 cm
Package 1 Weight 245.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 11.273 kg
Unit Type of Package 3 3
Number of Units in Package 3 504
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 145 kg
