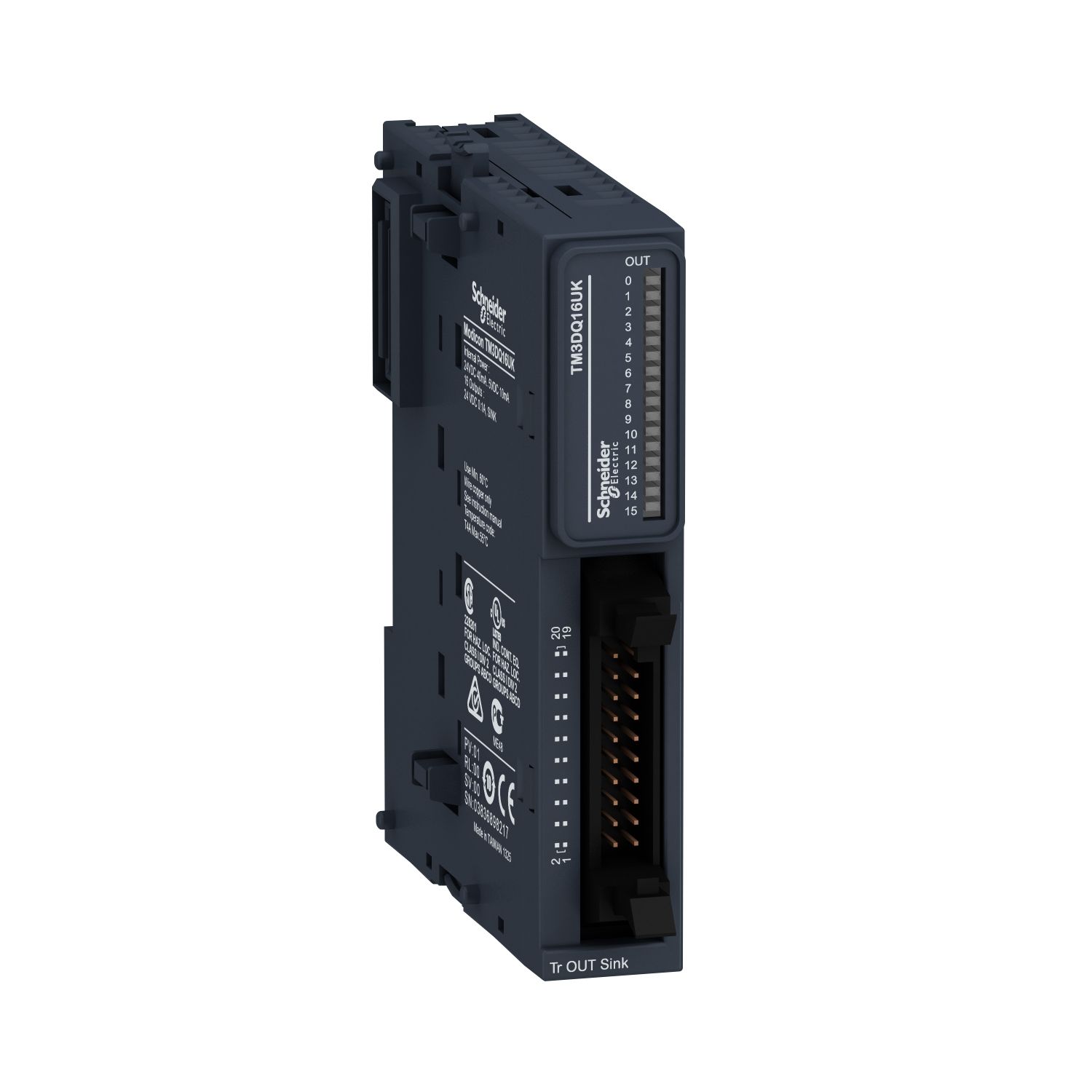

Picture of Modicon TM3, Discrete output module, 16 outputs transistor NPN (HE10)
SKU:

TM3DQ16UK

Modicon TM3, Discrete output module, 16 outputs transistor NPN (HE10)

$336.98 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Modicon TM3, Discrete output module, 16 outputs transistor NPN (HE10)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
Catalog
Declaration of conformity
User guide
CAD
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output voltage 24 V DC for transistor output
Discrete output current 100 mA for transistor output
Discrete output number 16
Discrete output logic negative logic (sink)
Range of product Modicon TM3
Discrete output type transistor
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Product or component type discrete output module
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V AC
Discrete I/O number 16
Marking CE
Height 90 mm
Maximum cable distance between devices unshielded cable: <5 m for transistor output
Electrical connection HE-10 connectorfor outputs
Maximum leakage current 0.1 mA for transistor output
Depth 81.3 mm
Width 21.4 mm
Local signalling 1 LED per channel (green) for output status
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Current consumption 20 mA at 24 V DC via bus connector (at state on), 15 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 5 mA at 5 V DC via bus connector (at state off)
Maximum voltage drop <0.4 V
Net weight 0.111 kg
Response time 450 µs (turn-off), 450 µs (turn-on)
Environment
Resistance to fast transients 1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, CE, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 10.000 cm
Package 1 Length 12.500 cm
Package 1 Weight 180.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.050 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 75.000 cm
Package 3 Width 40.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 53.800 kg
