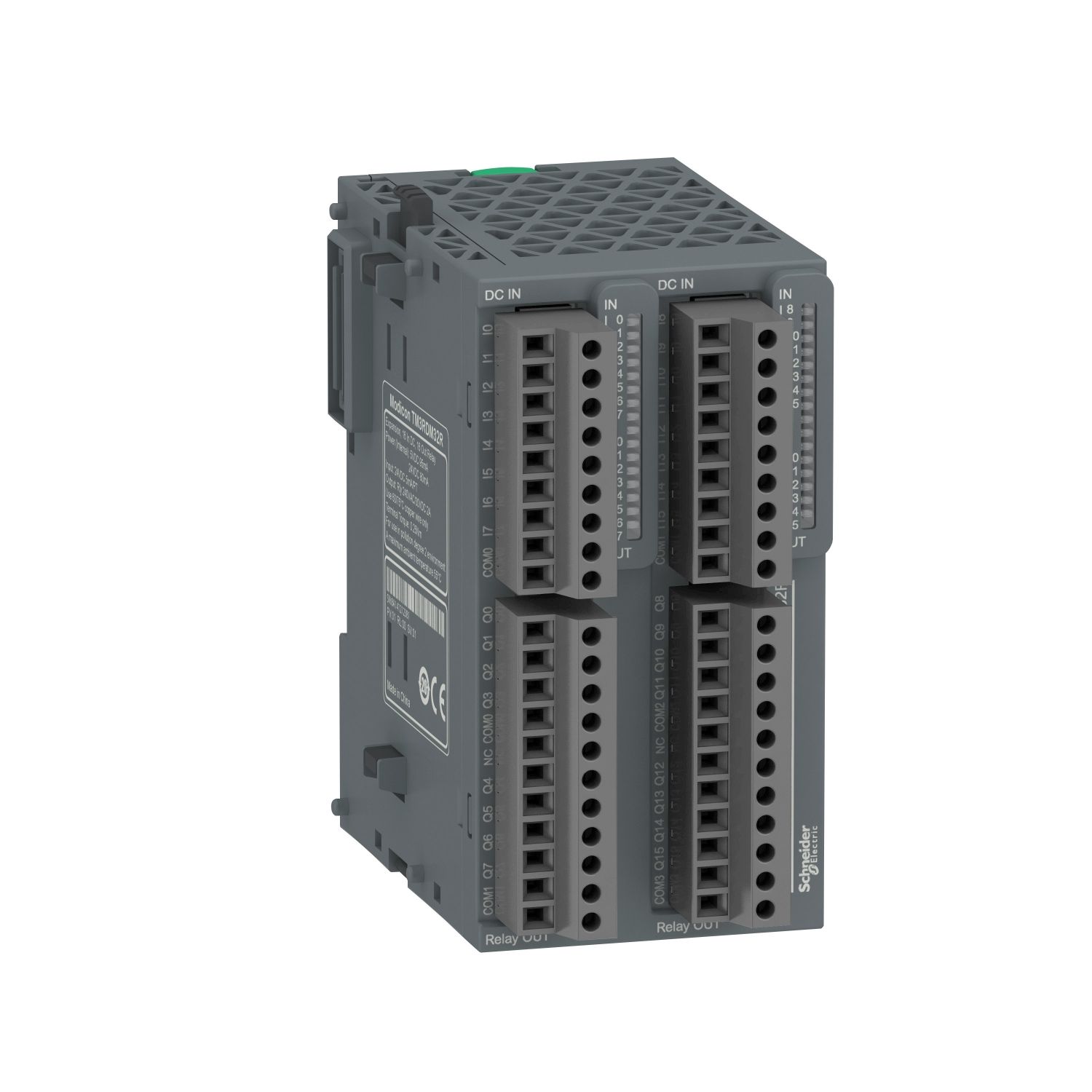

Picture of discrete I/O module, Modicon TM3, 32 IO, 16 digital inputs, 16 digital outputs, screw
SKU:

TM3RDM32R

discrete I/O module, Modicon TM3, 32 IO, 16 digital inputs, 16 digital outputs, screw

$416.40
Available for Shipping : 02-Dec-2024
discrete I/O module, Modicon TM3, 32 IO, 16 digital inputs, 16 digital outputs, screw
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This discrete IO module provides 16 digital inputs and 16 digital outputs. It manages 16 sink/source 24V DC inputs and 16 relay outputs. Digital IO modules can be used to create configurations with up to 196 digital IO. The IO response time is 4ms (turn-on), 4ms (turn-off). It is furnished with removable screw terminal block, 11x 1.5squaremm for outputs and 9x 1.5squaremm for inputs, with 3.81mm pitch adjustment. Its dimensions are 51mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.208kg. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This module is specially designed and only applicable for Modicon M200 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Discrete input number 16 for input conforming to IEC 61131-2 Type 1
Range compatibility Modicon Easy M200
Discrete input current 5 mA for input
Discrete output voltage 240 V AC for relay output, 24 V DC for relay output
Discrete output current 2000 mA for relay output
Product or component type discrete I/O module
Discrete output number 16
Discrete input voltage 24 V
Discrete output logic positive or negative
Range of product Modicon TM3
Discrete output type relay normally open
Discrete input logic sink or source (positive/negative)
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V AC, between open contact at 750 V AC, between input groups and output groups at 1500 V AC, non-insulated between inputs, between input and internal logic at 500 V AC
Minimum load 10 mA at 5 V DC for relay output
Depth 84.6 mm
Width 51 mm
Local signalling 1 LED per channel (green) for I/O state
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Mechanical durability 20000000 cycles
Current state 0 guaranteed <= 1 mA (input)
Voltage state 1 guaranteed 15...28.8 V for input
Current consumption 95 mA at 5 V DC via bus connector (at state on), 80 mA at 24 V DC via bus connector (at state on)
Voltage state 0 guaranteed 0...5 V for input
Net weight 0.208 kg
Discrete I/O number 32
Response time 4 ms (turn-off), 4 ms (turn-on)
Marking CE
Current state 1 guaranteed >= 2.5 mA (input)
Discrete input voltage type DC
Maximum current per output common 4 A
Height 90 mm
Maximum cable distance between devices unshielded cable: <150 m for output, unshielded cable: <50 m for input
Electrical connection 9 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Input impedance 4.7 kOhm
Environment
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Resistance to fast transients 1 kV for input conforming to IEC 61000-4-4, 2 kV for relay output conforming to IEC 61000-4-4
Operating altitude 0...2000 m
Resistance to electrostatic discharge 6 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV input common mode conforming to IEC 61000-4-5, 2 kV output common mode conforming to IEC 61000-4-5
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Vibration resistance 2 gn at 8.7-150 Hz on panel, 3.5 mm at 5-8.7 Hz on panel, 1 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Shock resistance 15 gn for 11 ms
Pollution degree 2
Storage altitude 0-3000 m
Ambient air temperature for operation 0-55 °C horizontal installation
Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.4 cm
Package 1 Width 7.2 cm
Package 1 Length 10.3 cm
Package 1 Weight 292 g
Unit Type of Package 2 2
Number of Units in Package 2 26
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8092 g
Unit Type of Package 3 3
Number of Units in Package 3 624
Package 3 Height 80 cm
Package 3 Width 120 cm
Package 3 Length 105 cm
Package 3 Weight 203208 g
