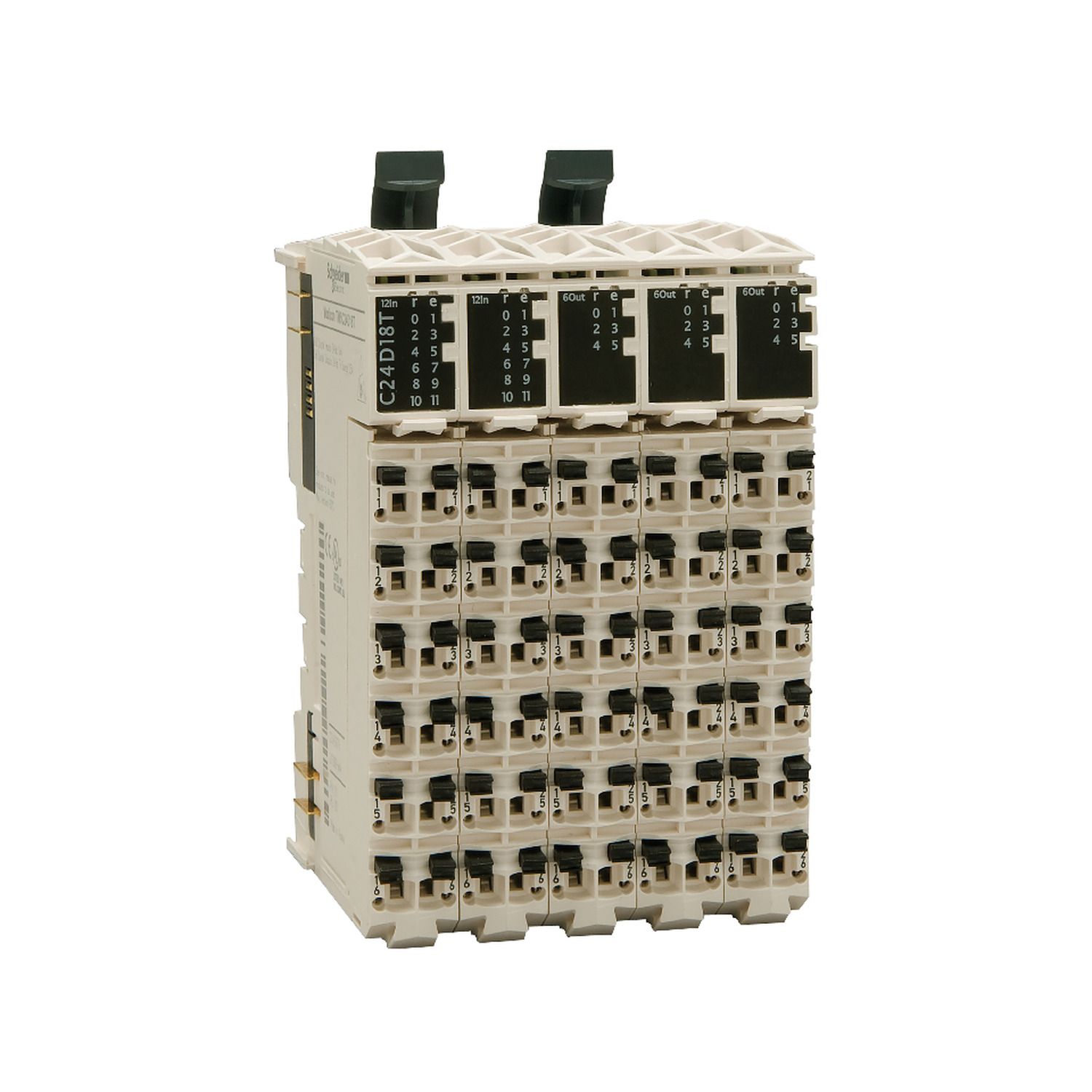

Picture of compact I/O expansion block, Modicon TM5, 36 IO, 24 DI, 12 DO relay
SKU:

TM5C24D12R

compact I/O expansion block, Modicon TM5, 36 IO, 24 DI, 12 DO relay

$1,159.25 INC GST
Available for Shipping : 03-Apr-2025
compact I/O expansion block, Modicon TM5, 36 IO, 24 DI, 12 DO relay
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product environmental
End of life manual
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 24 discrete inputs with sink logic and 12 discrete relay outputs with sink/source logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 2 module(s) x 6 relay output with voltage of 30V DC, 240V AC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM5
Product or component type compact I/O expansion block
Complementary
Voltage state 1 guaranteed >= 15 V
Surge withstand 2 kV common mode 230 V AC conforming to IEC 61000-4-5, 1 kV differential mode 230 V AC conforming to IEC 61000-4-5, 1 kV common mode 24 V DC conforming to IEC 61000-4-5, 0.5 kV differential mode 24 V DC conforming to IEC 61000-4-5
Mechanical durability 20000000 cycles
Isolation no insulation between channels, 500 Vrms AC insulation between channel and bus
Discrete input logic sink
Colour white
Maximum power dissipation in W 4.3 W
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Discrete output current 2 A per output
Input voltage limits 20.4...28.8 V
Marking CE
Response time <= 10 ms from state 1 to state 0 for output, <= 12 ms from state 0 to state 1 for output
Wiring mode 1 wire for discrete input
Output voltage 240 V AC, 30 V DC
Discrete output logic source or sink
Discrete output function 1 NO
Discrete output type relay
Input filtering <= 25 ms configurable by software, <= 100 ms hardware
Enclosure material plastic
Electrical connection removable spring terminal block
Input impedance 6.4 kOhm
Local signalling 12 LEDs (yellow) for output status, 4 LEDs (red) for power supply, 4 LEDs (green) for power supply, 24 LEDs (green) for input status
Discrete input number 24
Discrete output number 12
Number of modules relay output: 2 module(s) x 6 , digital input: 2 module(s) x 12
Analogue input number 0
Input/output number of splitter box 24 I + 12 O
Current consumption 165 mA at 24 V DC input/output, 68 mA at 5 V DC bus
Output voltage limits 184...276 V AC, 24...36 V DC
Input/output number 36
Voltage state 0 guaranteed <= 5 V
Discrete input current 3.75 mA
Discrete input voltage type DC
Discrete input voltage 24 V
Minimum switching current 10 mA at 5 V DC
Environment
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation -10-60 °C (horizontal installation), -10-50 °C (vertical installation)
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude 0...2000 m
Net weight 0.26 kg
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Mounting support DIN rail
Standards UL 508, IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213
Product certifications C-Tick, CSA, GOST-R, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.900 cm
Package 1 Width 9.200 cm
Package 1 Length 11.000 cm
Package 1 Weight 289.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.821 kg
