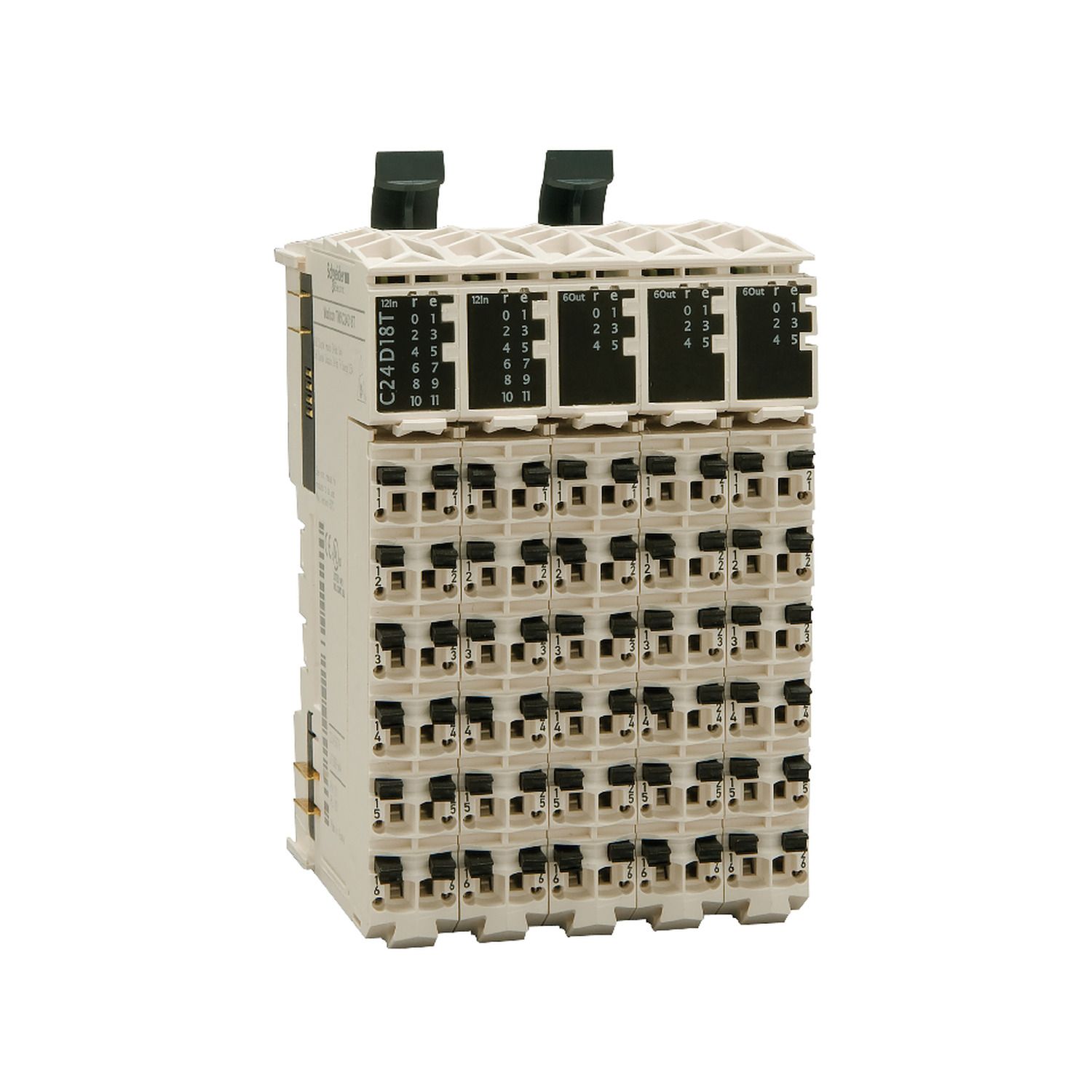

Picture of compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor
SKU:

TM5C24D18T

compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor

$1,472.88 INC GST
Available for Shipping : 03-Apr-2025
compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product environmental
End of life manual
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 3 module(s) x 6 transistor output with voltage of 24V DC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM5
Product or component type compact I/O expansion block
Complementary
Voltage state 1 guaranteed >= 15 V
Max current 9000 mA loads on I/O power segment
Surge withstand 1 kV common mode 24 V DC conforming to IEC 61000-4-5, 0.5 kV differential mode 24 V DC conforming to IEC 61000-4-5
Isolation no insulation between channels, 500 Vrms AC insulation between channel and bus
Discrete input logic sink
Colour white
Maximum power dissipation in W 3.71 W
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Discrete output current 0.5 A per output
Input voltage limits 20.4...28.8 V
Marking CE
Response time <= 300 µs from state 1 to state 0 for output, <= 300 µs from state 0 to state 1 for output
Maximum voltage drop <0.3 V at 500 mA for output
Wiring mode 2-wire for discrete output, 1 wire for discrete input
Output voltage 24 V DC
Discrete output logic source
Discrete output type transistor
Input filtering <= 25 ms configurable by software, <= 100 ms hardware
Enclosure material plastic
Peak output current 9 A
Electrical connection removable spring terminal block
Input impedance 6.4 kOhm
Local signalling 18 LEDs (yellow) for output status, 24 LEDs (green) for input status, 5 LEDs (red) for power supply, 5 LEDs (green) for power supply
Discrete input number 24
Discrete output number 18
Number of modules digital output: 3 module(s) x 6 , digital input: 2 module(s) x 12
Analogue input number 0
Input/output number of splitter box 24 I + 18 O
Current consumption 140 mA at 24 V DC input/output, 70 mA at 5 V DC bus
Output voltage limits 20.4...28.8 V DC
Input/output number 42
Maximum leakage current 5 µA (when switched off) for output
Voltage state 0 guaranteed <= 5 V
Discrete input current 3.75 mA
Discrete input voltage type DC
Discrete input voltage 24 V
Environment
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation -10-60 °C (horizontal installation), -10-50 °C (vertical installation)
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude 0...2000 m
Net weight 0.24 kg
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Mounting support DIN rail
Standards CSA C22.2 No 142, CSA C22.2 No 213, UL 508, IEC 61131-2
Product certifications CSA, GOST-R, cULus, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 9.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 278.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.008 kg
