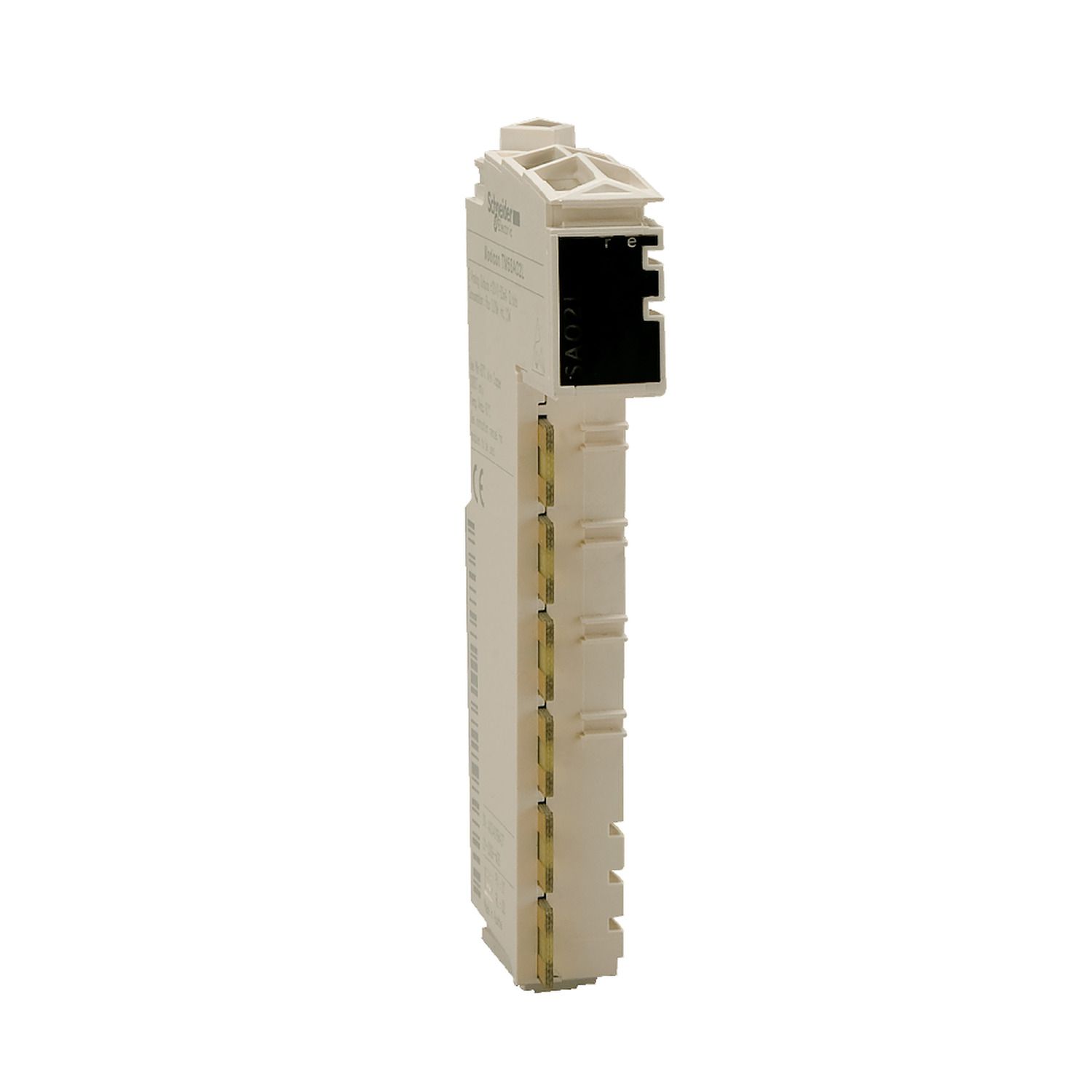

Picture of Analog input module, Modicon TM5, 2I, thermocouple J/K/N/S, 16bits
SKU:

TM5SAI2TH

Analog input module, Modicon TM5, 2I, thermocouple J/K/N/S, 16bits

$979.87
Available for Shipping : 10-Dec-2024
Product Selector
Analog input module, Modicon TM5, 2I, thermocouple J/K/N/S, 16bits
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
End of life manual
Instruction sheet
Catalogue
Product environmental
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 2 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 30mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a thermocouple of J - 210°C to 1200°C, N - 270°C to 1300°C, K - 270°C to 1372°C, S - 50°C to 1768°C input type with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Analogue input type thermocouple - 50...1768 °C with thermocouple S,  thermocouple - 270...1372 °C with thermocouple K,  thermocouple - 270...1300 °C with thermocouple N,  thermocouple - 210...1200 °C with thermocouple J
Analogue input number 2
Analogue input resolution 16 bits
Product or component type analog input module
Range of product Modicon TM5
Complementary
Input filtering 1...66.7 ms configurable by software
Measurement resolution 0.1 °C
Product compatibility motion controller, logic controller
Range compatibility Modicon LMC058, Modicon M258
Temperature coefficient 0.01 %FS/°C, analogue input type: thermocouple
Local signalling 2 LEDs green for input status, 1 LED red for power supply, 1 LED green for power supply
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Colour white
Maximum power dissipation in W 0.73 W
Current consumption 30 mA at 24 V DC input/output, 2 mA at 5 V DC bus
Type of cable shielded cable
Net weight 0.025 kg
Marking CE
Supply internal
Common mode rejection > 70 dB
Non-linearity +/- 0.001 %FS, analogue input type: thermocouple
Measurement error +/- 0.17 % of full scale - 50...1768 °C thermocouple S at 25 °C, +/- 0.11 % of full scale - 270...1372 °C thermocouple K at 25 °C, +/- 0.11 % of full scale - 270...1300 °C thermocouple N at 25 °C, +/- 0.1 % of full scale - 210...1200 °C thermocouple J at 25 °C
[Us] rated supply voltage 24 V DC -15...20 %
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Storage altitude 0-3000 m
Standards IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Product certifications cULus, C-Tick, GOST-R, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 41.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.263 kg
