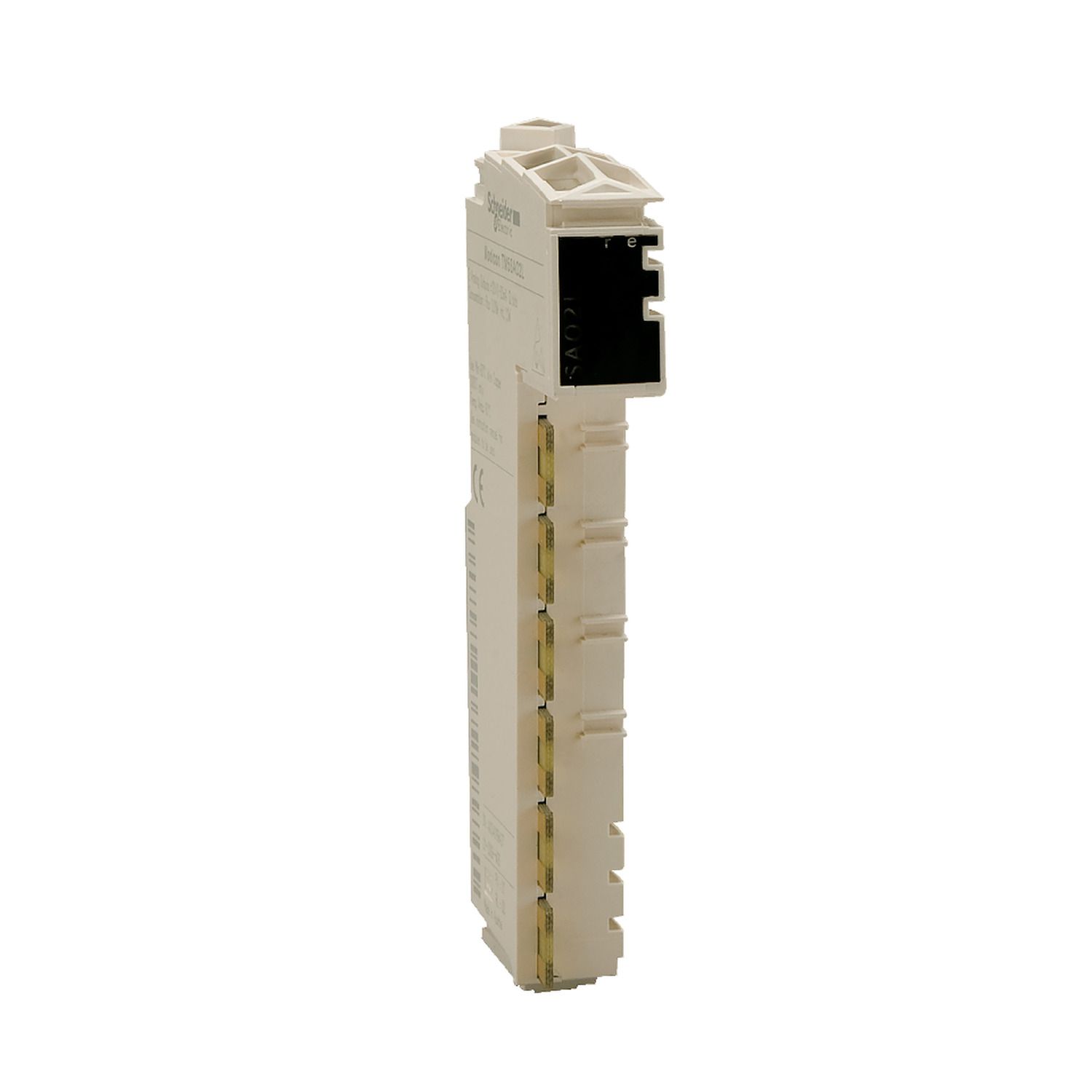

Picture of analog input module, Modicon TM5, 4I, temperature probe PT100, PT1000, 16bits
SKU:

TM5SAI4PH

analog input module, Modicon TM5, 4I, temperature probe PT100, PT1000, 16bits

$1,277.63
Available for Shipping : 10-Dec-2024
Product Selector
analog input module, Modicon TM5, 4I, temperature probe PT100, PT1000, 16bits
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
End of life manual
Instruction sheet
User guide
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 4 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 46mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a Pt 100/Pt 1000 temperature probe of -200°C to 850°C input type with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM5
Analogue input type Pt 100/Pt 1000 temperature probe - 200...850 °C
Analogue input number 4
Analogue input resolution 16 bits
Product or component type analog input module
Complementary
Measurement resolution 0.1 °C
Product compatibility motion controller, logic controller
Temperature coefficient 0.004 %FS/°C, analogue input type: temperature probe
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Colour white
Maximum power dissipation in W 1.11 W
Type of cable shielded cable
Marking CE
Measurement error < 0.037 % of full scale - 200...850 °C Pt 100/Pt 1000 at 25 °C
[Us] rated supply voltage 24 V DC -15...20 %
Range compatibility Modicon M258, Modicon LMC058
Local signalling 4 LEDs green for input status, 1 LED red for power supply, 1 LED green for power supply
Current consumption 46 mA at 24 V DC input/output, 2 mA at 5 V DC bus
Net weight 0.025 kg
Supply internal
Common mode rejection > 95 dB
Non-linearity 0.001 %FS, analogue input type: temperature probe
Environment
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude 0...2000 m
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Standards CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213, UL 508
Product certifications cULus, C-Tick, CSA, GOST-R
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 6.0 cm
Package 1 Length 10.5 cm
Package 1 Weight 41.0 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.977 kg
