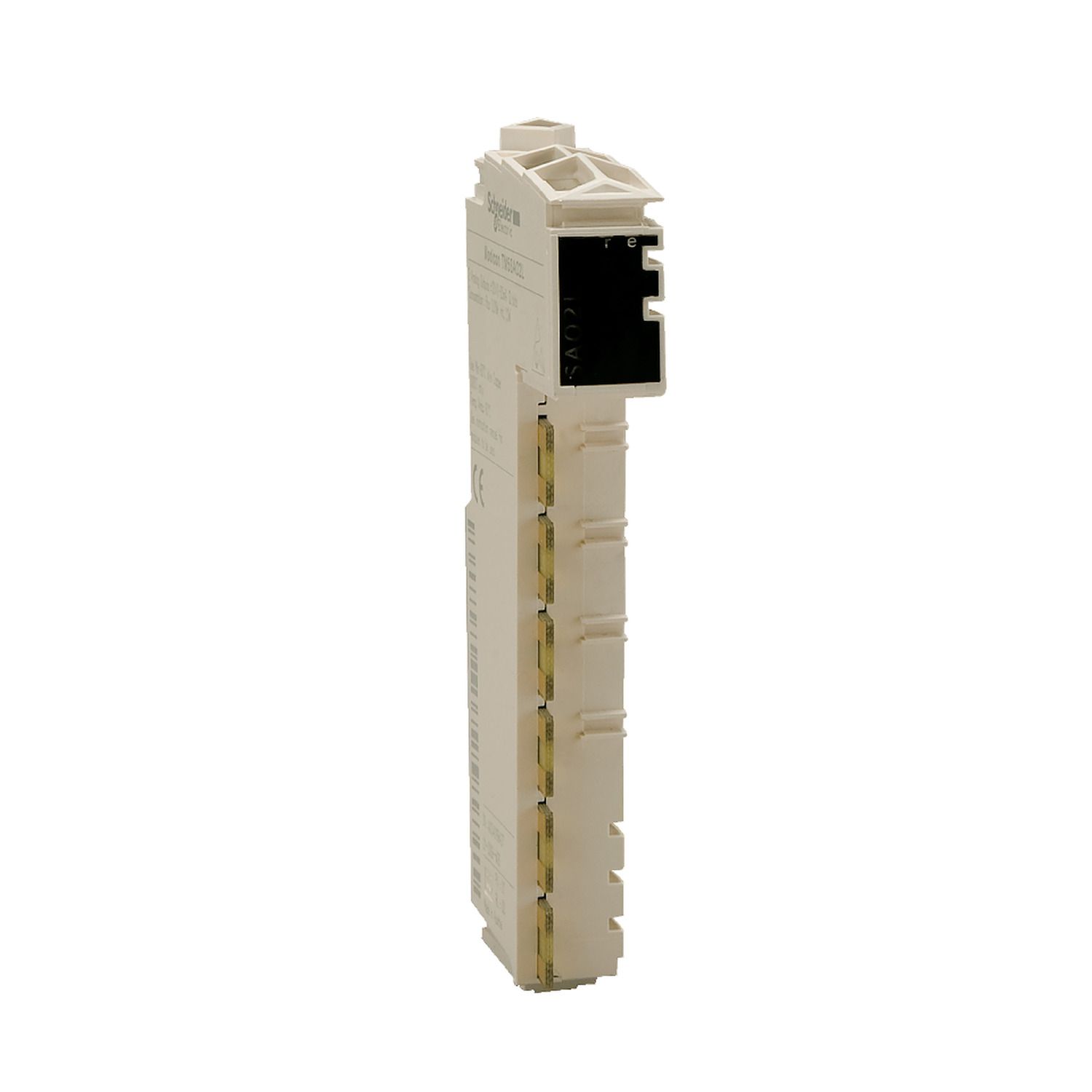

Picture of analog input module, Modicon TM5, 6I, thermocouple J, K, N, S, 16bits
SKU:

TM5SAI6TH

analog input module, Modicon TM5, 6I, thermocouple J, K, N, S, 16bits

Please Contact Sales to buy this Product. click here
Product Selector
analog input module, Modicon TM5, 6I, thermocouple J, K, N, S, 16bits
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
End of life manual
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 6 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 38mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It has a thermocouple of J - 210°C to 1200°C, N - 270°C to 1300°C, K - 270°C to 1372°C, S - 50°C to 1768°C input type with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute nameAttribute value
Main
Analogue input typethermocouple - 50...1768 °C with thermocouple S,  thermocouple - 270...1372 °C with thermocouple K,  thermocouple - 270...1300 °C with thermocouple N,  thermocouple - 210...1200 °C with thermocouple J
Analogue input number6
Analogue input resolution16 bits
Product or component typeanalog input module
Range of productModicon TM5
Complementary
Input filtering1...66.7 ms configurable by software
Measurement resolution0.1 °C
Product compatibilitymotion controller, logic controller
Range compatibilityModicon M258, Modicon LMC058
Temperature coefficient0.01 %FS/°C, analogue input type: thermocouple
Local signalling6 LEDs green for input status, 1 LED red for power supply, 1 LED green for power supply
Isolation500 Vrms AC insulation between channel and bus, no insulation between channels
Colourwhite
Maximum power dissipation in W0.92 W
Current consumption38 mA at 24 V DC input/output, 2 mA at 5 V DC bus
Type of cableshielded cable
Net weight0.025 kg
MarkingCE
Supplyinternal
Common mode rejection> 70 dB
Non-linearity+/- 0.001 %FS, analogue input type: thermocouple
Measurement error+/- 0.17 % of full scale - 50...1768 °C thermocouple S at 25 °C, +/- 0.11 % of full scale - 270...1372 °C thermocouple K at 25 °C, +/- 0.11 % of full scale - 270...1300 °C thermocouple N at 25 °C, +/- 0.1 % of full scale - 210...1200 °C thermocouple J at 25 °C
[Us] rated supply voltage24 V DC -15...20 %
Environment
Operating altitude0...2000 m
Resistance to fast transients2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity5-95 % without condensation
Ambient air temperature for storage-25-70 °C
Surge withstand1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree2 conforming to IEC 60664
Electromagnetic compatibilityEN/IEC 61000-4-6
Disturbance radiated/conductedCISPR 11
Shock resistance15 gn for 11 ms
Vibration resistance3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protectionIP20 conforming to IEC 61131-2
Ambient air temperature for operation0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Storage altitude0-3000 m
StandardsCSA C22.2 No 142, UL 508, CSA C22.2 No 213, IEC 61131-2
Resistance to electromagnetic fields10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Product certificationsC-Tick, cULus, GOST-R, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.0 cm
Package 1 Width6.0 cm
Package 1 Length10.5 cm
Package 1 Weight41.0 g
Unit Type of Package 22
Number of Units in Package 297
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.28 kg
