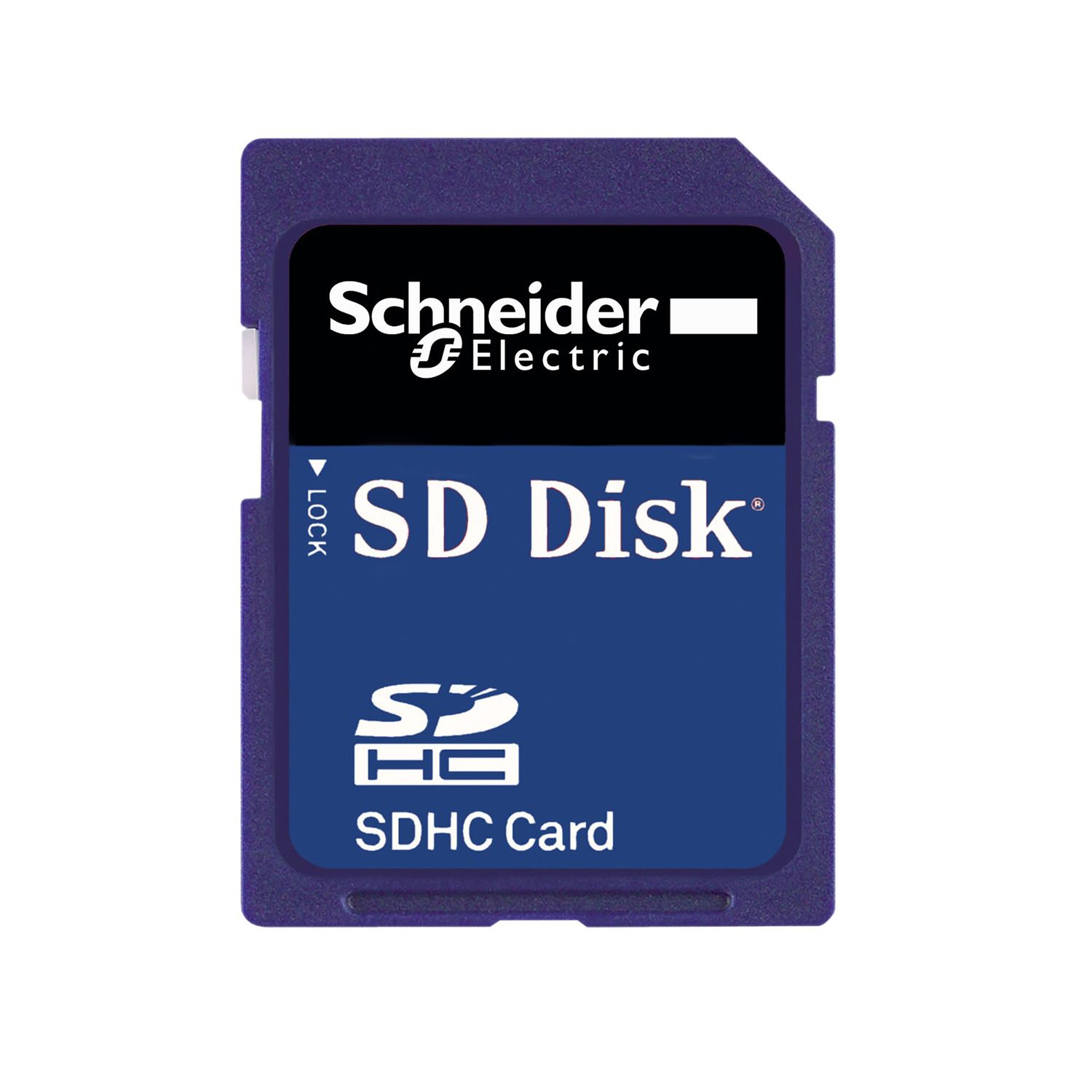

Picture of Modicon M221, Memory card, for M2xx controller
SKU:

TMASD1

Modicon M221, Memory card, for M2xx controller

$145.00
Available for Shipping : 24-Nov-2024
Modicon M221, Memory card, for M2xx controller
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Catalogue
User guide
Product Page Link
Product Data Sheet
This memory card is proposed as an option available for Modicon M221 and M221 Book logic controllers. It s used for backing up and transferring applications, loading firmware, data logging. It is also used for duplicating applications between controllers. It has 256 MB capacity.

Products specifications

Attribute name Attribute value
Main
Memory type flash
Accessory / separate part type SD card
Product compatibility logic controller
Range compatibility Modicon M251, Modicon M221, Modicon M241
Accessory / separate part category separate parts
Memory capacity 256 MB
Range of product Modicon M241, Modicon M251, Modicon M221
Complementary
Product specific application application backup, program transfer
Number of read/write cycles 100000
Data retention time 10 year(s) at 25 °C
Net weight 0.004 kg
MTBF reliability 3000000 H
Environment
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 15 kV in air conforming to IEC 61000-4-2
Relative humidity 0-95 % without condensation
Ambient air temperature for storage -25-85 °C
Vibration resistance 1 gn conforming to IEC 61131-2 2007
Shock resistance 15 gn conforming to IEC 61131-2 2007
Ambient air temperature for operation -10-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 12.000 cm
Package 1 Length 14.500 cm
Package 1 Weight 27.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.684 kg
