SKU:

TM221CE24R

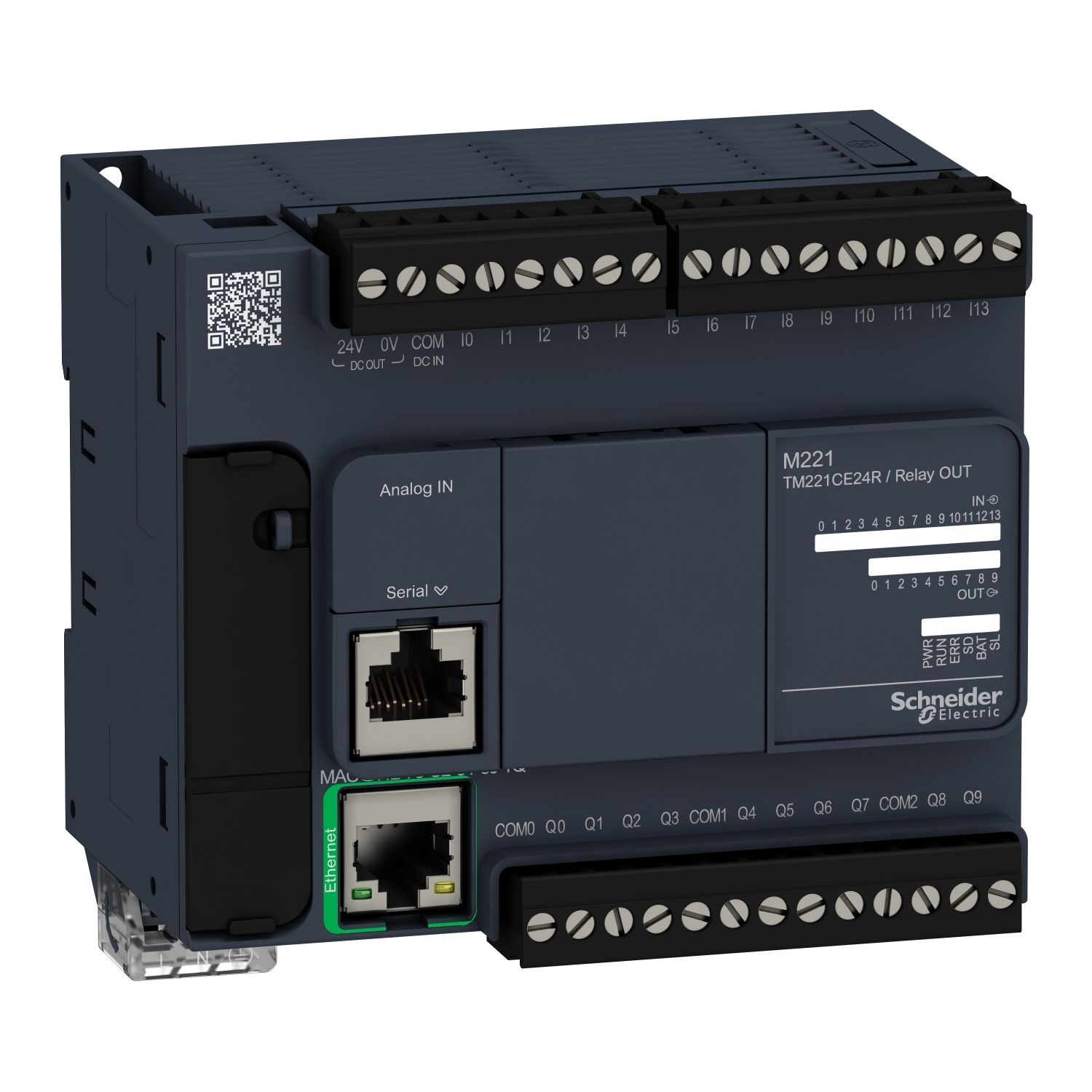

Modicon M221, Logic controller, 24 IO relay Ethernet

$726.04

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Modicon M221, Logic controller, 24 IO relay Ethernet

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Instruction sheet

System user guide

Catalogue

Declaration of conformity

End of life manual

User guide

Product Page Link

Product Data Sheet

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete inputs and 10 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Products specifications

Attribute name	Attribute value
Main
Discrete input number	14 , discrete input conforming to IEC 61131-2 Type 1
[Us] rated supply voltage	100...240 V AC
Discrete output voltage	5...250 V AC, 5...125 V DC
Discrete output current	2 A
Analogue input number	2 at 0...10 V
Range of product	Modicon M221
Discrete output type	relay normally open
Product or component type	logic controller
Discrete output number	10 relay
Complementary
Data storage equipment	2 GB SD card (optional)
Minimum load	1 mA at 5 V DC for relay output
Execution time for 1 KInstruction	0.3 ms for event and periodic task
Electrical durability	300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms), 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles AC-12, 120 V, 240 VA, resistive
Supply voltage limits	85-264 V
Control signal type	pulse/direction, single phase, A/B
Configurable filtering time	12 ms for input, 3 ms for input, 0 ms for input
Power supply output current	0.16-0.16 A 24 V for expansion bus, 0.52-0.52 A 5 V for expansion bus
Discrete I/O number	24
Communication port protocol	Ethernet, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, USB port: USB - SoMachine-Network
Maximum current per output common	7 A at COM 1, 7 A at COM 0, 4 A at COM 2
Communication service	Ethernet/IP adapter, Modbus TCP client, DHCP client, Modbus TCP slave device, Modbus TCP server
Height	90 mm
Maximum cable distance between devices	unshielded cable: <1 m for analog input, unshielded cable: <30 m for digital input, unshielded cable: <30 m for output, shielded cable: <10 m for fast input
Permitted overload on inputs	+/- 13 V DC (permanent) for analog input, +/- 30 V DC for 5 min (maximum) for analog input
Discrete input current	5 mA for fast input, 7 mA for discrete input
Mounting support	plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Absolute accuracy error	+/- 1 % of full scale for analog input
Mechanical durability	20000000 cycles for relay output
Sensor power supply	24-24 V DC at 250 mA supplied by the controller
Execution time per instruction	0.2 µs Boolean
Integrated connection type	Ethernet with RJ45 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface , USB port with mini B USB 2.0 connector
Voltage state 1 guaranteed	>= 15 V for input
Net weight	0.395 kg
Maximum number of I/O expansion module	14 (remote I/O-Architecture), 7 (local I/O-Architecture)
Reset time	1 s
Battery type	BR2032 or CR2032X lithium non-rechargeable
Port Ethernet	10BASE-T/100BASE-TX 1 port with 100 m copper cable
Discrete input voltage	24 V
Exct time for event task	60 µs response time
Discrete input logic	sink or source (positive/negative)
Supply	(serial)serial link supply: 5 V, <200 mA
Insulation	between supply and sensor power supply at 2300 V AC, between Ethernet terminal and internal logic at 500 V AC, between output and internal logic at 2300 V AC, between sensor power supply and internal logic at 500 V AC, between supply and internal logic at 2300 V AC, between output and ground at 1500 V AC, between input and ground at 500 V AC, between sensor power supply and ground at 500 V AC, between supply and ground at 1500 V AC, non-insulated between analogue inputs, non-insulated between analogue input and internal logic, between input and internal logic at 500 V AC
Realtime clock	with
Analogue input resolution	10 bits
Conversion time	1 ms per channel + 1 controller cycle time for analogue input analog input
Memory capacity	256 kB for internal variables RAM, 256 kB for user application and data RAM with 10000 instructions
Maximum size of object areas	512 %KW constant words, 255 %C counters, 8000 %MW memory words, 512 %M memory bits, 255 %TM timers
Voltage state 0 guaranteed	<= 5 V for input
Backup time	1 year at 25 °C (by interruption of power supply)
Marking	CE
Protection type	without protection at 5 A
Transmission rate	480 Mbit/s for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Electrical connection	mini B USB 2.0 connector for a programming terminal, connector, 4 terminal(s) for analogue inputs, terminal block, 3 terminal(s) for connecting the 24 V DC power supply, removable screw terminal block for outputs, removable screw terminal block for inputs
Data backed up	256 kB built-in flash memory for backup of application and data
Switching frequency	20 switching operations/minute with maximum load
Counting input number	4 fast input (HSC mode) at 100 kHz 32 bits
Maximum power consumption in VA	35 VA at 100...240 V without I/O expansion module, 58 VA at 100...240 V with max number of I/O expansion module
Depth	70 mm
Width	110 mm
LSB value	10 mV
Response time	100 µs turn-off, other terminals terminal(s) for input, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input, 35 µs turn-on, other terminals terminal(s) for input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input, 10 ms turn-off for output, 10 ms turn-on for output, 35 µs turn-off, I2...I5 terminal(s) for input
Local signalling	Ethernet network link (yellow) for Link (Link Status), Ethernet network activity (green) for ACT, 1 LED (green) for SL, 1 LED per channel (green) for I/O state, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR
Output voltage limits	277 V AC, 125 V DC
Regulation loop	adjustable PID regulator up to 14 simultaneous loops
Clock drift	<= 30 s/month at 25-25 °C
Discrete input voltage type	DC
Inrush current	40 A
Input impedance	4.9 kOhm for fast input, 100 kOhm for analog input, 3.4 kOhm for discrete input
Network frequency	50/60 Hz
Environment
Resistance to fast transients	1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Surge withstand	0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5
Resistance to electrostatic discharge	4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Ambient air temperature for storage	-25-70 °C
Resistance to magnetic fields	30 A/m 50/60 Hz conforming to IEC 61000-4-8
Immunity to microbreaks	10 ms
Resistance to conducted disturbances	10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Operating altitude	0...2000 m
Storage altitude	0-3000 m
Product certifications	cULus HazLoc, UKCA, CE, RCM, EAC, DNV-GL, ABS, cULus, LR
IP degree of protection	IP20 with protective cover in place
Relative humidity	10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Environmental characteristic	ordinary and hazardous location
Ambient air temperature for operation	-10-35 °C (vertical installation), -10-55 °C (horizontal installation)
Pollution degree	<= 2
Resistance to electromagnetic fields	1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Electromagnetic emission	radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011
Vibration resistance	1 gn at 8.4-150 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 3.5 mm at 5-8.4 Hz on symmetrical rail
Shock resistance	98 m/s² for 11 ms
Standards	ANSI/ISA 12-12-01, IACS E10, CAN/CSA C22.2 No. 213, UL 508, IEC 61131-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.156 cm
Package 1 Width	14.152 cm
Package 1 Length	15.681 cm
Package 1 Weight	650.0 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	29.9 cm
Package 2 Width	39.4 cm
Package 2 Length	57.5 cm
Package 2 Weight	14.171 kg
Unit Type of Package 3	3
Number of Units in Package 3	240
Package 3 Height	105.0 cm
Package 3 Width	120.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	182 kg
