Picture of Modicon M221, Analogue output cartridge, 2 analog voltage outputs, I/O extension
SKU:

TMC2AQ2V

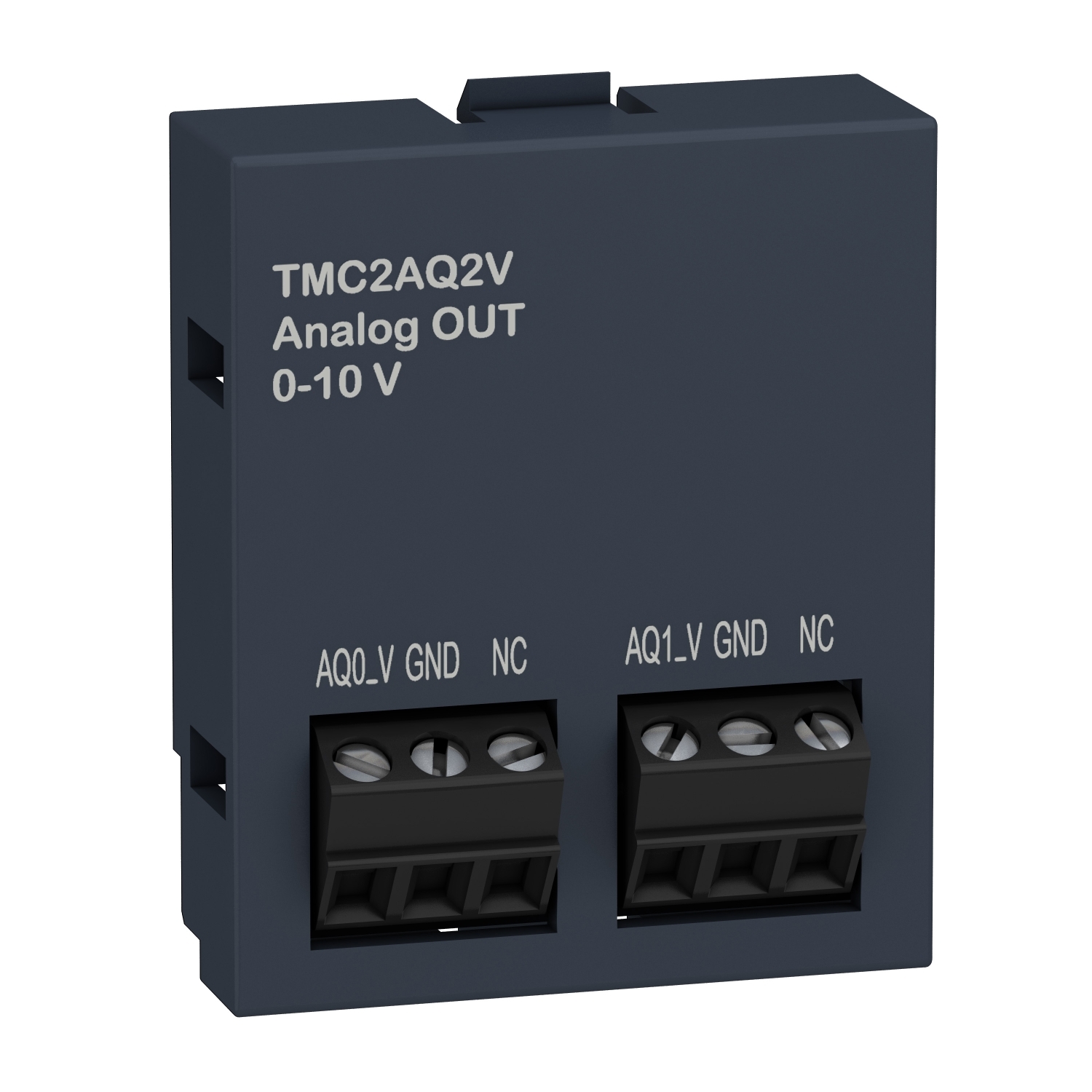

Modicon M221, Analogue output cartridge, 2 analog voltage outputs, I/O extension

$181.40
Available for Shipping : 24-Nov-2024
Product Selector
Modicon M221, Analogue output cartridge, 2 analog voltage outputs, I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue output cartridge provides 2 outputs with 12bit output resolution. The analogue output voltage ranges from 0V to 10V. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue output and internal logic. It is furnished with screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Product or component type analogue output cartridge
Range of product Modicon M221
Complementary
Repeat accuracy +/- 0.4 %FS
Insulation non-insulated between analogue output and internal logic
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Load impedance ohmic >= 2 kOhm
Analogue output number 2
Stabilisation time 40 ms
Temperature drift +/- 0.02 %FS/°C
Analogue output resolution 12 bits
Absolute accuracy error +/- 0.3 % of full scale at 25 °C, +/- 1 % of full scale
Type of cable twisted shielded pairs cable
Net weight 0.015 kg
LSB value 2.44 mV 0...10 V voltage
Non-linearity +/- 0.01 %FS
Analogue output type voltage: 0...10 V
Load type resistive
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for output
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 7.0 cm
Package 1 Length 4.6 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.356 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 75 kg
