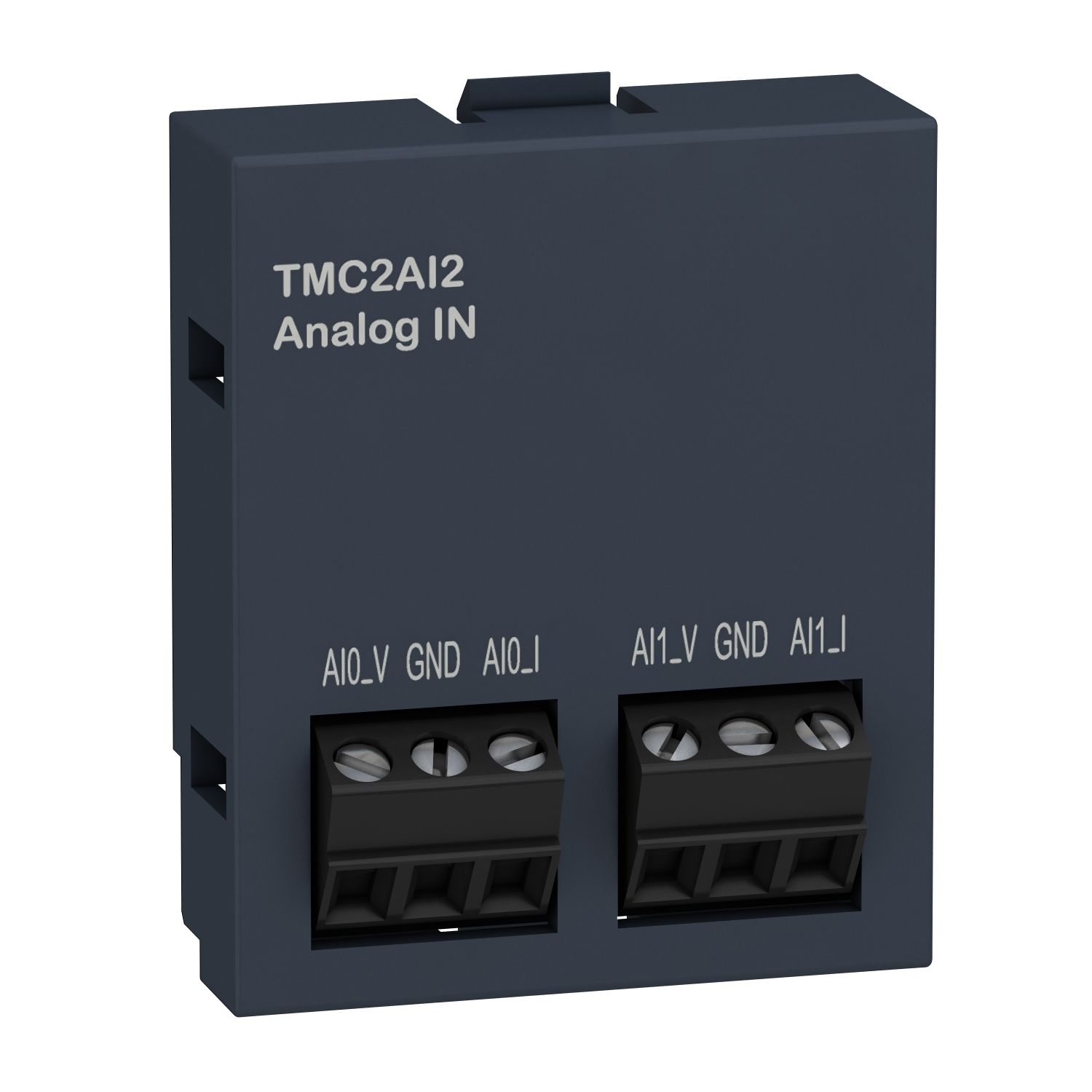

Picture of Modicon M221, Analogue input cartridge, 2 analog inputs, I/O extension
SKU:

TMC2AI2

Modicon M221, Analogue input cartridge, 2 analog inputs, I/O extension

$181.40
Available for Shipping : 24-Nov-2024
Product Selector
Modicon M221, Analogue input cartridge, 2 analog inputs, I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Analogue input number 2
Product or component type analogue input cartridge
Range of product Modicon M221
Complementary
Analogue input type voltage 0...10 V,  current 0...20 mA,  current 4...20 mA
Repeat accuracy +/- 0.5 %FS
Sampling duration 10 ms
Insulation non-insulated between analogue input and internal logic
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Temperature drift +/- 0.02 %FS/°C
Absolute accuracy error +/- 1 % of full scale, +/- 0.1 % of full scale at 25 °C
Type of cable twisted shielded pairs cable
Net weight 0.015 kg
Analogue input resolution 12 bits
Permissible continuous overload 40 mA, analogue input type: current, 13 V, analogue input type: voltage
LSB value 3.91 µA 4...20 mAcurrent, 4.88 µA 0...20 mAcurrent, 2.44 mV 0...10 Vvoltage
Non-linearity +/- 0.01 %FS
Input impedance >= 1 MOhm voltage, <= 250 Ohm current
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.594 cm
Package 1 Width 4.692 cm
Package 1 Length 7.059 cm
Package 1 Weight 30.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.31 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 111 kg
