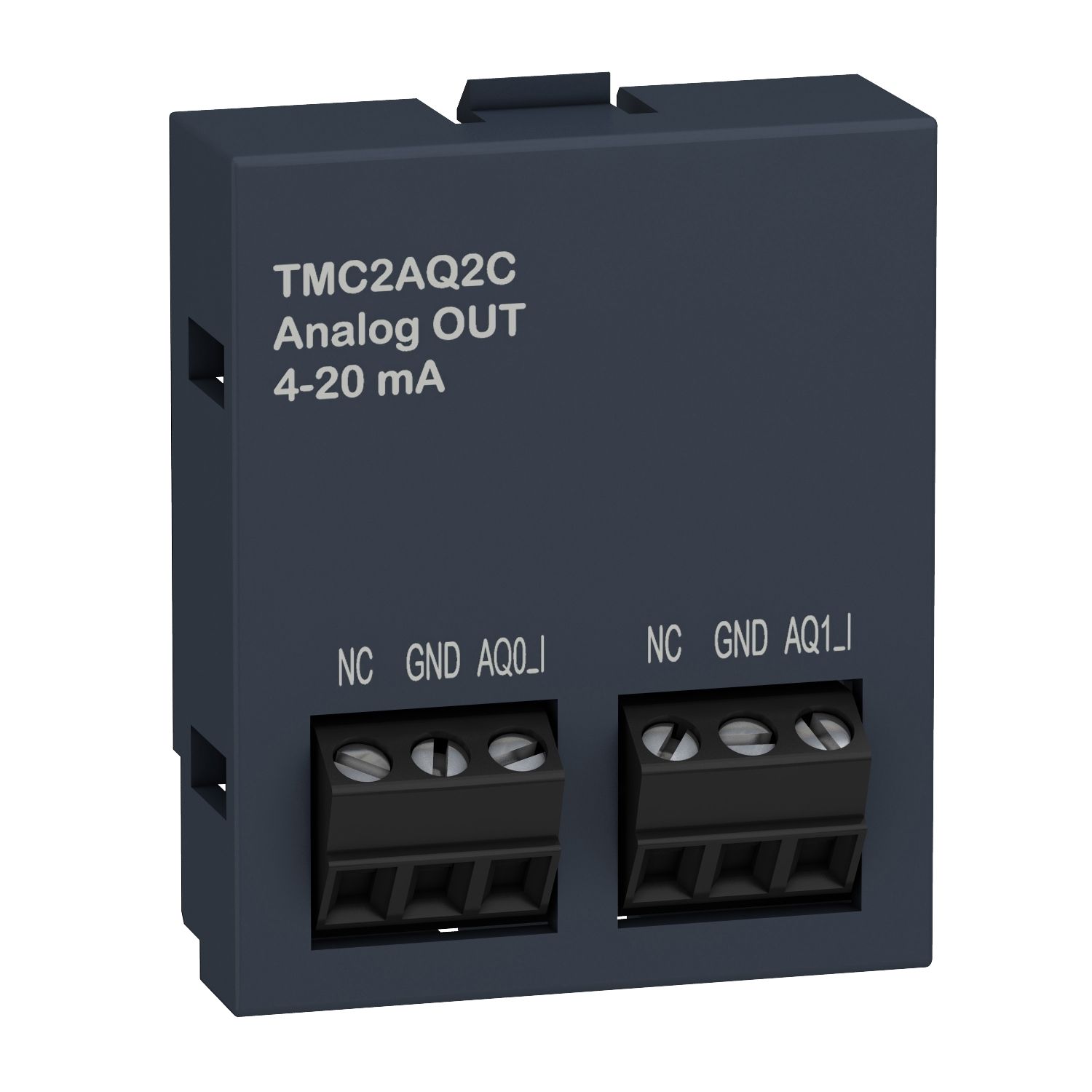

Picture of Modicon M221, Analogue output cartridge, 2 analog current outputs, I/O extension
SKU:

TMC2AQ2C

Modicon M221, Analogue output cartridge, 2 analog current outputs, I/O extension

$181.40
Available for Shipping : 28-Nov-2024
Product Selector
Modicon M221, Analogue output cartridge, 2 analog current outputs, I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
User guide
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Range of product Modicon M221
Product or component type analogue output cartridge
Complementary
Insulation non-insulated between analogue output and internal logic
Load impedance ohmic <= 500 Ohm
Analogue output number 2
Temperature drift +/- 0.02 %FS/°C
Type of cable twisted shielded pairs cable
Load type resistive
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for output
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
Repeat accuracy +/- 0.4 %FS
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Stabilisation time 40 ms
Analogue output resolution 12 bits
Absolute accuracy error +/- 0.3 % of full scale at 25 °C, +/- 1 % of full scale
Net weight 0.015 kg
LSB value 3.91 µA 4...20 mA current
Non-linearity +/- 0.01 %FS
Analogue output type current: 4...20 mA
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.56 cm
Package 1 Width 5.08 cm
Package 1 Length 6.86 cm
Package 1 Weight 40 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.364 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 118 kg
