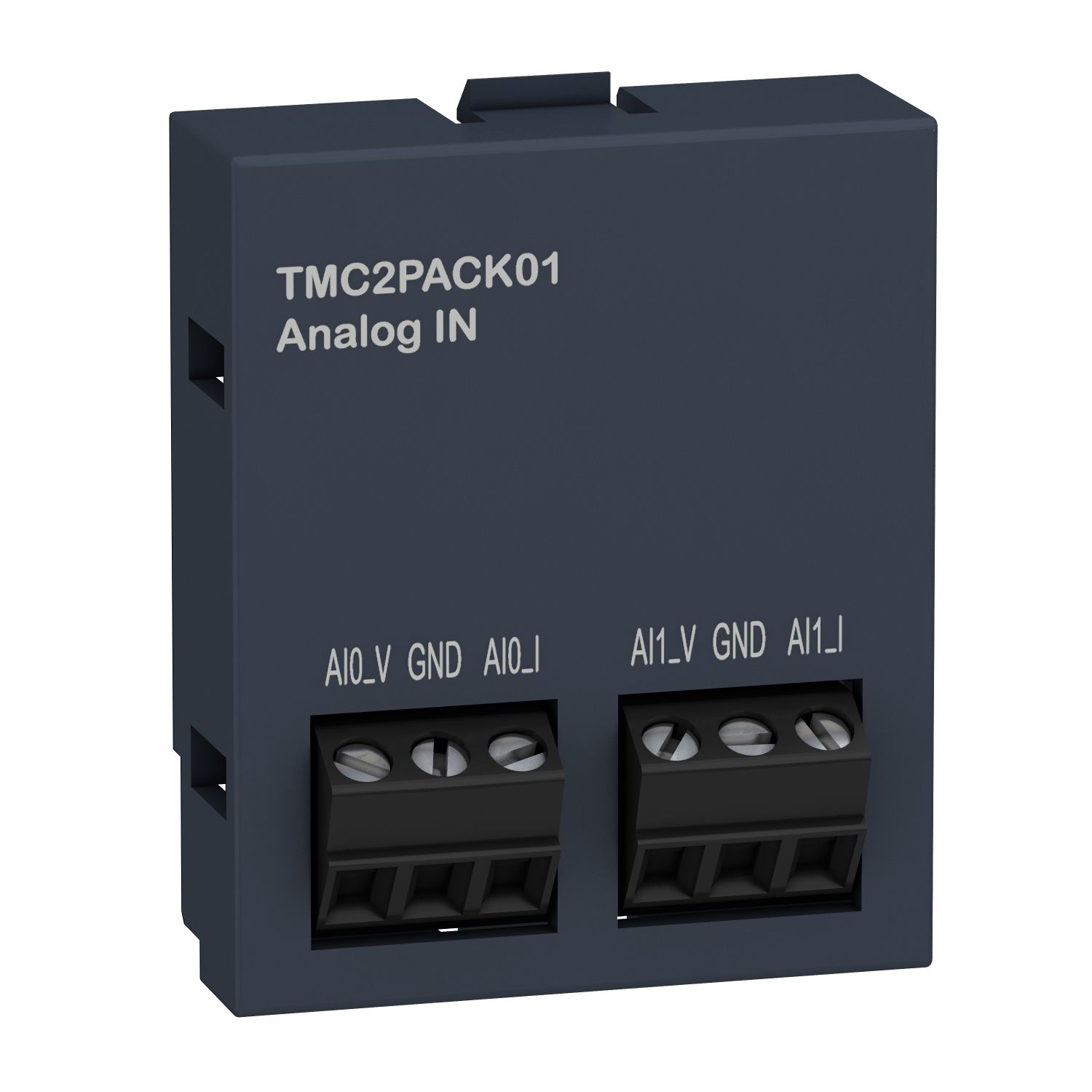

Picture of Modicon M221, Analogue input cartridge, packaging 2 analog inputs, I/O extension
SKU:

TMC2PACK01

Modicon M221, Analogue input cartridge, packaging 2 analog inputs, I/O extension

$200.75
Available for Shipping : 11-Feb-2025
Product Selector
Modicon M221, Analogue input cartridge, packaging 2 analog inputs, I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Product specific application packaging
Analogue input number 2
Product or component type analogue input cartridge
Range of product Modicon M221
Complementary
Analogue input type voltage 0...10 V,  current 0...20 mA,  current 4...20 mA
Repeat accuracy +/- 0.5 %FS
Sampling duration 10 ms
Insulation non-insulated between analogue input and internal logic
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Temperature drift +/- 0.02 %FS/°C
Absolute accuracy error +/- 1 % of full scale, +/- 0.1 % of full scale at 25 °C
Type of cable twisted shielded pairs cable
Net weight 0.015 kg
Analogue input resolution 12 bits
Permissible continuous overload 40 mA, analogue input type: current, 13 V, analogue input type: voltage
LSB value 3.91 µA 4...20 mAcurrent, 4.88 µA 0...20 mAcurrent, 2.44 mV 0...10 Vvoltage
Non-linearity +/- 0.01 %FS
Input impedance >= 1 MOhm voltage, <= 250 Ohm current
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.56 cm
Package 1 Width 4.83 cm
Package 1 Length 6.86 cm
Package 1 Weight 40 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.305 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 75 kg
