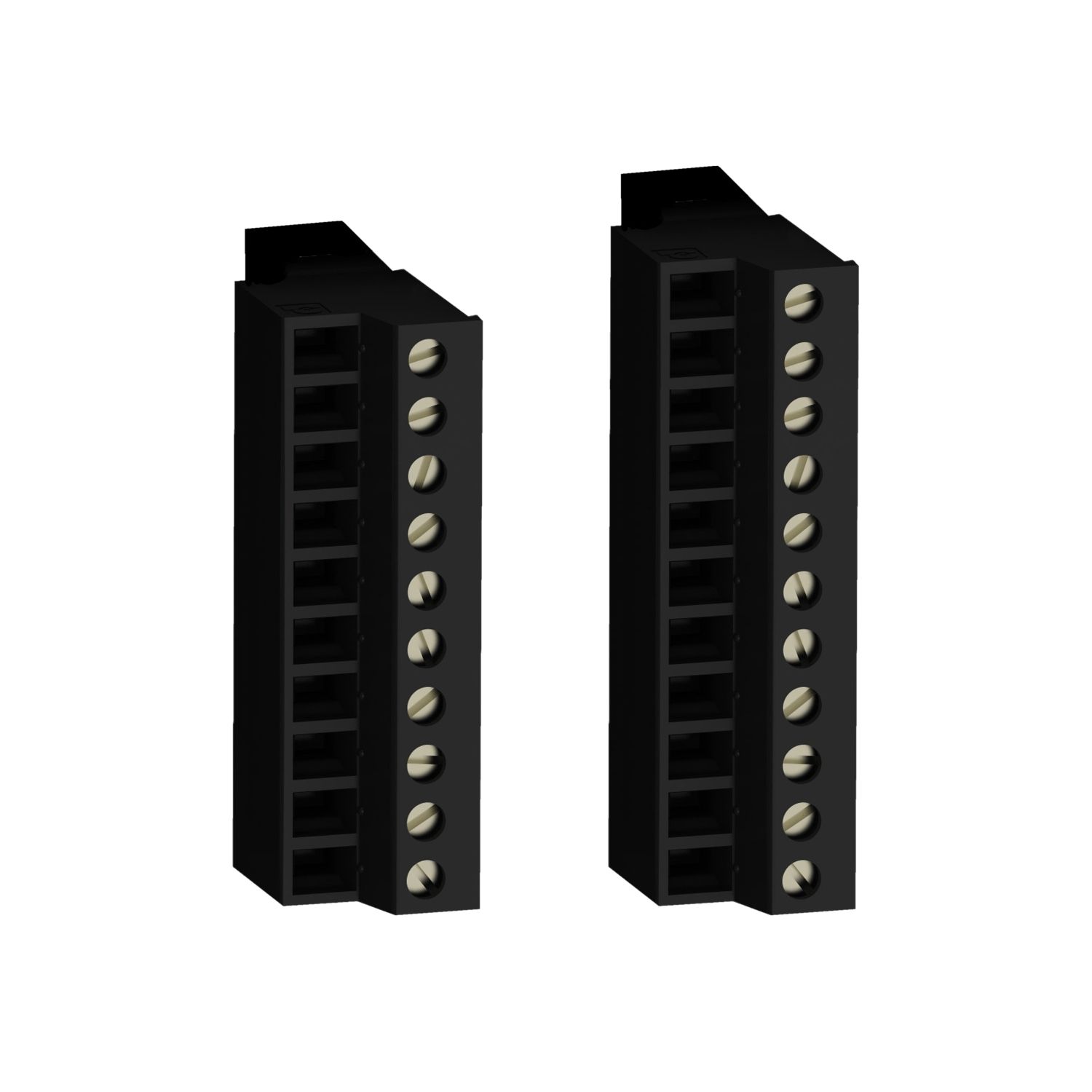

Picture of Modicon M221, Connector set, for M221M and TM3 I/O
SKU:

TMAT2MSET

Modicon M221, Connector set, for M221M and TM3 I/O

$172.55 INC GST
Available for Shipping : 19-Jan-2026
Modicon M221, Connector set, for M221M and TM3 I/O
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
User guide
Catalog
Product Page Link
Product Data Sheet
connector set for M221M and TM3 - IO This connector set is proposed as a spare part available for Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is used to connect the inputs/outputs of Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is composed of 8 removable connectors with screw terminals used to equip a Modicon M221 Book logic controller and the digital I/O of Modicon TM3 I/O expansion modules. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type screw terminal block
Product or component type terminal block
Accessory / separate part category connection accessories
Complementary
Accessory / separate part destination Modicon TM3, Modicon M221
Product compatibility logic controller, discrete I/O module
Number of connectors 8 terminal block connector(s)
Range compatibility Modicon M221, Modicon TM3
Net weight 0.127 kg
Electrical connection removable screw terminal block, 11 terminal(s)for inputs/outputs (pitch 3.81 mm),  removable screw terminal block, 10 terminal(s)for inputs/outputs (pitch 3.81 mm)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 5.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 120.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.005 kg
