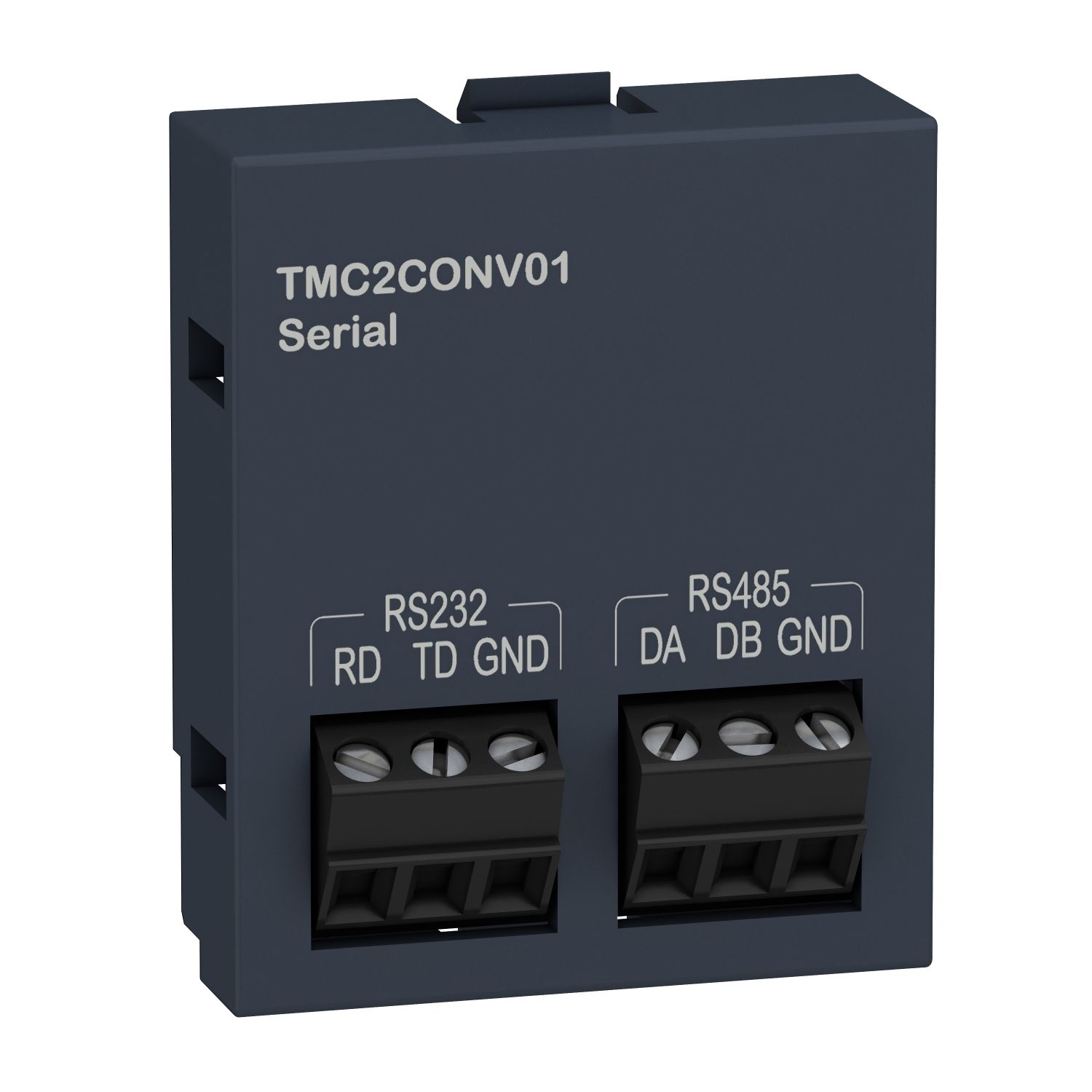

Picture of Modicon M221, Serial line cartridge, conveying 1 I/O extension
SKU:

TMC2CONV01

Modicon M221, Serial line cartridge, conveying 1 I/O extension

$200.75
Available for Shipping : 18-Feb-2025
Product Selector
Modicon M221, Serial line cartridge, conveying 1 I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
cartridge M221 - conveying 1 serial line - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master - slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Range of product Modicon M221
Product specific application conveying applications
Product or component type serial line cartridge
Complementary
Insulation non-insulated between lines and internal logic
Communication port protocol non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Height 41 mm
Depth 15 mm
Width 35 mm
Integrated connection type non isolated serial link - screw terminal block for RS485, non isolated serial link - screw terminal block for RS232
Net weight 0.015 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 4.6 cm
Package 1 Length 7.0 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.68 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 57 kg
